Asus Z87-A

Motherboard

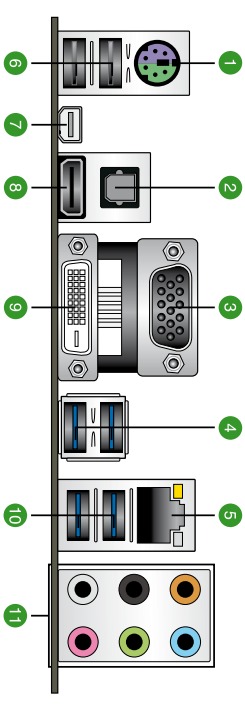

[ Rear Ports ][ Schematic ]

Asus Z87-A Picture 24099Asus Z87-A Picture 24098Asus Z87-A Picture 24298Asus Z87-A Picture 24297
Model: Asus Z87-A

Specifications:
spacer
Socket  1150
CPU Compatibility  Intel Socket 1150 for 4th Generation Processors
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  Z87
Front Side Bus  Direct Media Interface
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111GR Gigabit LAN controller
Audio Controller  Realtek ALC892 8-channel high definition audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  1024 MB
Maximum DVI Resolution   1920x1200
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   3840x2400
DVI  1
VGA  1
HDMI  1
Mini DisplayPort  1
External Connections
USB 2.0  2
USB 3.0  4
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Internal Connections
USB 2.0  3 (providing 6 ports)
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  6
Serial (Com)  1
TPM (module sold separately)  1
SATA Controllers
SATA III 6.0Gbps Controller 1  6 port - Intel Z87
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 3.0 x16
Slot 3  PCI
Slot 4  PCI Express 2.0 x1
Slot 5  PCI Express 3.0 x8 in a x16 size
Slot 6  PCI
Slot 7  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  223.5 mm (8.8 in)

-PCI-E 3.0 x16 slots run at single x16/- or x8/x8 mode




with the Asus Z87-A.
