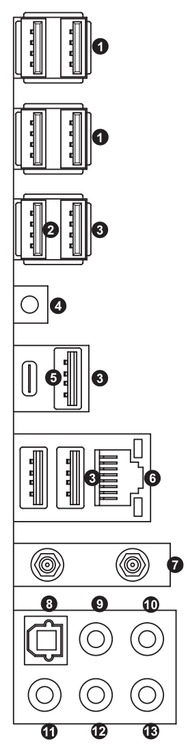

Gigabyte TRX40 AORUS PRO WIFI Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
:
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.

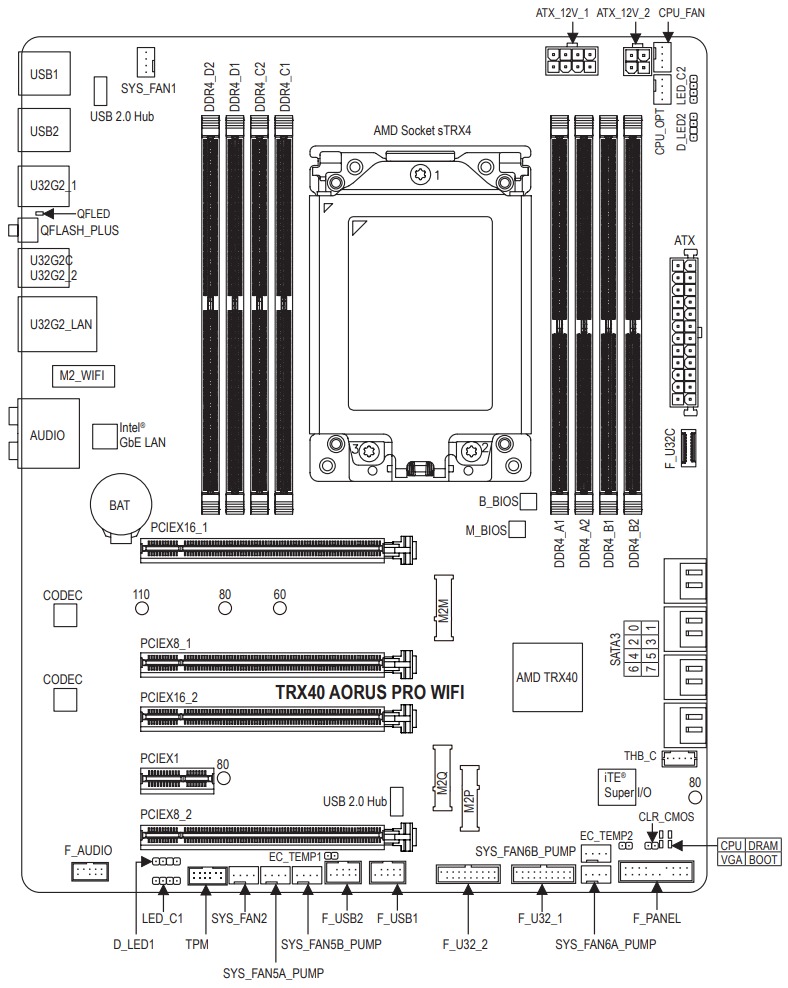

Gigabyte TRX40 AORUS PRO WIFI Schematic
A wide range of connectivity is provided as well: nine standard USB ports, one of the new USB Type C, gigabit Ethernet, WiFi, Bluetooth, and both analog and digital audio. Internally it has eight SATA ports and three M.2 connectors, with included heatsinks, allowing for a flexible array of storage options.
It is unfortunate that this motherboard doesn't support quad GPUs, but for many applications the new Threadripper processors are amazing - and many of the programs where it excels don't need multi-GPU support anyway.

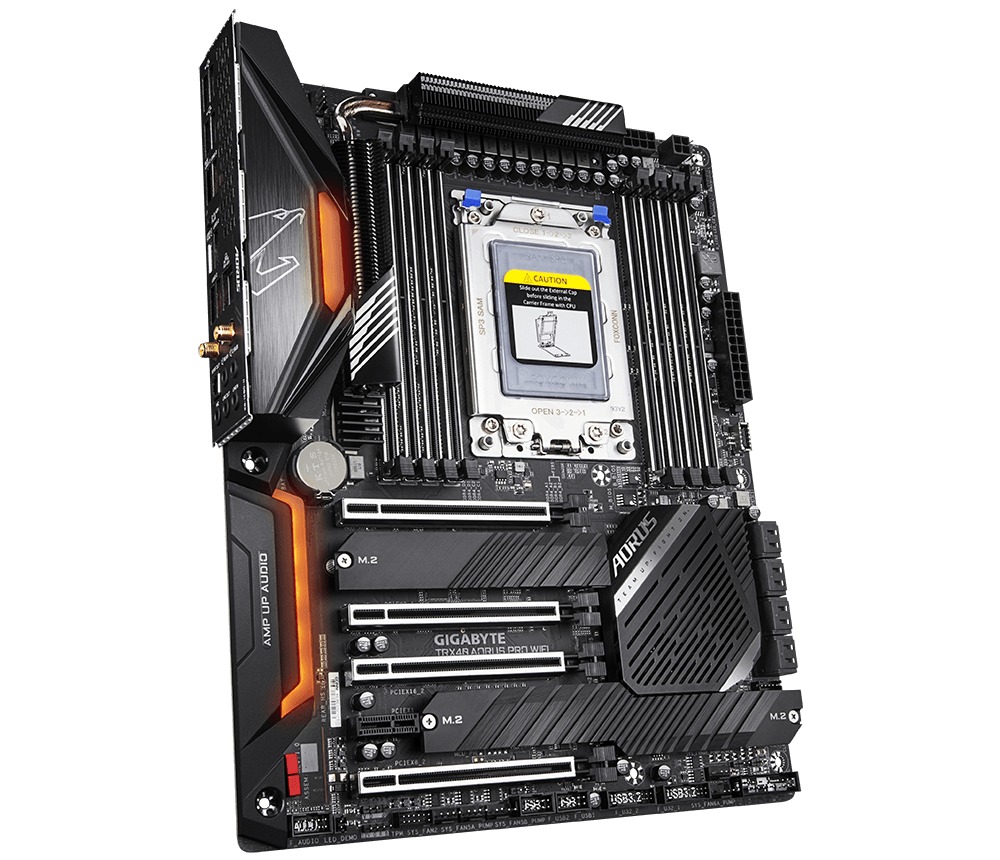

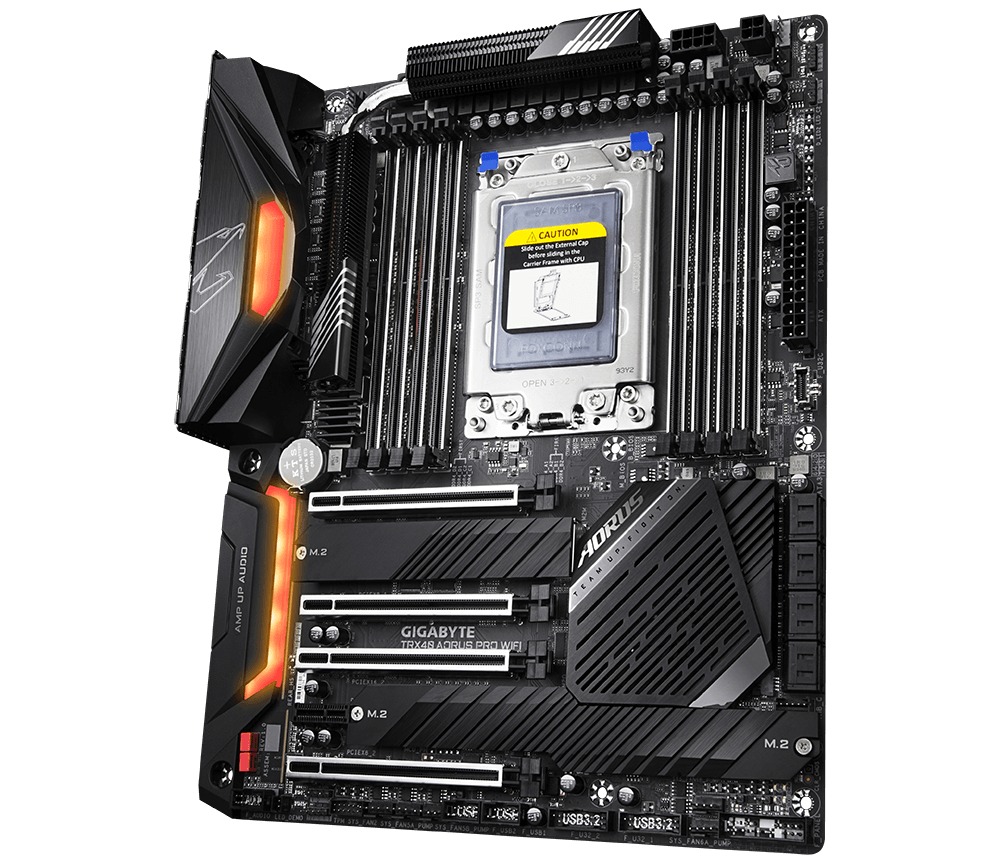

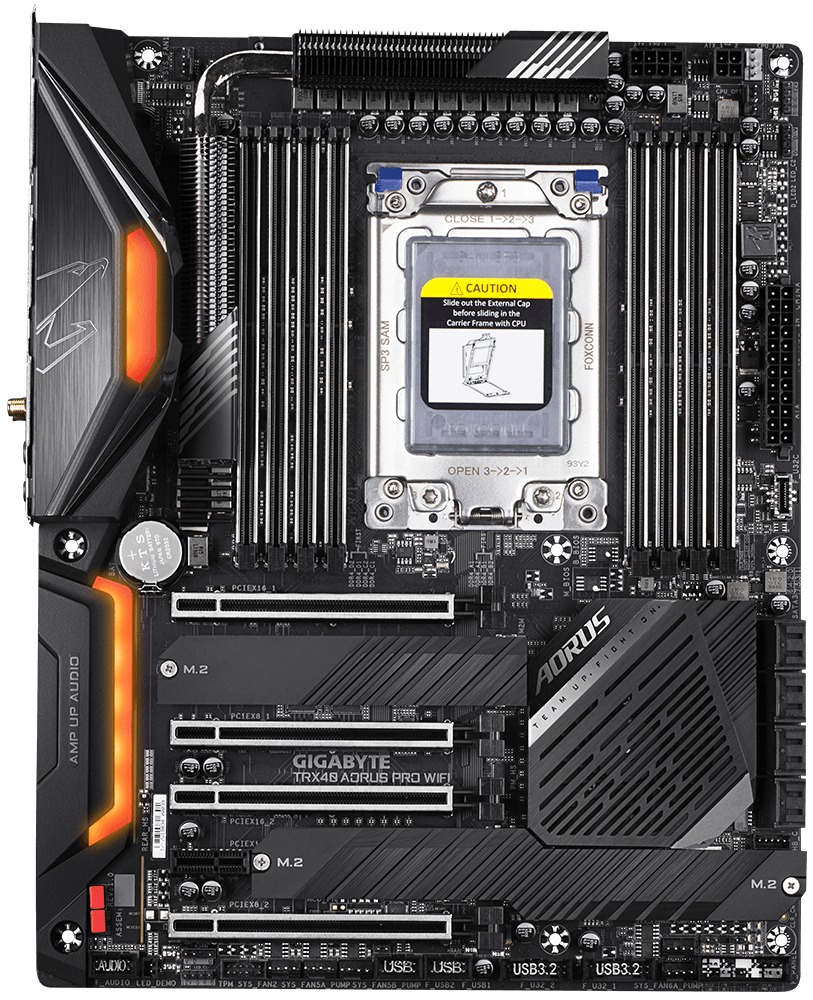

Model: Gigabyte TRX40 AORUS PRO WIFI
Specifications
| Socket | sTRX4 |
| CPU Compatibility | Threadripper 3 |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | TRX40 |
| Network Connectivity | Gigabit Networking + WiFi 6 |
| Network Controller | Intel I211-AT + Intel AX200 |
| Audio Controller | Onboard Realtek ALC1220-VB HD Audio |
| Cooling System | Heatsink and Fan |
| Number of Fans | 2 |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 3200 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 256 GB |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 5 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 3 |
| M.2 Support | 2x 80mm NVMe (Gen4) + SATA, 1x 60-110mm NVMe (Gen4) + SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | Gigabyte GC-TPM2.0_S 2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | TRX40 (providing 8 ports) |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 4.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 4.0 x8 in a x16 size |
| Slot 5 | PCI Express 4.0 x16 |
| Slot 6 | PCI Express 4.0 x1 |
| Slot 7 | PCI Express 4.0 x8 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (5.0) |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 224 mm (8.8 in) |
