Gigabyte Z490I Aorus Ultra

Motherboard

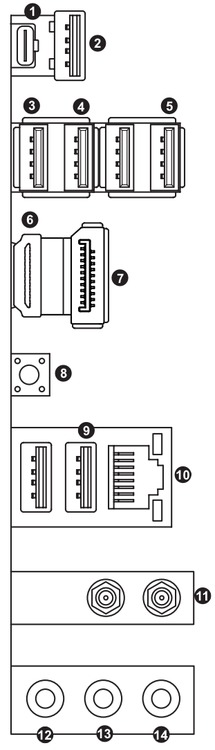

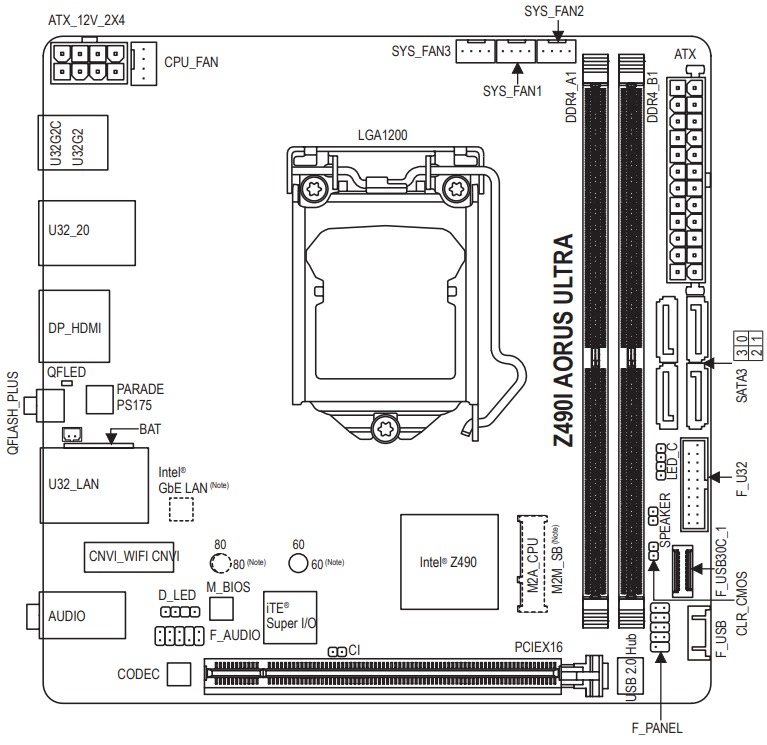

[ Rear Ports ][ Schematic ]

Gigabyte Z490I Aorus Ultra Picture 62924Gigabyte Z490I Aorus Ultra Picture 62925Gigabyte Z490I Aorus Ultra Picture 62926Gigabyte Z490I Aorus Ultra Picture 62929Gigabyte Z490I Aorus Ultra Picture 62928

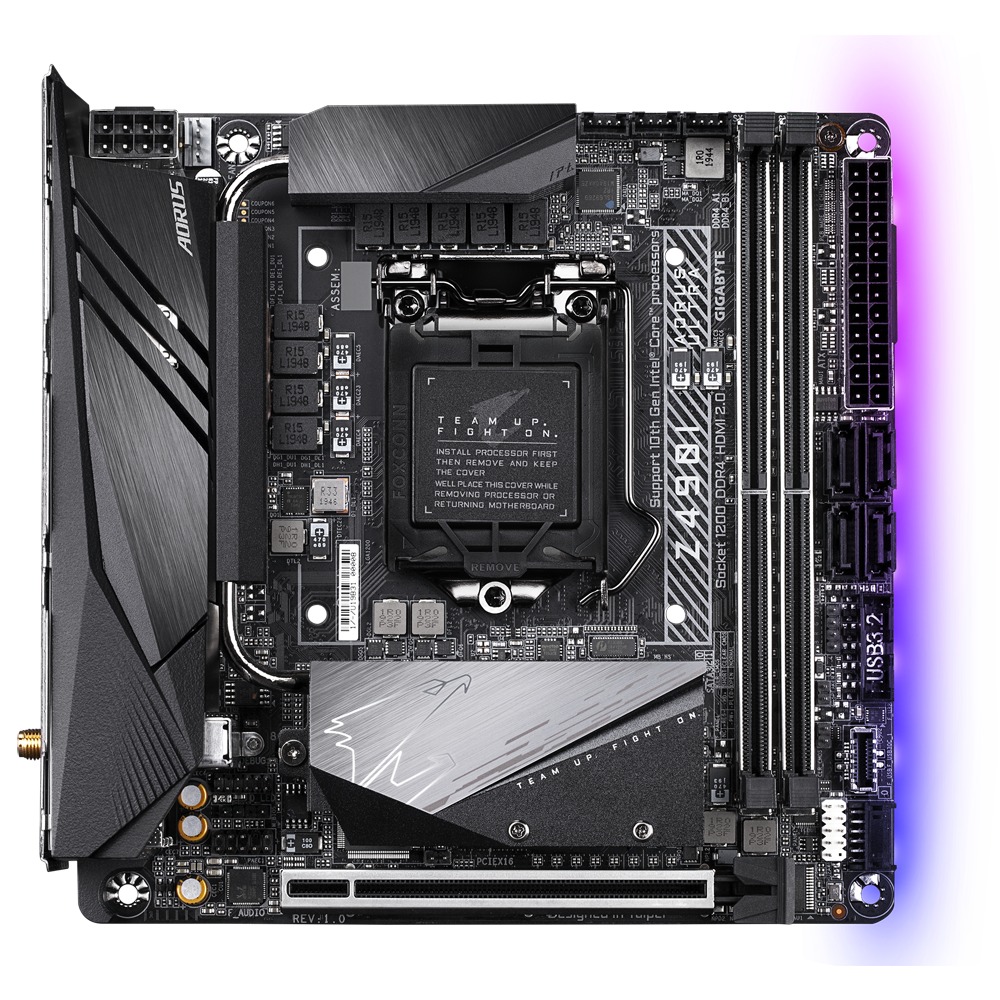

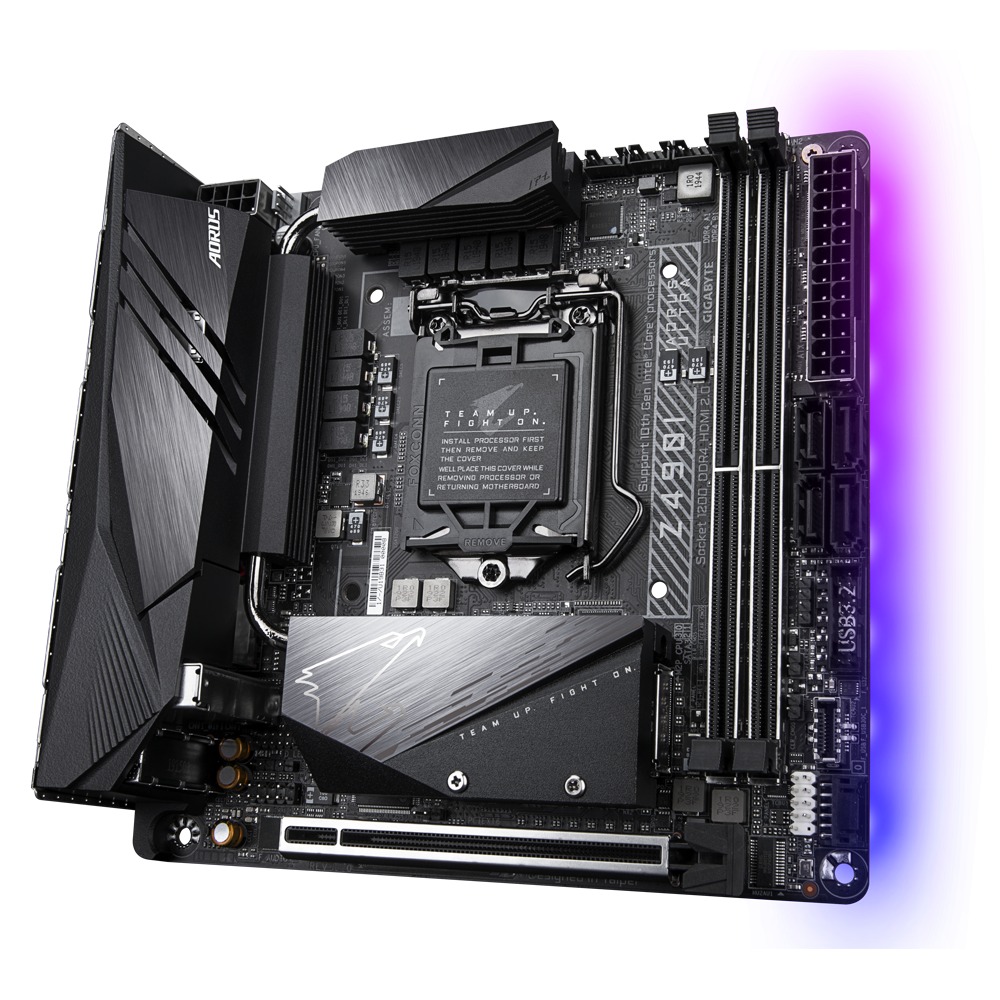

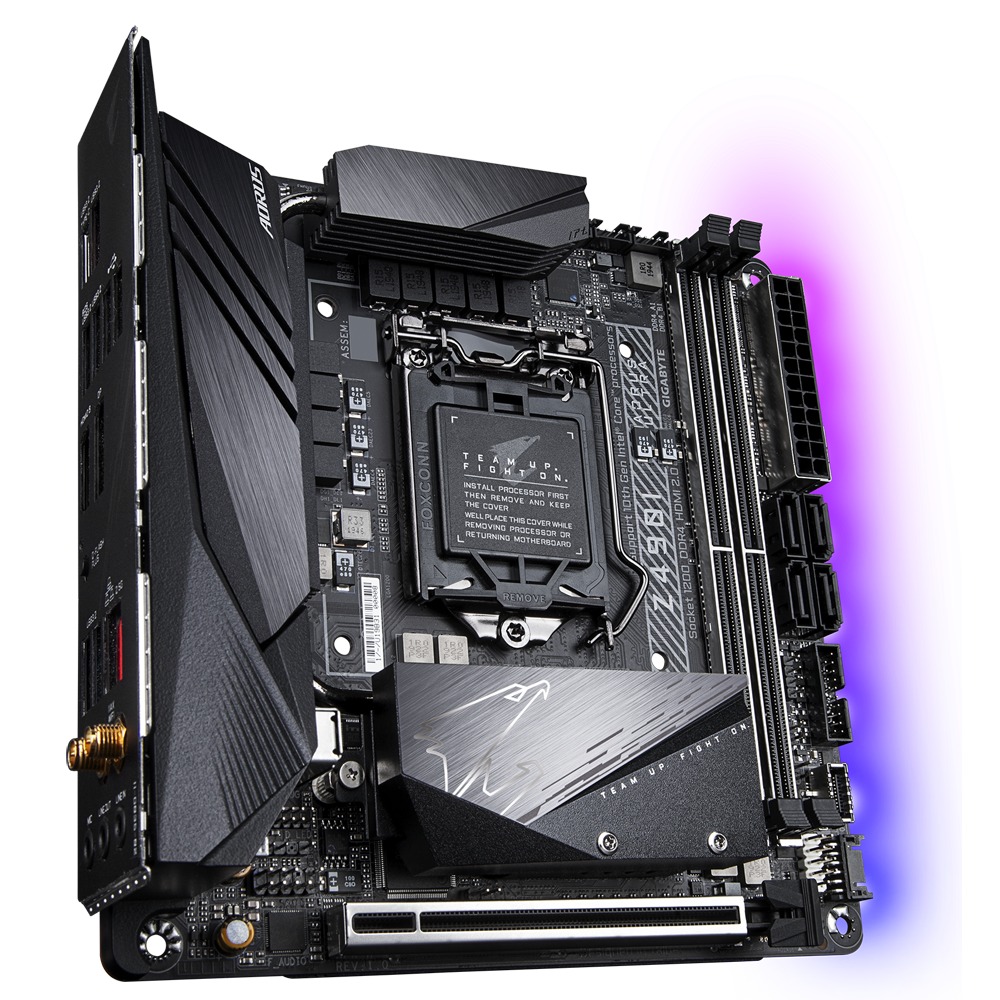

The Gigabyte Z490I Aorus Ultra is a compact, ITX form factor motherboard for 10th-generation Core series processors. Despite its small size, it packs a lot of features and connectivity. Inside, it offers two full-size memory slots, four SATA ports, two M.2 connectors, and a PCI-Express x16 slot that can be used for a full size GPU or other expansion card (provided the chassis is large enough). Externally, the board provides a wide range of connections: audio input / output, WiFi 6, Bluetooth 5.0, 2.5Gb Ethernet, and eight total USB ports, including one USB Type C. There are also two video outputs, HDMI and DisplayPort, thanks to the Intel graphics built into the CPU.
Model: Gigabyte Z490I AORUS ULTRA (rev. 1.x)

Specifications:
spacer
Socket  1200
CPU Compatibility  Comet Lake-S
Form Factor  Mini-ITX
Chipset Manufacturer  Intel
Chipset  Z490
Front Side Bus  DMI 3.0
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Intel I225-V + Intel AX201
Audio Controller  Onboard Realtek ALC1220-VB HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2933 MHz
Number of Slots  2
Maximum Size per Slot  32 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Dependant
Maximum Resolution  4096 x 2304
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2304
HDMI  1
HDMI Version  2.0
DisplayPort  1
DisplayPort Version  1.4
External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  4
USB 3.2 Gen 2 (USB 3.1)  1
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  4
M.2 Connector  2
M.2 Support  2x 60-80mm NVMe & SATA
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel Z490
Expansion Slots
Slot 1  PCI Express 3.0 x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0/1/10/5
Bluetooth  Yes (5.0)
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  170 mm (6.7 in)
Width  170 mm (6.7 in)

Warranty:

3 Years




Configure a small form factor PC with the Gigabyte Z490I Aorus Ultra.
