Gigabyte Z590 VISION D

Motherboard

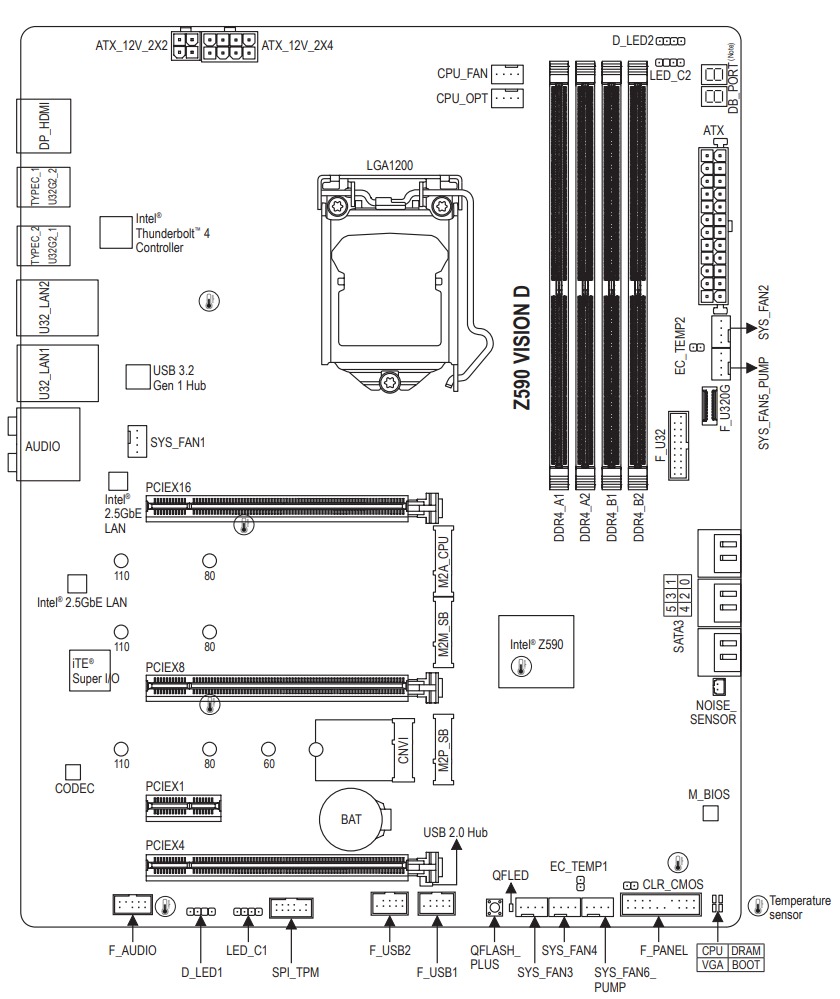

[ Rear Ports ][ Schematic ]

Gigabyte Z590 VISION D Picture 68135Gigabyte Z590 VISION D Picture 68136Gigabyte Z590 VISION D Picture 68137Gigabyte Z590 VISION D Picture 68140Gigabyte Z590 VISION D Picture 68139

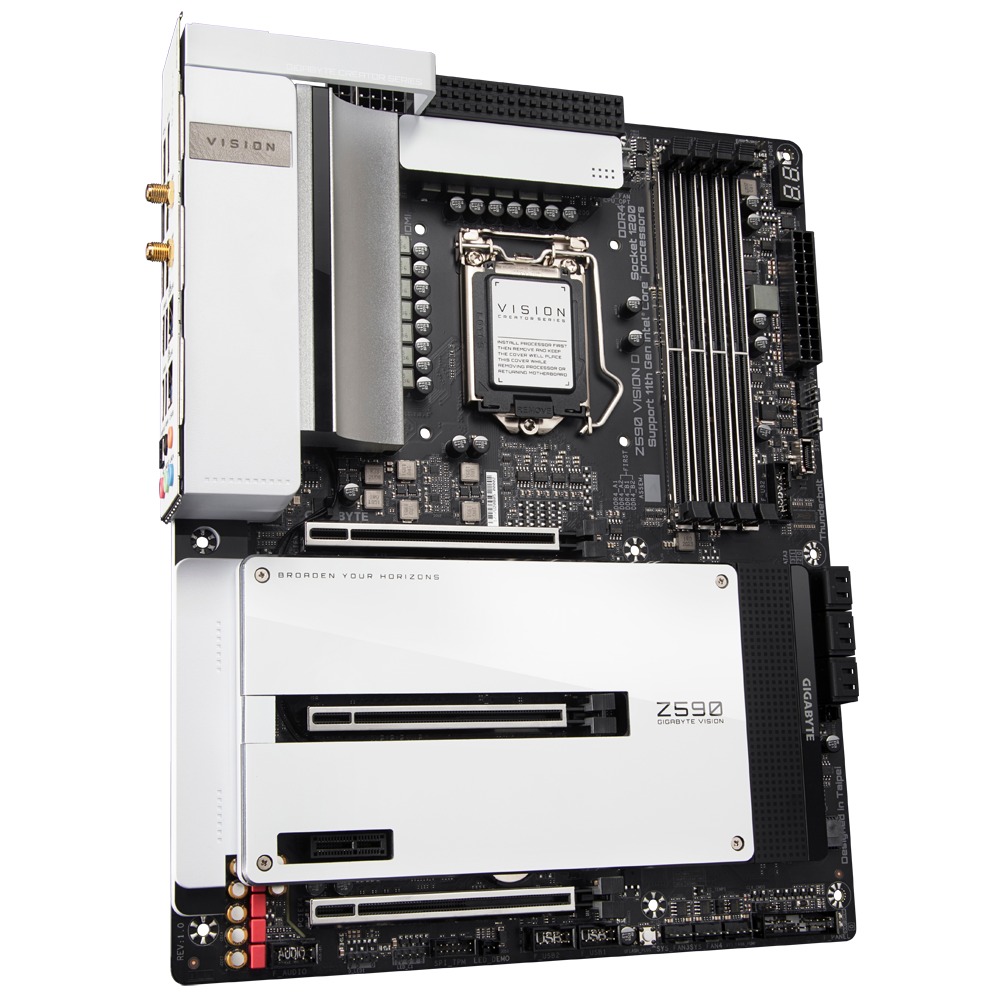

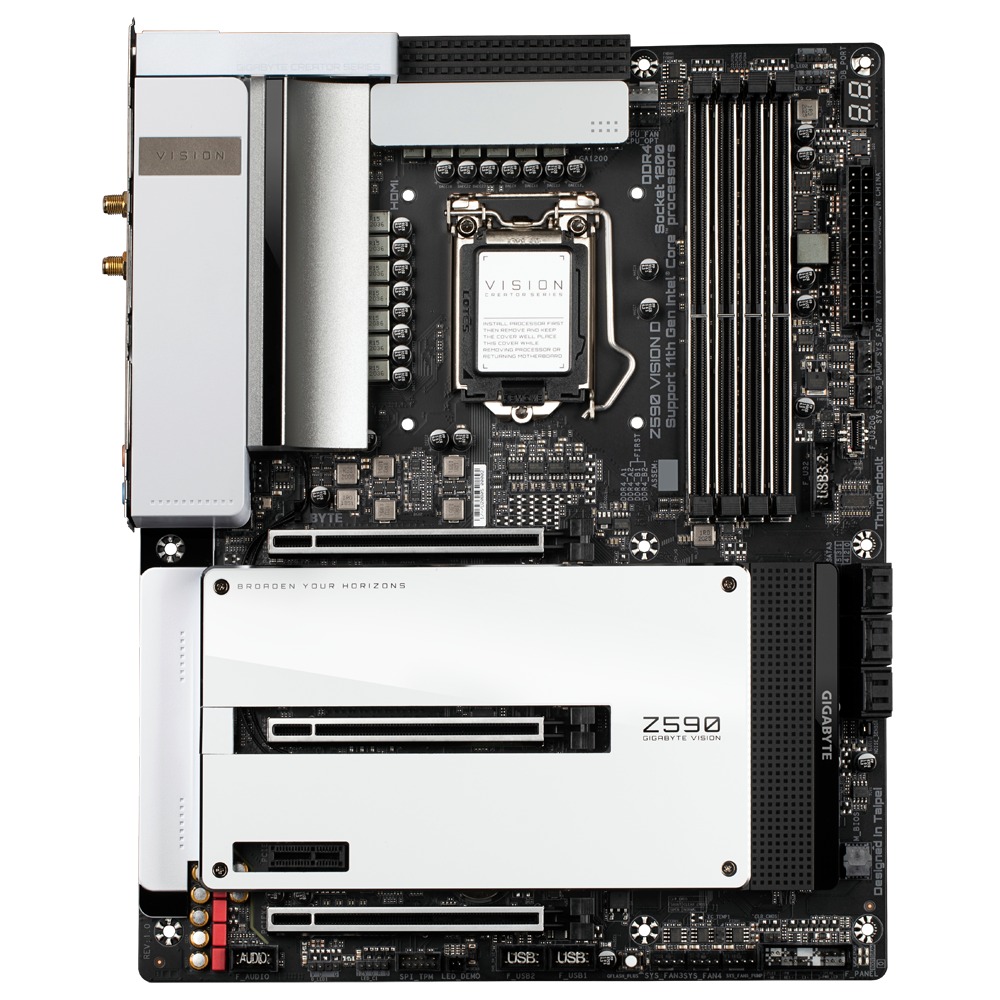

The Gigabyte Z590 VISION D is an ATX motherboard for 10th and 11th Gen Intel Core processors. It offers a full range of features, a good mix of I/O ports, and solid build quality.

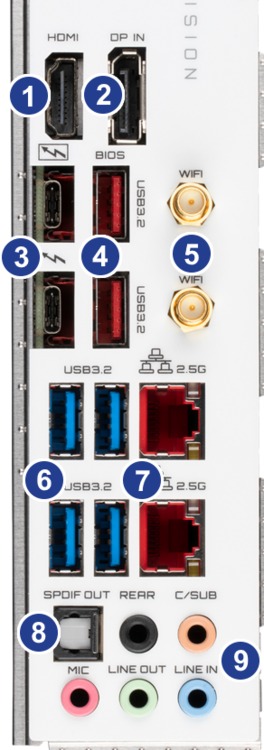

In terms of connectivity, this board is well rounded. It has HDMI 1.4b video output for use with the Intel graphics built into the CPU - a great backup option, in case the dedicated video card in a system isn't working. It also has both analog and digital audio outputs, dual 2.5Gb Ethernet, WiFi 6, Bluetooth 5.1, four USB 3.2 Gen 1, and two USB 3.2 Gen2 ports. Two Thunderbolt 4 ports are also present, using Type C connectors which can double as additional USB ports, and a DisplayPort input is provided as well to allow video pass-through to one of the Thunderbolt ports.

Internally it has four DDR4 slots for memory, allowing up to 128GB of 3200MHz RAM. Drive connectivity includes six SATA III ports plus three M.2 slots, though use of certain M.2 slots prevents using some of the SATA ports. For expansion cards, there are four total PCI-Express slots in varying sizes. Dual video cards can be used, though when doing so the PCI-E slots they are in run at x8 speed rather than x16.

Note: The top M.2 slot supports PCIe Gen4, but only works with an 11th Gen Core processor. The middle M.2 slot is PCIe Gen3. The bottom M.2 slot is also PCIe Gen3, and shares lanes with the bottom PCI-Express slot (each will run at x2 if both are populated).
Model: Gigabyte Z590 VISION D

Specifications:
spacer
Socket  1200
CPU Compatibility  Rocket Lake
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  Z590
Front Side Bus  DMI 3.0
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Intel I225-V + Intel AX200
Audio Controller  Onboard Realtek ALC4080 HD Audio
Cooling System  Heatsink
Color  White
Memory Support
Type  DDR4
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Dependant
Maximum HDMI Resolution   4096x2160
HDMI  1
HDMI Version  1.4b
Notes:  Displayport IN for Thunderbolt video output (providing up to DP 1.4)
External Connections
USB 3.2 Gen 1 (USB 3.0)  4
USB 3.2 Gen 2 (USB 3.1)  2
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  Yes
Thunderbolt Ports  2
Thunderbolt Version  4
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  3
M.2 Support  1x 80-110mm NVMe (Gen4), 1x 80-110mm NVMe (Gen3) & SATA, 1x 60-110mm NVMe (Gen3)
TPM (module sold separately)  1
Compatible TPM  Gigabyte GC-TPM2.0 SPI 2.0
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel Z590
Expansion Slots
Slot 1  PCI Express 4.0 x16
Slot 2  Slot not available on this board
Slot 3  Slot not available on this board
Slot 4  PCI Express 4.0 x8 in a x16 size
Slot 5  Slot not available on this board
Slot 6  PCI Express 3.0 x1
Slot 7  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0/1/10/5
Bluetooth  Yes (5.0)
Dual GPU Slot Spacing  3-Slot
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
Net Weight  1.534 kg (3.4 lbs)

The top M.2 slot is disabled with the use of a 10th Gen CPU.

The bottom M.2 slot shares resources with the bottom PCIe slot. Using it will cause the bottom PCIe slot to operate at x2.



Warranty:

3 Years




Configure a custom computer with the Gigabyte Z590 VISION D.
