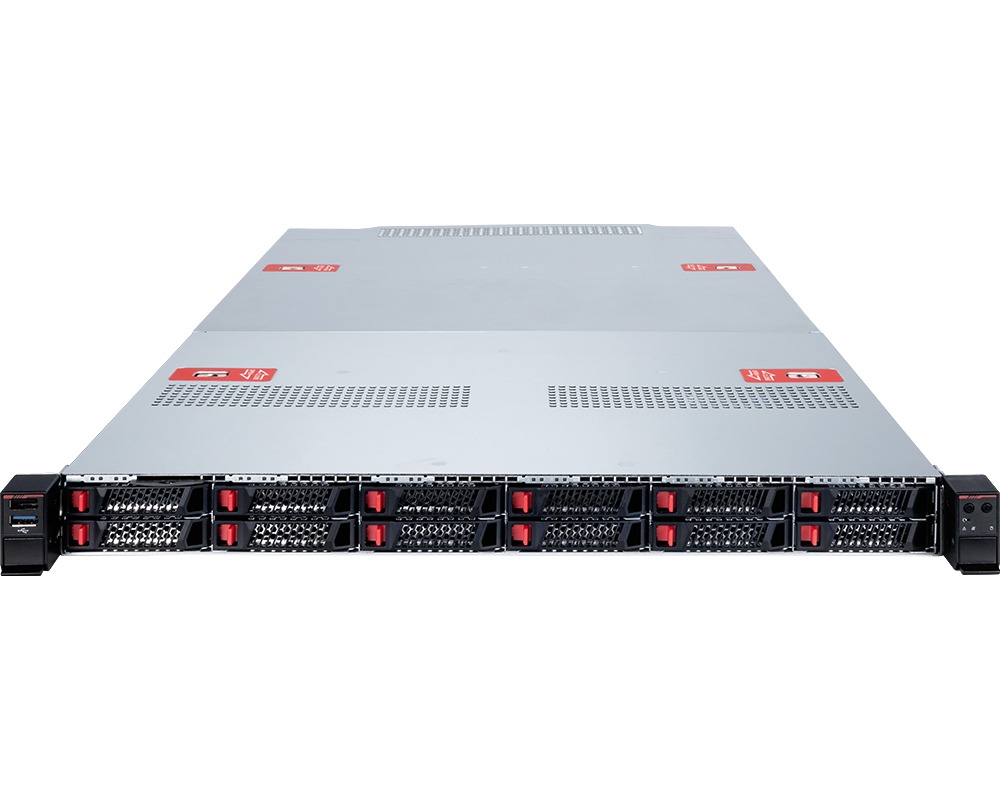

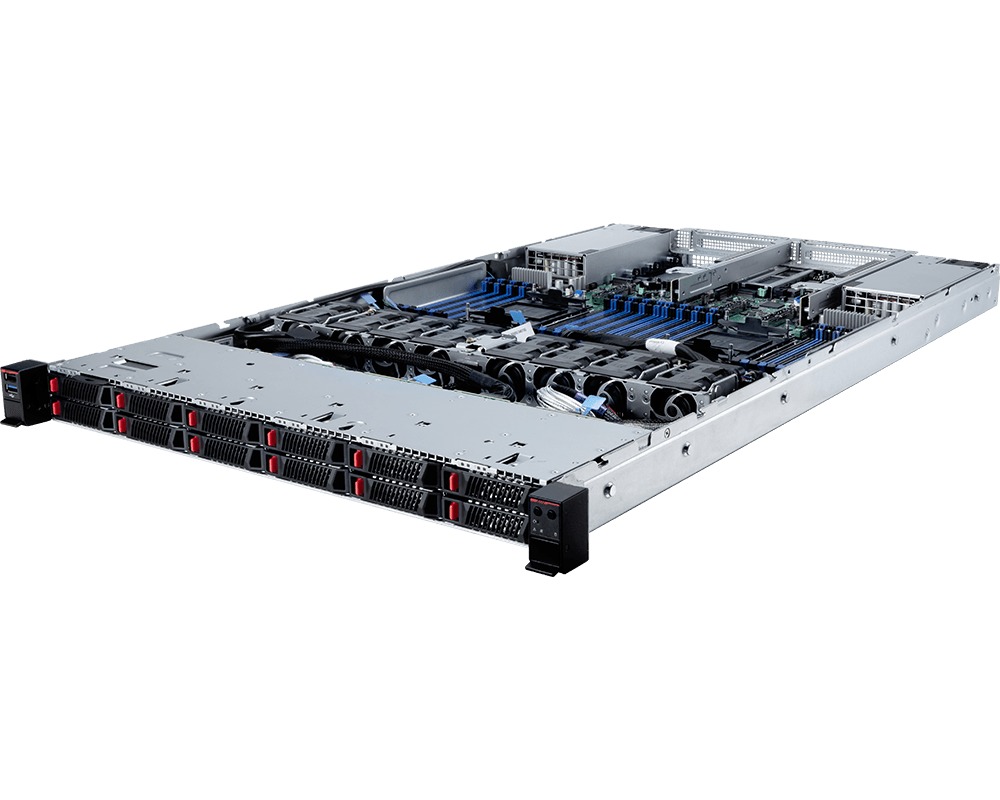

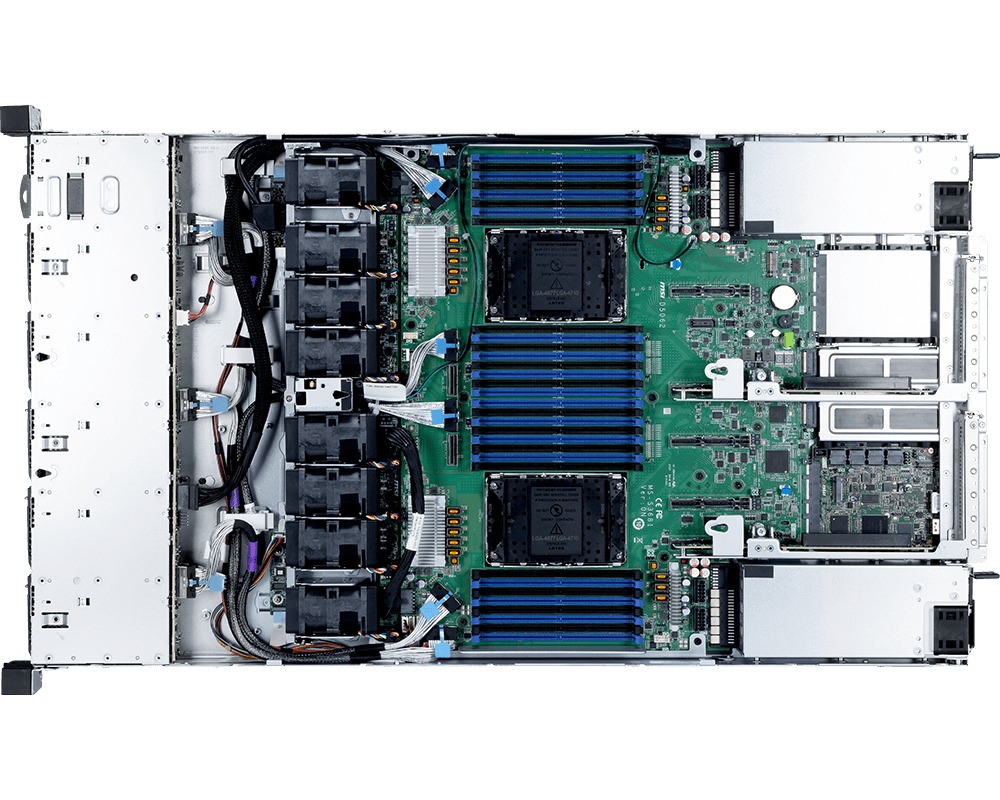

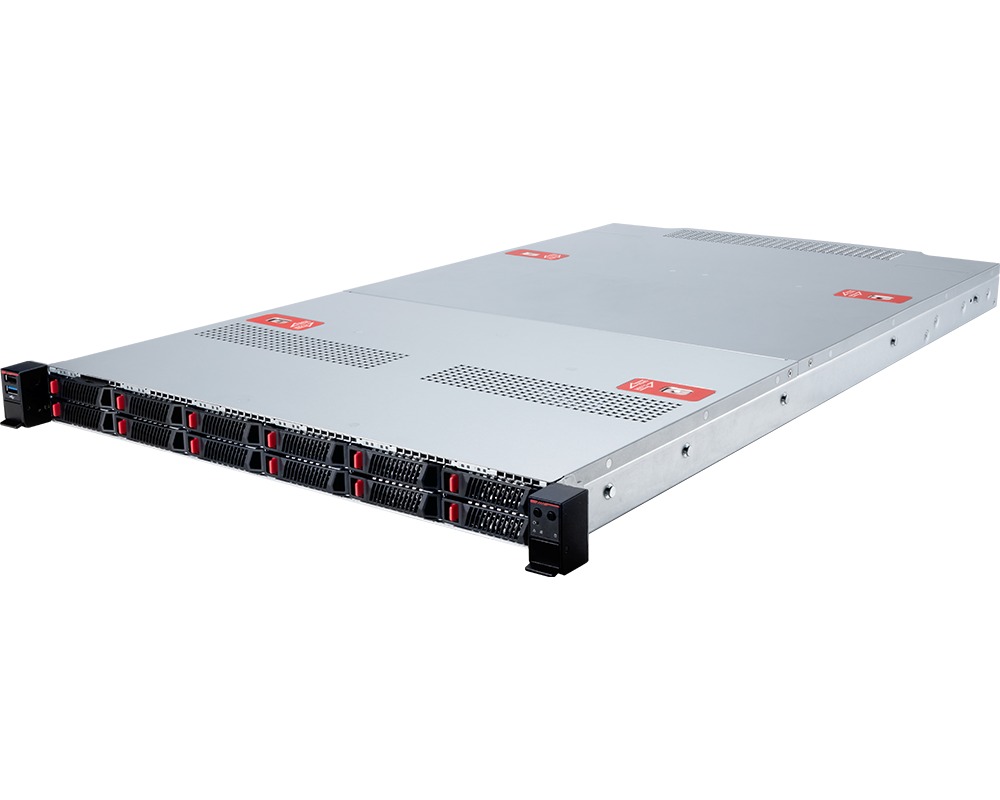

The MSI S5062X170RAU12 is a 1U rackmount server built to offer dense CPU compute along with built-in storage capabilities. It utilizes a pair of Intel Xeon 6 processors, which each support a massive number of PCI-Express Gen 5 lanes as well as 8 DDR5 memory channels - ensuring plenty of bandwidth and connectivity for various networking options and several NVMe solid-state drives.

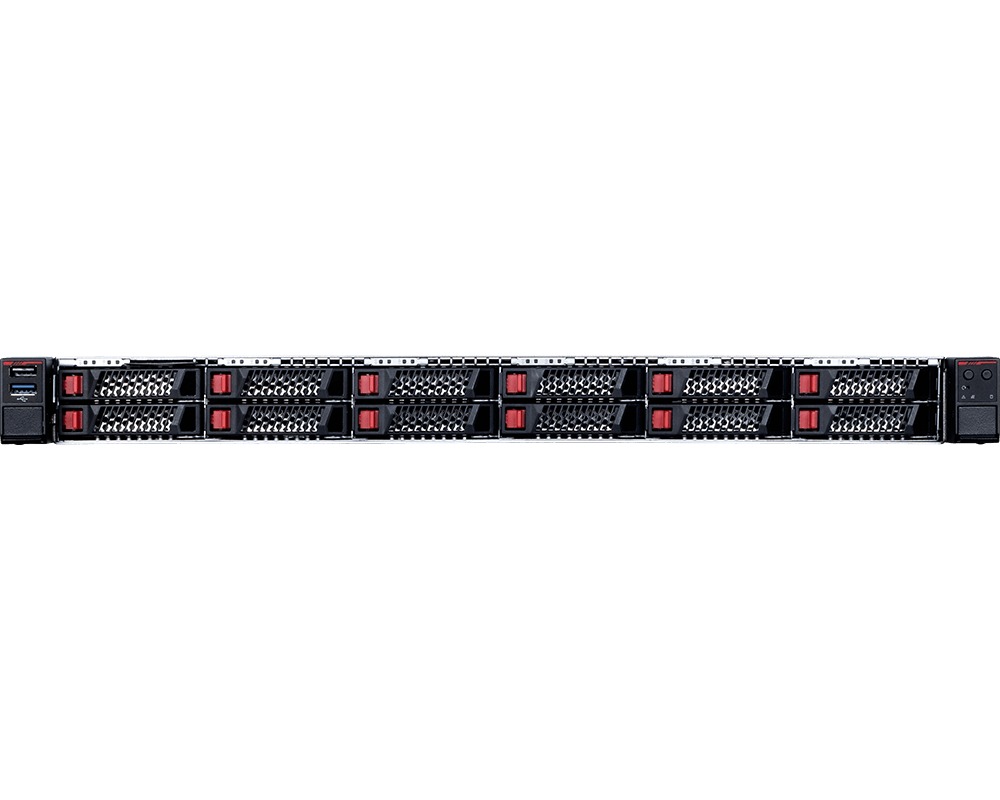

Storage options include two internal M.2 slots for SSDs and twelve front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.

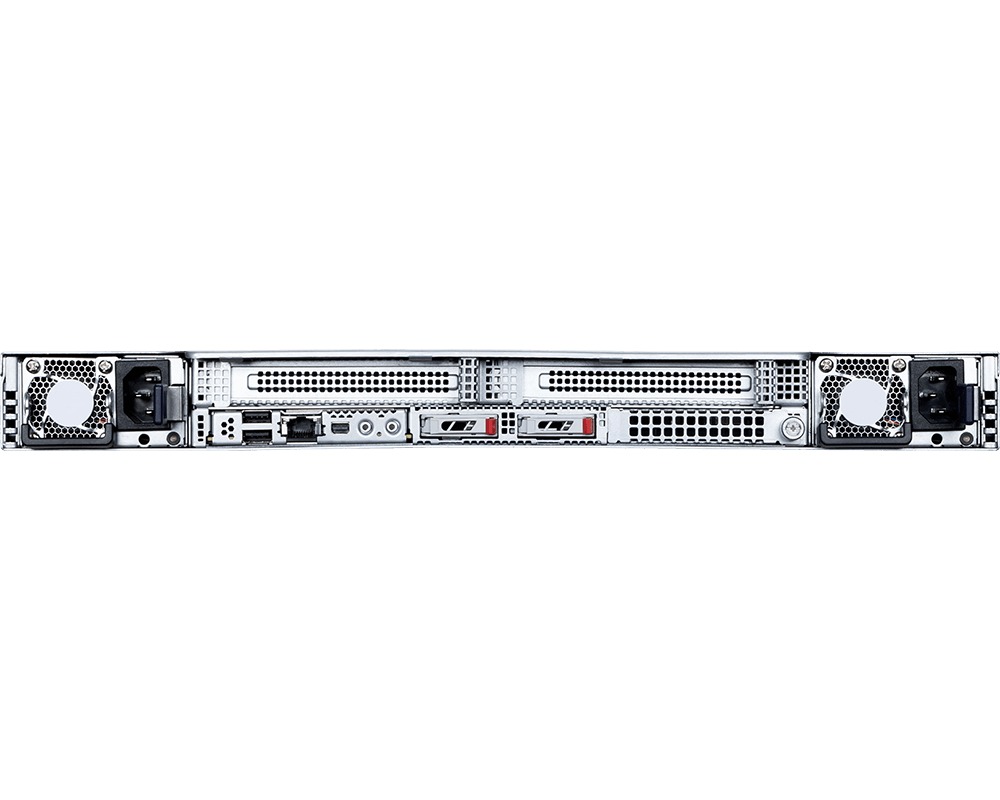

External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there is an OCP 3.0 slot for a dedicated NIC - as well as two PCIe 5.0 x16 slots for additional networking or other expansion cards.
Storage options include two internal M.2 slots for SSDs and twelve front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there is an OCP 3.0 slot for a dedicated NIC - as well as two PCIe 5.0 x16 slots for additional networking or other expansion cards.
Model: MSI S5062X170RAU12
Specifications
| Socket | Dual 4710 |
| CPU Compatibility | Xeon 6700E, 6500P, and 6700P series (up to 350W TDP) |
| Form Factor | 1U |
| Number of Fans | 8 |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 8192 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 110mm PCIe 5.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
| VROC Key Header | Yes |
| Notes: | 8x MCIO headers |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
Additional Information | |
| RAID Support | RAID 0/1/5/10 (VROC Key Required) |
| Remote Management | Included |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 43 mm (1.7 in) |
| Width | 438.5 mm (17.3 in) |
| Depth | 770 mm (30.3 in) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1000 W |
| Wattage at 240V | 2000 W |
| Redundancy | 1+1 |
External Drive Bays
Front:
12x 2.5" hot-swap bays (NVMe)
- NVMe via U.2, PCIe 5.0 link
Rear:
2x E1.S 9.5mm hot-swap bays (NVMe)
- NVMe, PCIe 5.0 link
Rear USB 2.0 ports are configured as:
Upper: COM via USB
Lower: USB 2.0
Memory speeds of 6400 MT/s only possible in 1DPC configurations; 2DPC limits speed to 5200 MT/s
