Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen)

Motherboard

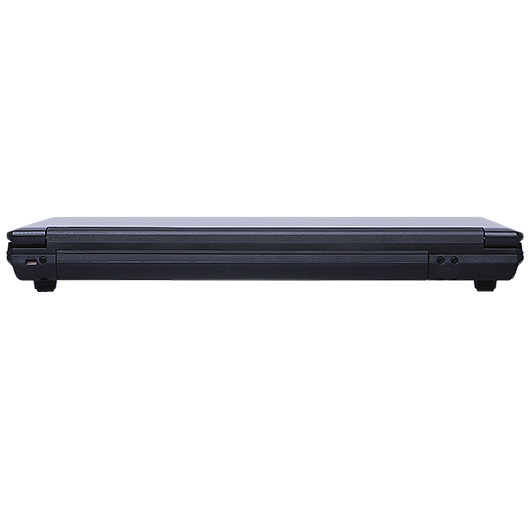

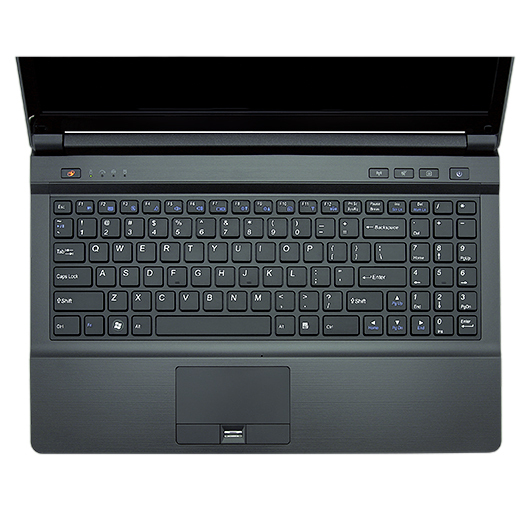

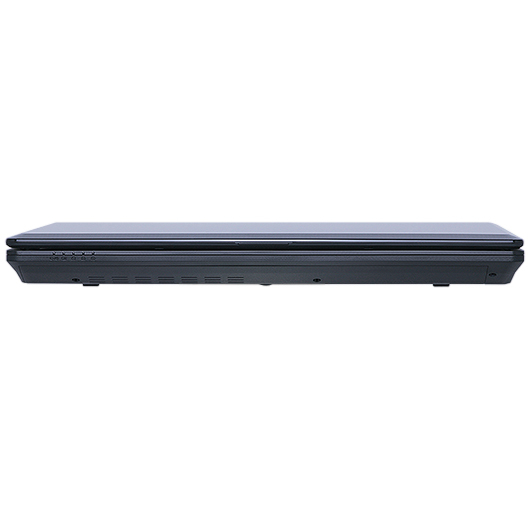

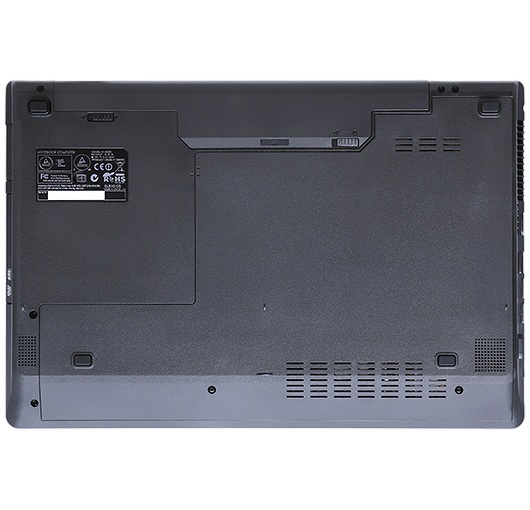

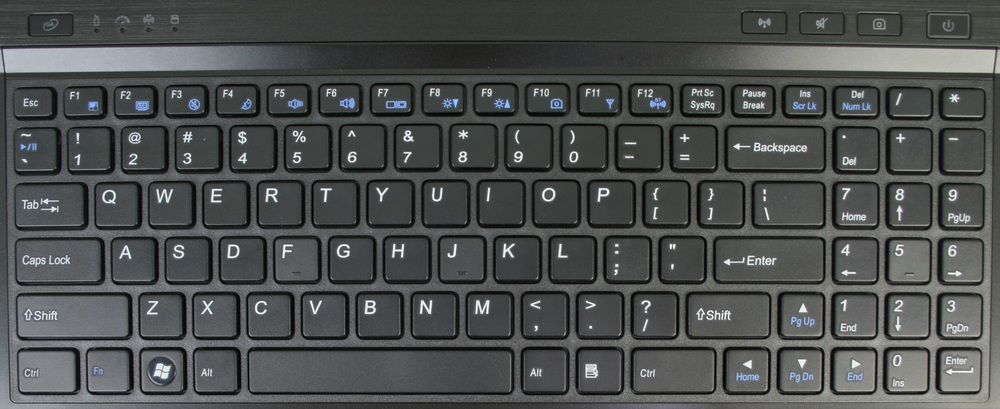

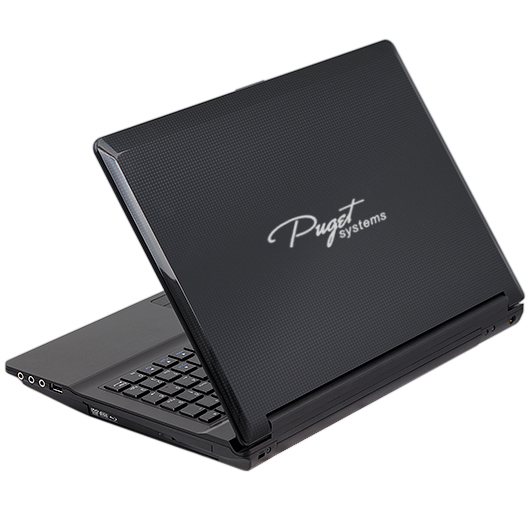

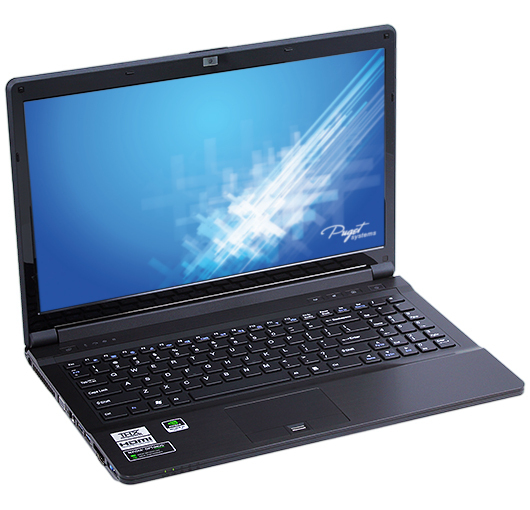

Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Main Picture


Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19974Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19975Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 20126Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 20125Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19977Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19978Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19979Puget V550i 15-inch Notebook w/ GT 650M (Glossy Screen) Picture 19980

Model: Clevo W150ERQ

Specifications

Socket PGA988
CPU Compatibility Intel Core i5/i7 Mobile
Form Factor Notebook
Chipset Manufacturer Intel
Chipset HM76
Network Connectivity Gigabit Networking
Network Controller Realtek Ethernet
Audio Controller Realtek High Definition Audio
Cooling System Heatsink and Fan
Number of Fans 1
Color Black
Notebook-Display
Screen Size 15.6 Inch
Widescreen Yes
Native Resolution Full HD (1920x1080)
Surface Glossy Finish
Memory Support
Type DDR3 SODIMM
Maximum Speed 1600 MHz
Number of Slots 2
Maximum Size per Slot 8 GB
Maximum Amount Supported 16 GB
Onboard Video
Chipset Manufacturer nVidia
Processor Type Geforce GT 650M
Onboard Memory 1024 MB
Maximum Resolution 3840x2160
VGA 1
HDMI 1
HDMI Version 1.4a

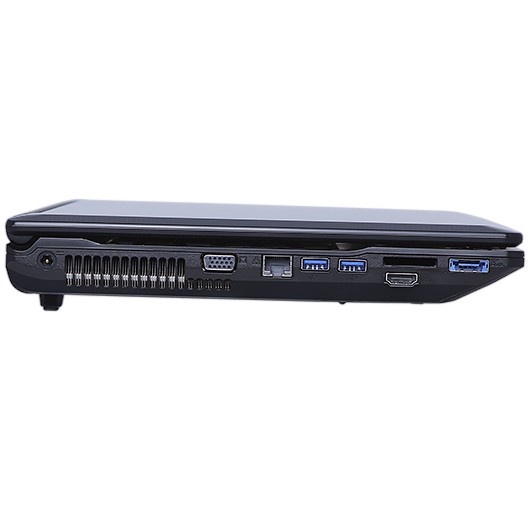

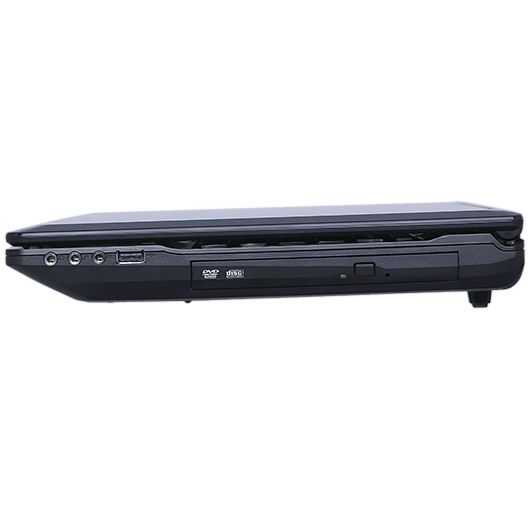

External Connections
USB 2.0 1
USB 3.2 Gen 1 (USB 3.0) 2
Audio Out Surround Sound (5.1)
Audio In Line-In/Microphone
External SATA 1
LAN (RJ45) 1
Memory Card Reader MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader Yes
Internal Connections
SATA II 3.0Gbps 1
SATA III 6.0Gbps 2
SATA Controllers
SATA II 3.0Gbps Controller 1 Intel HM76
SATA III 6.0Gbps Controller 1 Intel HM76
Additional Information
SLI Compatible No
Crossfire Compatible No
Built-in Webcam 2.0Mpx
BIOS Features
UEFI BIOS No
EZ Flash No
OC Profiles No
Dimensions
Height 42 mm (1.7 in)
Width 374 mm (14.7 in)
Depth 250 mm (9.8 in)
Net Weight 2.8 kg (6.2 lbs)
Power Supply
Input Voltage 100-240 Vac
Wattage at 120V 50-60 W
AC Adapter Output
DC Voltage 19 V
Amperage 4.74 A

Wireless and Bluetooth are purchased separately.

Switchable graphics button:
Green - Conserve Power Mode - Limit system to Intel graphics only
Orange - Performance Mode - Automatically select which graphics (Intel or NVIDIA) to use. By default the Intel graphics will be used, but will automatically switch to the NVIDIA graphics for higher-end 3D applications

Unit allows for two concurrent displays at once (built-in screen plus one external display).

Bluetooth functionality is disabled on startup by default and must be enabled with the function keys.
