Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen)

Motherboard

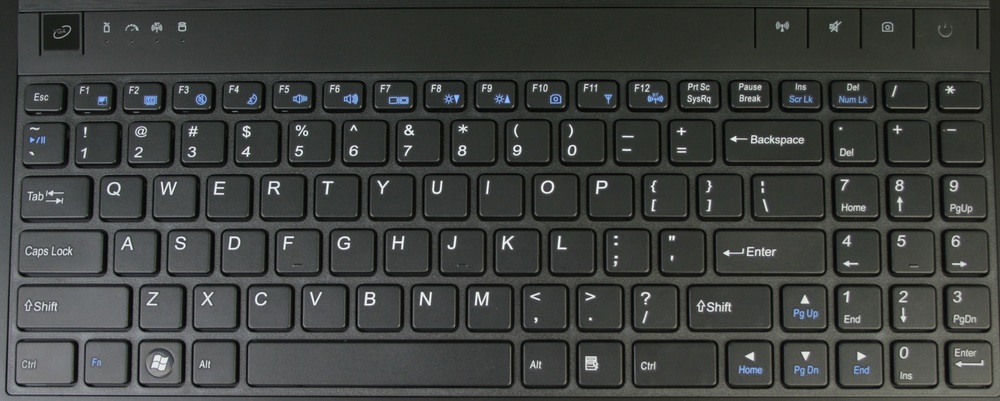

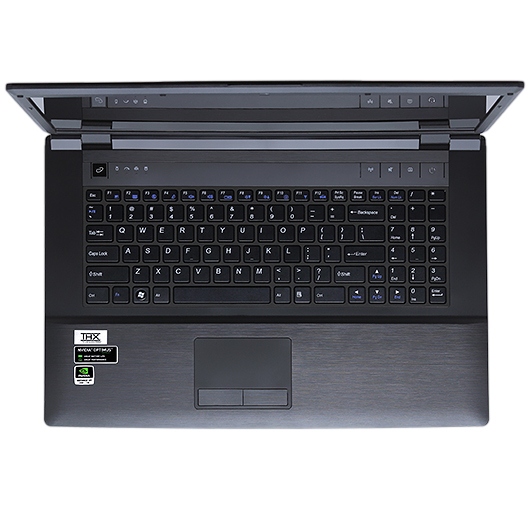

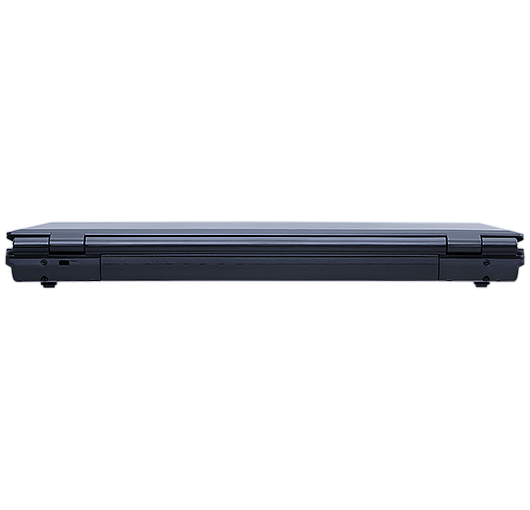

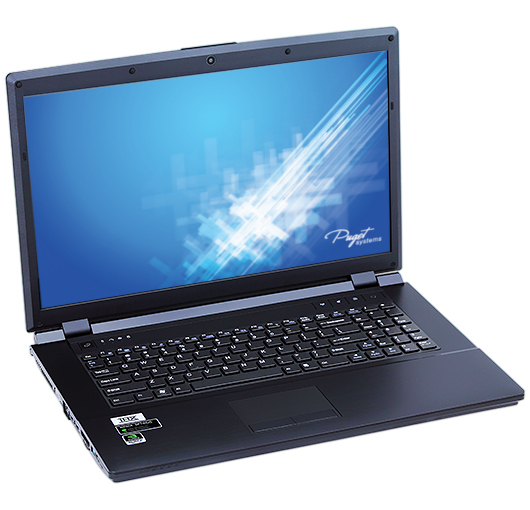

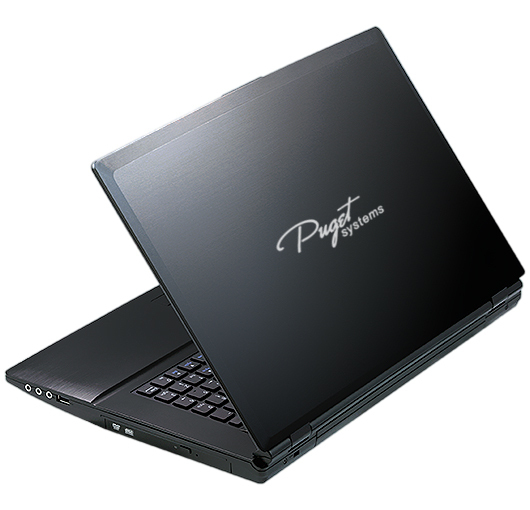

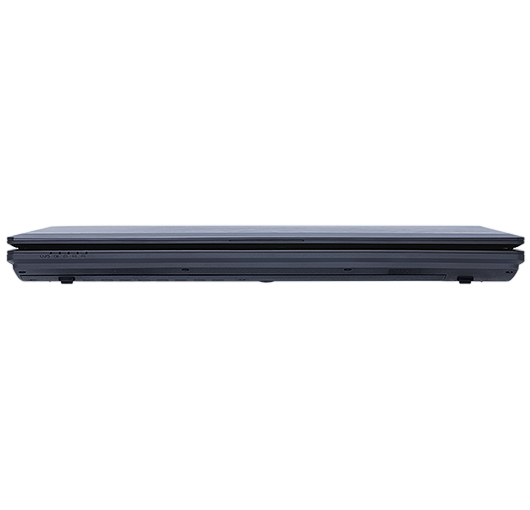

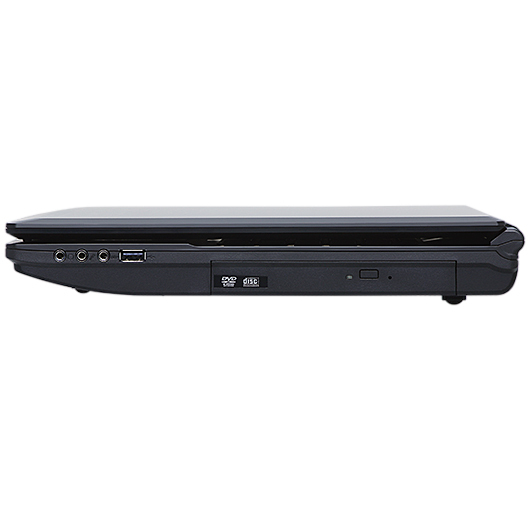

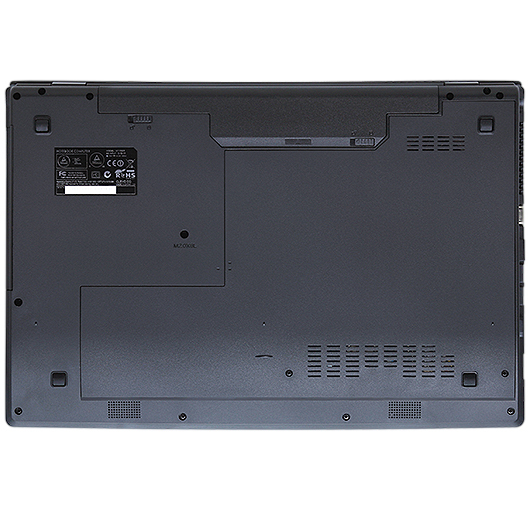

Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20031Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20032Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20014Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20021Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20015Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20016Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20017Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20018Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20019
Model: Clevo W170ER

Specifications:
spacer
Socket  PGA988
CPU Compatibility  Intel Core i5/i7 Mobile
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM76
Network Connectivity  Gigabit Networking
Network Controller  Realtek Ethernet
Audio Controller  Realtek High Definition Audio
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Notebook-Display
Screen Size  17.3 Inch
Widescreen  Yes
Native Resolution  Full HD (1920x1080)
Surface  Glossy Finish
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  2
Maximum Size per Slot  8 GB
Maximum Amount Supported  16 GB
Onboard Video
Chipset Manufacturer  nVidia
Processor Type  Geforce GT 650M
Onboard Memory  1024 MB
Maximum Resolution  3840x2160
VGA  1
HDMI  1

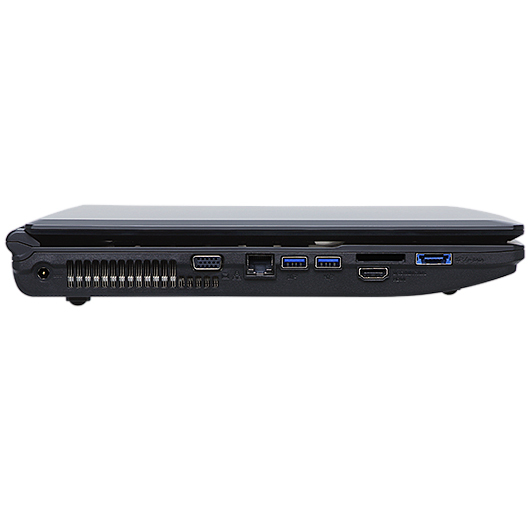

External Connections
USB 2.0  1
USB 3.0  2
Audio Out  Surround Sound (5.1)
Audio In  Line-In/Microphone
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  No
Internal Connections
SATA II 3.0Gbps  1
SATA III 6.0Gbps  2
SATA Controllers
SATA II 3.0Gbps Controller 1  Intel HM76
SATA III 6.0Gbps Controller 1  Intel HM76
Additional Information
SLI Compatible  No
Crossfire Compatible  No
Built-in Webcam  2.0Mpx
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  42 mm (1.7 in)
Width  413 mm (16.3 in)
Depth  278 mm (10.9 in)
Net Weight  3.2 kg (7.1 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  4.74 A

Wireless and Bluetooth are purchased separately.

Switchable graphics button:
Green - Conserve Power Mode - Limit system to Intel graphics only
Orange - Performance Mode - Automatically select which graphics (Intel or NVIDIA) to use. By default the Intel graphics will be used, but will automatically switch to the NVIDIA graphics for higher-end 3D applications

Unit allows for two concurrent displays at once (built-in screen plus one external display).

Bluetooth functionality is disabled on startup by default and must be enabled with the function keys.
