Special Order Part - Intel S1200BTS

Motherboard

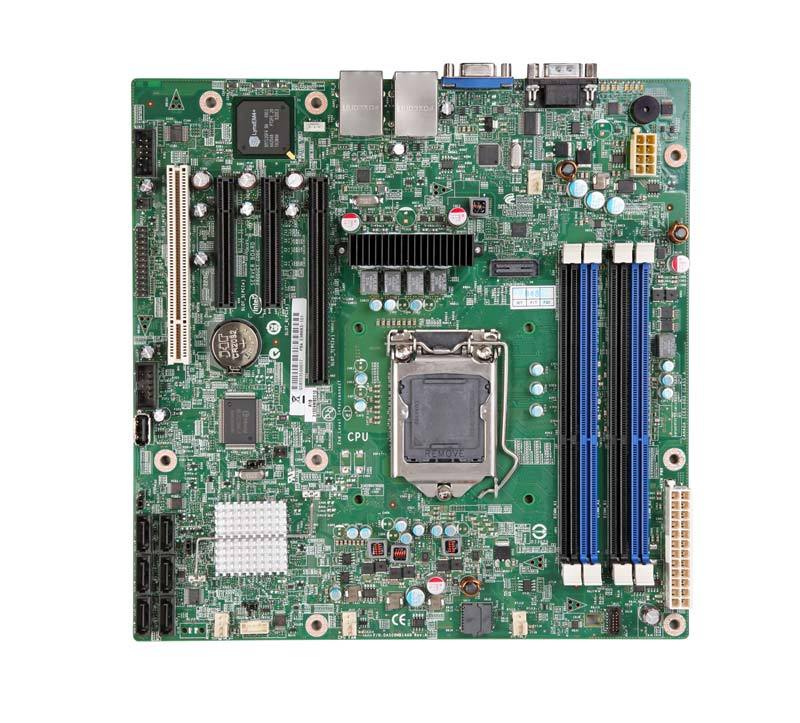

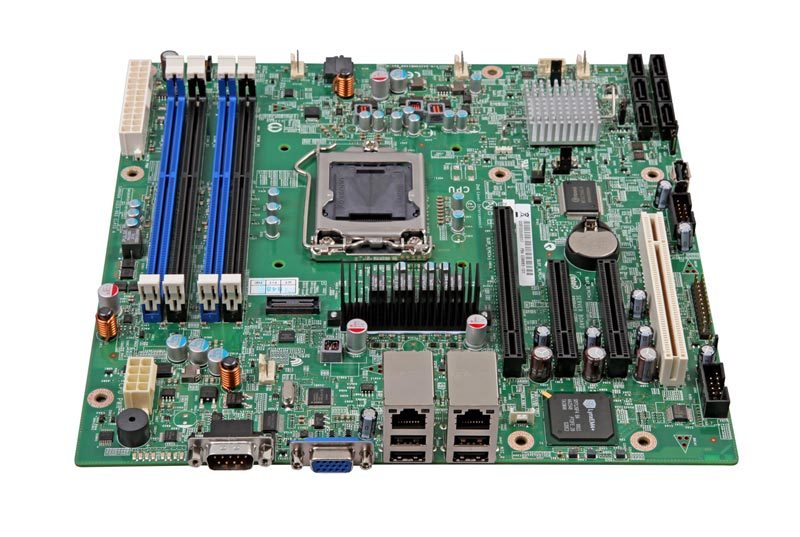

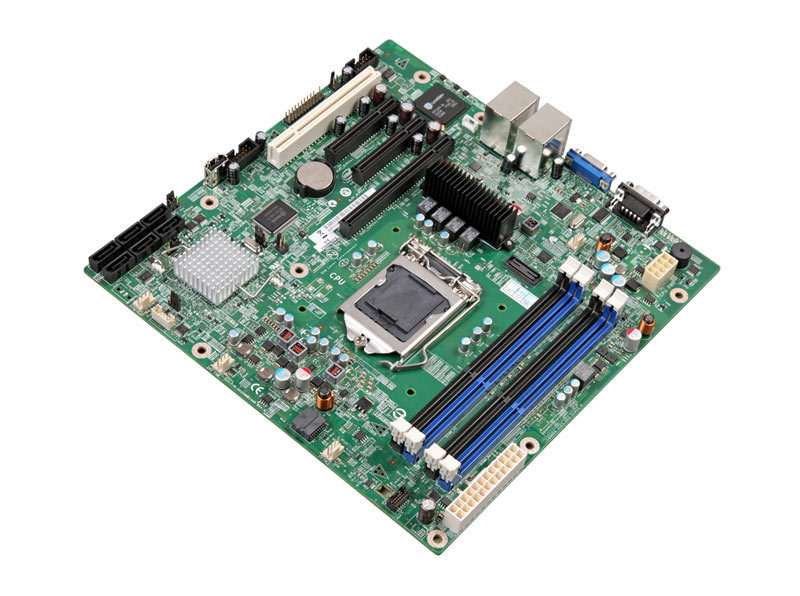

Special Order Part - Intel S1200BTS Picture 18739Special Order Part - Intel S1200BTS Picture 18740Special Order Part - Intel S1200BTS Picture 18741
View the Puget Systems article featuring this item.
Model: Intel S1200BTS

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Xeon E3-1200 Processor Family
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  C202
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel 82574L, Intel 82579
Cooling System  Heatsink
Color  Green
Memory Support
Type  DDR2 ECC
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  SM712 Graphic Controller
VGA  1
External Connections
USB 2.0  4
LAN (RJ45)  2
Serial (COM) Port  1
Internal Connections
USB 2.0  1 (providing 2 ports)
SATA II 3.0Gbps  6
SATA Controllers
SATA II 3.0Gbps Controller 1  6 port - Intel C202
Expansion Slots
Slot 1  PCI Express 2.0 x8 in a x16 size
Slot 2  PCI Express 2.0 x8
Slot 3  PCI Express 2.0 x8
Slot 4  PCI
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,5,10
Bluetooth  No
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)
