Tyan Thunder CX GT24E-B5556 1U Server

Motherboard

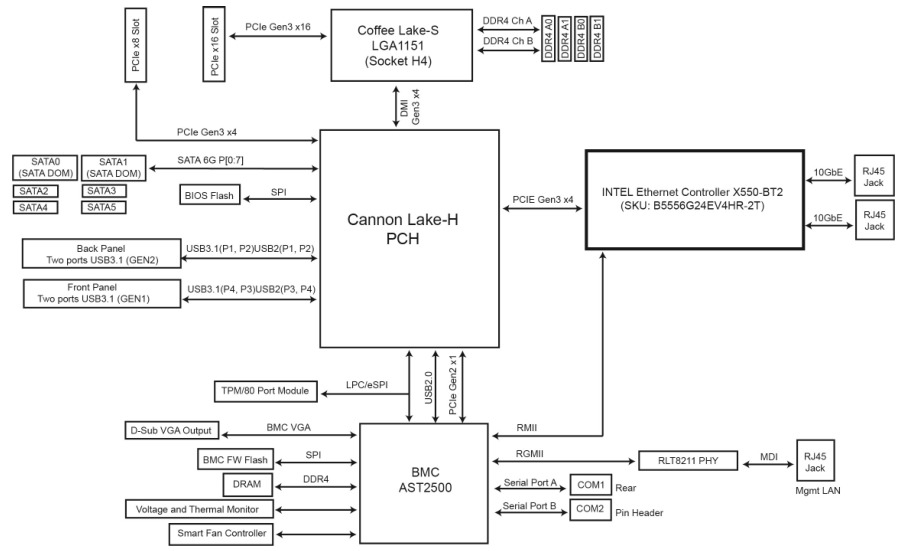

[ Rear Ports ][ Schematic ]

Tyan Thunder CX GT24E-B5556 1U Server Picture 55175Tyan Thunder CX GT24E-B5556 1U Server Picture 55171Tyan Thunder CX GT24E-B5556 1U Server Picture 55172Tyan Thunder CX GT24E-B5556 1U Server Picture 55173Tyan Thunder CX GT24E-B5556 1U Server Picture 55174Tyan Thunder CX GT24E-B5556 1U Server Picture 55176Tyan Thunder CX GT24E-B5556 1U Server Picture 55178

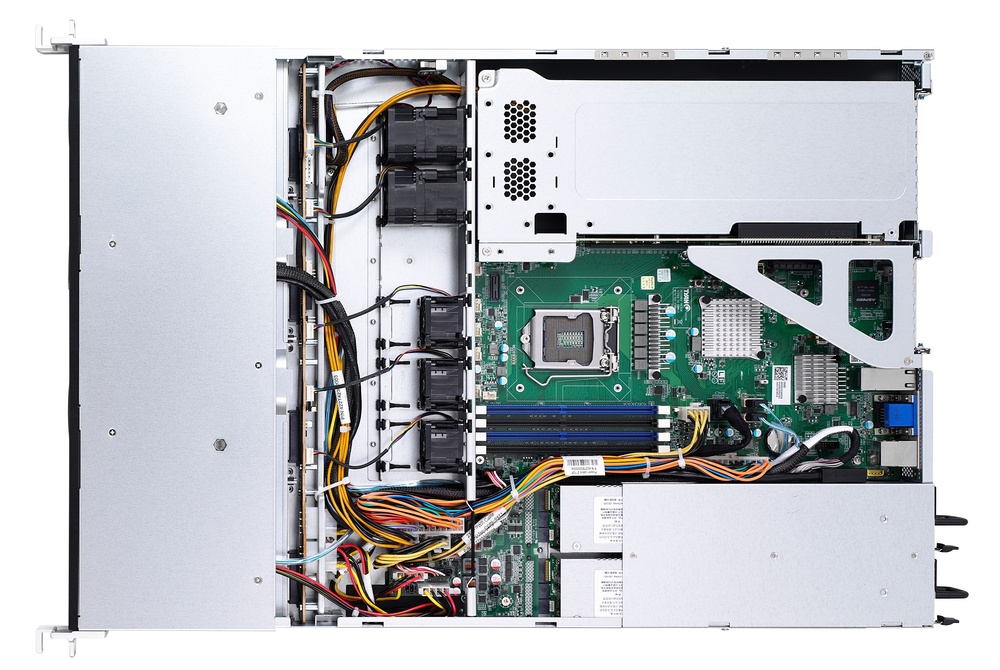

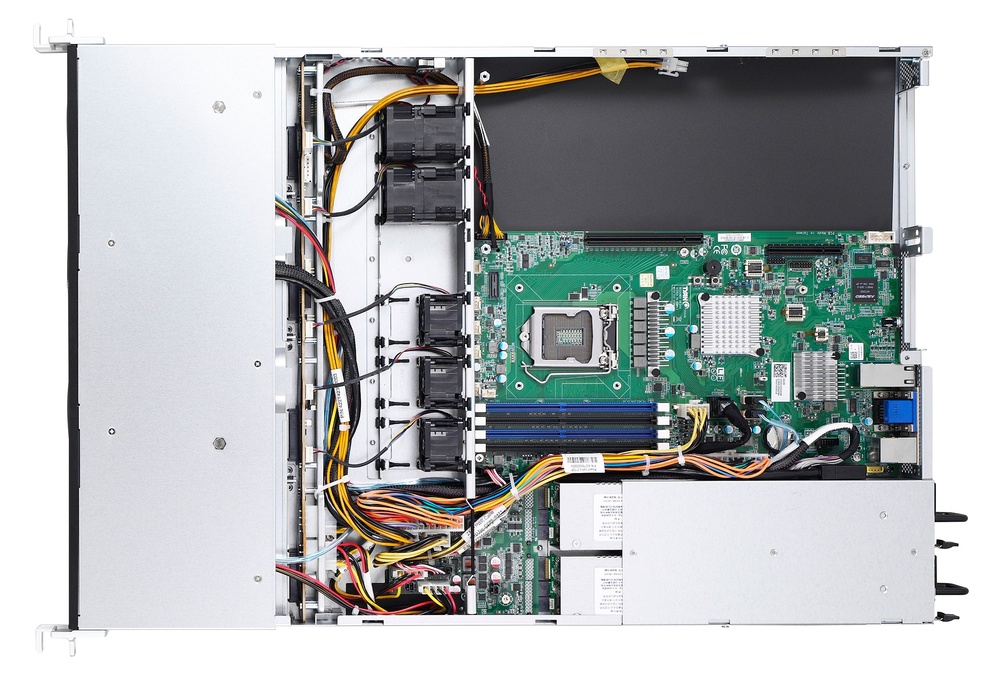

The Tyan Thunder CX GT24E-B5556 is a barebones server housed in a 1U rackmount chassis. It comes with a proprietary motherboard that fits a single Xeon E-2100 series processor, four memory slots, and (optionally) one dedicated video card. For headless server workloads, however, a video card may not be required - and the motherboard includes a basic Aspeed graphics chip with VGA output for times when direct access is required. If no video card is used, other PCI-Express cards could potentially be installed instead as long as they fit within the limited space this chassis provides and do not require supplemental SATA or Molex power.

In terms of storage, there are two internal bays for 2.5-inch SATA drives and four front-accessible bays supporting either 2.5 or 3.5-inch SATA drives. Dual 10Gb Ethernet ports are included for networking, along with a third 1GbE port that is dedicated for remote management (IPMI). Connectivity is rounded out with four USB 3.1 ports (two each on the front and back) and one old-school serial COM port. All of this is powered by a redundant 650W Platinum-rated power supply.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
Because of the compact 1U form factor, this system is *not* quiet... especially if a dedicated video card is used, in which case the chassis fans have to be run at maximum speed to ensure sufficient airflow.
Model: Tyan B5556G24EV4HR-2T-N

Specifications:
spacer
Socket  1151
CPU Compatibility  Coffee Lake-S
Form Factor  1U
Chipset Manufacturer  Intel
Chipset  C246
Front Side Bus  DMI 3.0
Network Connectivity  Dual 10G Networking
Network Controller  Intel X550-BT2
Cooling System  Heatsink and Fan
Number of Fans  7
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  2666 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  ASpeed
Processor Type  AST2500
Maximum Resolution  1920x1200
VGA  1
External Connections
USB 3.0  4
LAN (RJ45)  2
Mgmt LAN (RJ45)  1
Serial (COM) Port  1
Internal Connections
SATA III 6.0Gbps  2
TPM (module sold separately)  1
TPM Pinout  16-1
Mini-SAS HD  1
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel C246 (2x SATA-DOM, 1x Mini-SAS HD providing 4x SATA ports)
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 3.0 x8
Slot 3  PCI Express 3.0 x8
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0/1/10/5
Bluetooth  No
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  43.6 mm (1.7 in)
Width  436 mm (17.2 in)
Depth  645 mm (25.4 in)
Net Weight  15.5 kg (34.2 lbs)

Features:
  • System:
    Form Factor: 1U Rackmount
    Chassis Model: GT24E
    Dimension (D x W x H): 25.4" x 17.2" x 1.72" (645 x 436 x 43.6mm)
    Motherboard Name: S5556GM2NR-2T
    Gross Weight: 21 kg (46.5 lbs)
    Net weight: 15.5 kg (34.5 lbs)

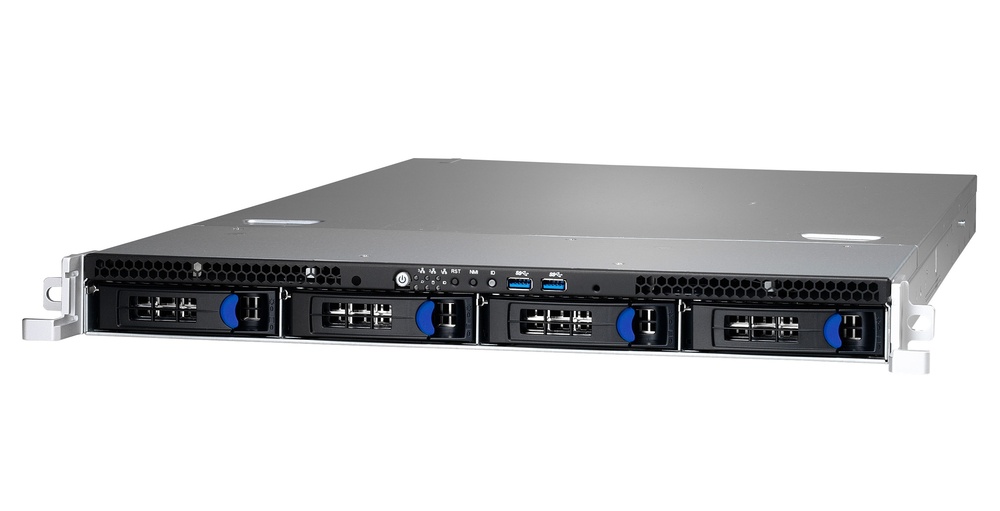

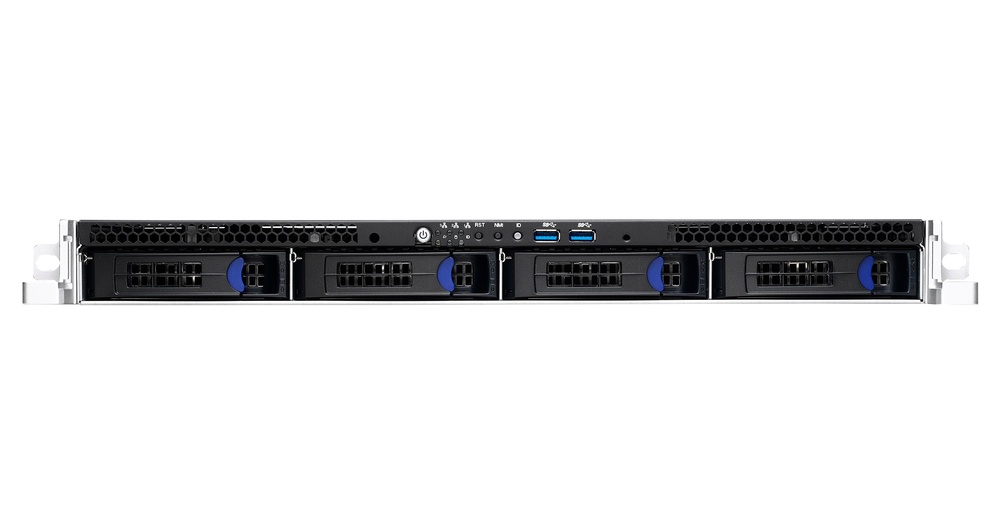

    Front Panel:
    Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
    LEDs: (1) HDD / (1) ID / (3) LAN / (1) BMC event
    I/O Ports: (2) USB 3.1 Gen1 ports

    External Drive Bay:
    Qty / Type: (4) 3.5"/2.5" Hot-Swap SSD/HDD
    HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s
    Supported HDD Interface: (4) SATA 6Gb/s

    Internal Drive Bay:
    Type / Qty: (2) 2.5" fixed SSD (with height up to 9.5mm)
    Supported HDD Interface: (2) SATA 6Gb/s

    System Cooling Configuration:
    FAN: (3) 4028 + (2) 4056 fans
    Air Duct: (1) Air duct of CPU / (1) Air duct of GPU

    Power Supply:
    Type: RPSU
    Input Range: AC 100-240V/9A (X2)
    Frequency: 50-60 Hz
    Output Watts: 650 Watts
    Efficiency: 80 plus Platinum
    Redundancy: 1+1
    Serviceability: Hot-swap

    Processor:
    Qty / Socket Type: (1) LGA1151
    Supported CPU Series: Intel Celeron G4900 Series Processors and Intel Pentium Processor G5000 Series / Intel Xeon E-2100 series processors / 8th Gen. Intel Core i3 processors
    Thermal Design Power (TDP) Wattage: Max up to 95W

    Chipset:
    PCH: Intel C242

    Memory:
    Supported DIMM Qty: (4) DIMM slots
    DIMM Type / Speed: UDIMM ECC DDR4 2666/2400
    Capacity: Up to 64GB
    Memory channel: 2 Channels per CPU
    Memory voltage: 1.2V

    Expansion Slots:
    PCI-E: (1) PCI-E Gen3 x16 slot (HH / HL) or (2) PCI-E Gen3 x8 slots (HH / HL) * split by Mux. / (1) PCI-E Gen3 x8 slot (HH / HL)

    LAN:
    Qty / Port: (2) 10GbE ports, (1) GbE port dedicated for IPMI
    Controller: Intel X550-AT2
    PHY: Realtek RTL8211E

    Storage:
    SATA: Connector: (2) SATA-DOM
    Controller: Intel C242
    Speed: 6.0 Gb/s
    RAID: RAID 0/1/10/5 (Intel RSTe)
    sSATA: Connector: (1) Mini-SAS HD (4-ports)
    Controller: Intel C242
    Speed: 6.0 Gb/s
    RAID: RAID 0/1/10/5 (Intel RSTe)

    Graphics:
    Connector type: D-Sub 15-pin
    Resolution: Up to 1920x1200
    Chipset: Aspeed AST2500

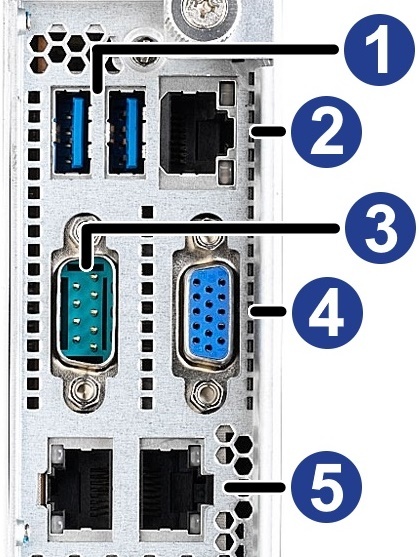

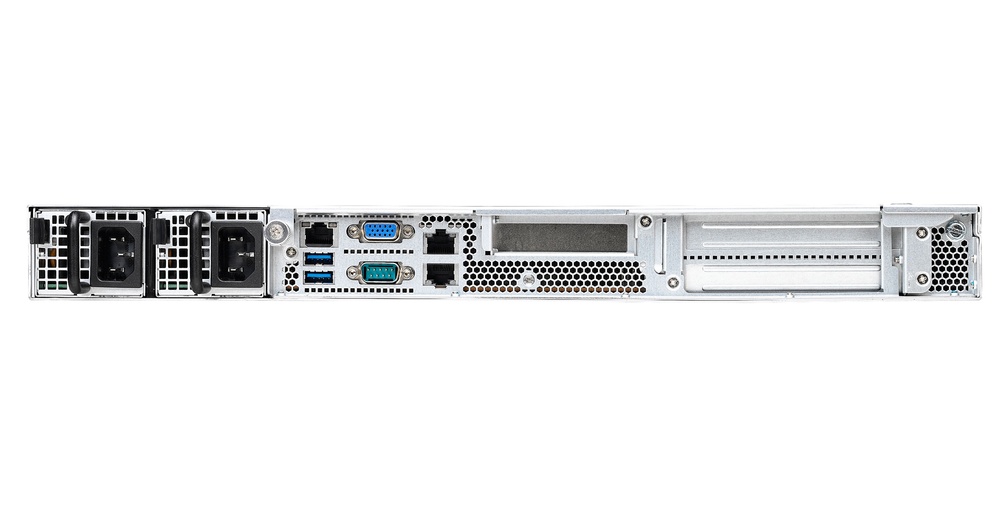

    I/O Ports:
    USB: (2) USB3.1 Gen1 ports (at front) / (2) USB3.1 Gen2 ports (at rear)
    COM: (1) DB-9 COM port
    VGA: (1) D-Sub 15-pin port
    RJ-45: (2) 10GbE ports, (1) GbE dedicated for IPMI

    TPM (Optional):
    TPM Support: Please refer to our TPM supported list.

    System Monitoring:
    Chipset: Aspeed AST2500
    Temperature: Monitors temperature for CPU & memory & system environment
    Voltage: Monitors voltage for CPU, memory, chipset & power supply
    LED: Over temperature warning indicator / Fan & PSU fail LED indicator
    Others: Watchdog timer support

    Server Management:
    Onboard Chipset: Onboard Aspeed AST2500
    AST2500 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
    AST2500 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

    BIOS:
    Brand / ROM size: AMI / 32MB
    Feature: Hardware Monitor / PXE boot support / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleep states S5

    Operating System:
    OS supported list: Please refer to our AVL support lists.

    Regulation:
    FCC (SDoC): Class A
    CE (DoC): Class A
    CB/LVD: Yes
    RCM: Class A
    VCCI: Class A

    Operating Environment:
    Operating Temp.: 10 C ~ 35 C (50 F~ 95 F)
    Non-operating Temp.: - 40 C ~ 70 C (-40 F ~ 158 F)
    In/Non-operating Humidity: 90%, non-condensing at 35 C

    RoHS:
    RoHS 6/6 Compliant: Yes

    Package Contains:
    Barebone: (1) GT24E-B5556 Barebone
    Manual: (1) Quick Installation Guide
    Rails: (1) Rack mounting rail kit, max. to 32-inches
