Tyan Thunder HX FT77D-B7109 8 GPU 4U Server

Motherboard

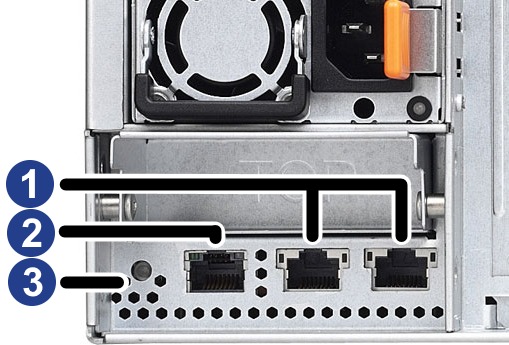

[ Rear Ports ]

Tyan Thunder HX FT77D-B7109 8 GPU 4U Server Picture 46477Tyan Thunder HX FT77D-B7109 8 GPU 4U Server Picture 46478Tyan Thunder HX FT77D-B7109 8 GPU 4U Server Picture 46479Tyan Thunder HX FT77D-B7109 8 GPU 4U Server Picture 46480Tyan Thunder HX FT77D-B7109 8 GPU 4U Server Picture 53250
This Tyan Thunder HX server is a massive, 4U rackmount system built explicitly for housing lots of GPUs. It can accommodate, power, and cool up to eight dual-width graphics cards, and it has enough PCI-Express lanes for those thanks to four PLX switches connected to the pair of Intel Xeon Scalable processors it also houses.

Beyond the pure processing capabilities, this system can also fit up to 14 2.5-inch SATA drives. The power supplies are redundant, such that even if one of the three units fails the system will continue to operate normally. The external connectivity is somewhat limited, but covers all the critical features: two USB 3.0 ports, an old-school COM port, and a VGA port on the front - with dual 10Gb Ethernet ports on the back for networking, as well as a dedicated LAN port for IPMI.
Model: Tyan B7109F77DV14HR-2T-N

Specifications:
spacer
Socket  3647
CPU Compatibility  Purley
Form Factor  Other
Chipset Manufacturer  Intel
Chipset  C620
Front Side Bus  DMI 3.0
Network Connectivity  Dual 10G Networking
Network Controller  Intel
Cooling System  Heatsink and Fan
Number of Fans  6 120mm PWM
Color  Grey
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2666 MHz
Number of Slots  24
Maximum Size per Slot  128 GB
Onboard Video
Chipset Manufacturer  ASpeed
Maximum Resolution  1920x1080
VGA  1
Notes:  Aspeed AST2500
External Connections
USB 3.0  2
LAN (RJ45)  2
Mgmt LAN (RJ45)  1
Wireless Antenna Port  No
Memory Card Reader  No
Additional Information
RAID Support  0, 1, 5, 10
Bluetooth  No
Dimensions
Height  176 mm (6.9 in)
Width  438 mm (17.2 in)
Depth  770 mm (30.3 in)
Net Weight  26 kg (57.3 lbs)

Features:
  • System
    Form Factor: 4U Rackmount
    Chassis Model: FT77D
    Dimension (D x W x H): 30.31" x 17.24" x 6.93" (770 x 438 x 176mm)
    Motherboard Name: S7109GM2NR-2T
    Gross Weight: 45 kg (99.5 lbs)
    Net weight: 26 kg (57.5 lbs)

    Front Panel
    Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
    LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN
    I/O Ports: (2) USB 3.0 port

    Internal Drive Bay
    HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe
    Type / Qty: 2.5" Hot-Swap SSD/HDD/ (14)
    Supported HDD Interface: (14) SATA 6Gb/s

    Power Supply
    Type: RPSU
    Input Range: AC 100-127V/12.9A / AC 200-240V/9.5A
    Frequency: 47-63 Hz
    Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input)
    Efficiency: PFC / 80 plus Platinum
    Redundancy: 2+1 (3 may be required for full system load)

    Processor
    Qty / Socket Type: (2) LGA3647
    Supported CPU Series: Intel Xeon Scalable Processor
    Thermal Design Power (TDP) Wattage: Max up to 205W
    System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support

    Chipset
    PCH: Intel C621
    Switch IC: (4) PLX PEX8747

    Memory
    Supported DIMM Qty: (12)+(12) DIMM slots
    DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
    Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
    Memory channel: 6 Channels per CPU
    Memory voltage: 1.2V

    Expansion Slots:
    PCI-E: (9) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 Tyan Mezzanine slots
    Pre-install TYAN Riser Card: M2215-L8-1F / M2217-L16-IO

    LAN
    Port Qty: (2) 10GbE ports / (1) PHY
    Controller: Intel X550-AT2
    PHY: Realtek RTL8211E

    Storage
    sSATA: RAID RAID 0/1/10/5 (Intel RSTe)
    Speed: 6.0 Gb/s
    Connector: (2) SATA-III / (1) Mini-SAS HD (4-ports)
    SATA: RAID RAID 0/1/10/5 (Intel RSTe)
    Speed: 6.0 Gb/s
    Controller: Intel C621
    Connector: (2) Mini-SAS HD (8-ports)

    Graphics
    Connector type D-Sub 15-pin
    Resolution: Up to 1920x1200
    Chipset: Aspeed AST2500

    I/O Ports
    USB: (2) USB3.0 ports (at front)
    COM: (1) DB-9 COM port (at front)
    VGA: (1) D-Sub 15-pin port (at front)
    RJ-45: (2) 10GbE ports, (1) GbE dedicated for IPMI

    System Monitoring
    Chipset: Aspeed AST2500
    Temperature: Monitors temperature for CPU & memory & system environment
    Voltage: Monitors voltage for CPU, memory, chipset & power supply
    LED: Over temperature warning indicator / Fan & PSU fail LED indicator
    Others: Watchdog timer support

    Server Management
    AST2500 IPMI Feature: 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
    AST2500 iKVM Feature: IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
    Onboard Chipset: Onboard Aspeed AST2500

    BIOS
    Brand / ROM size: AMI / 32MB
    Feature: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

    Regulation
    CB/LVD: Yes
    RCM: Class A
    FCC (SDoC): Class A
    CE (DoC): Class A
    VCCI: Class A

    Operating Environment
    Operating Temp.: 10C ~ 35C (50F~ 95F)
    Non-operating Temp.: - 40C ~ 70C (-40F ~ 158F)
    In/Non-operating Humidity: 90%, non-condensing at 35C

    RoHS
    RoHS 6/6 Compliant: Yes
    Package Contains: Manual (1) Quick Installation Guide
    Installation CD: (1) TYAN Device Driver CD
    Barebone: (1) FT77D-B7109 w/NV Tesla-aware FW Barebone
Warranty:

3 Years
