Tyan Thunder HX GA88-B5631 4 GPU 1U Server

Motherboard

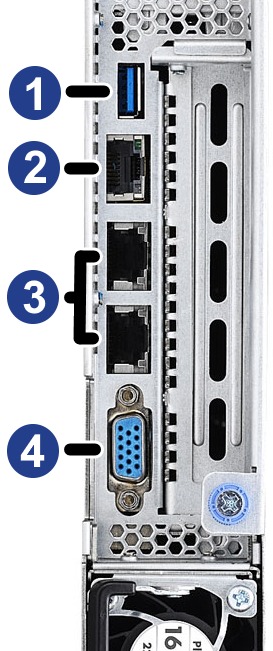

[ Rear Ports ]

Tyan Thunder HX GA88-B5631 4 GPU 1U Server Picture 45300Tyan Thunder HX GA88-B5631 4 GPU 1U Server Picture 45301Tyan Thunder HX GA88-B5631 4 GPU 1U Server Picture 45302Tyan Thunder HX GA88-B5631 4 GPU 1U Server Picture 53253
The Tyan Thunder HX GA88-B5631 (whew!) is a barebones server built specifically to house four GPUs in a thin, 1U rackmount form factor. It comes with a proprietary motherboard that fits a single Xeon Scalable processor, along with 12 memory slots, and uses a unique layout to accommodate up to four dual-width PCI-Express cards. These are mounted such that only the outputs from one of them are actually accessible, pointing toward the intended usage of the system: computation, not graphics output. There is also a fifth, single-width PCI-E slot for additional functionality.

Looking beyond the CPU and GPU capacity, this Tyan system includes USB 3.0 ports on the front and back, two M.2 slots internally, two removable 2.5" SATA drive bays on the front, and dual 10Gb Ethernet ports in the rear - making it ideal for use in locations with high speed network infrastructure or where large amounts of data will be stored outside the computer itself. Video output is provided through a single 15-pin VGA port on the back, connected to a basic ASpeed graphics chip, so if you absolutely need some local access to a command line or simple GUI you can get that... but it is really intended for use as a headless server. Finally, to power it all, a pair of redundant, 1600W, platinum-rated power supplies are also included.
Model: Tyan B5631G88V2HR-2T-N

Specifications:
spacer
Socket  3647
CPU Compatibility  Purley
Form Factor  1U
Chipset Manufacturer  Intel
Chipset  C621
Front Side Bus  DMI 3.0
Network Connectivity  Dual 10G Networking
Network Controller  Intel X550-AT2
Cooling System  Heatsink and Fan
Color  Grey
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2666 MHz
Number of Slots  12
Maximum Size per Slot  64 GB
Maximum Amount Supported  768 GB
Onboard Video
Chipset Manufacturer  ASpeed
Processor Type  AST2500
Onboard Memory  64 MB
Maximum Resolution  1920x1200
VGA  1
Notes:  Onboard video is via an included optional VGA bracket.
External Connections
USB 3.0  3
PS/2 Keyboard  No
PS/2 Mouse  No
LAN (RJ45)  2
Mgmt LAN (RJ45)  1
Wireless Antenna Port  No
Internal Connections
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  4
M.2 Connector  2
M.2 Support  80/110mm NVMe
Serial (Com)  1
TPM (module sold separately)  1
TPM Pinout  16-1
SATA Controllers
SATA III 6.0Gbps Controller 1  8
SATA III 6.0Gbps Controller 2  2
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 3.0 x16
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x16
Additional Information
SLI Compatible  No
RAID Support  0, 1, 5, 10
Bluetooth  No
Dimensions
Height  43.5 mm (1.7 in)
Width  438 mm (17.2 in)
Depth  885 mm (34.8 in)
Net Weight  13.5 kg (29.8 lbs)

Features:
  • System
    Form Factor 1U Rackmount
    Chassis Model GA88
    Dimension (D x W x H) 34.84" x 17.24" x 1.71" (885 x 438 x 43.5mm)
    Motherboard Name S5631GM2NR-2T
    Gross Weight 26.5 kg (58.5 lbs)
    Net weight 13.5 kg (30 lbs)

    Front Panel
    Buttons (1) PWR / (1) RST / (1) UID
    LEDs (1) PWR / (1) HDD / (2) LAN / (1) Warning
    I/O Ports (2) USB 3.0 ports

    External Drive Bay
    Q'ty / Type (2) 2.5" Hot-Swap SSD/HDD
    HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s
    Supported HDD Interface (2) SATA 6Gb/s

    System Cooling Configuration
    Redundancy Yes
    FAN (10) 4cm fans

    Power Supply
    Type ERP1U
    Input Range AC 100-127V/12A / AC 200-240V/9.48A
    Frequency 47-63 Hz
    Output Watts 1,000 Watts (100-127Vac input) / 1,600 Watts (220-240Vac input)
    Efficiency PFC / 80 plus Platinum
    Redundancy 1+1

    Processor
    Q'ty / Socket Type (1) LGA3647
    Supported CPU Series Intel Xeon Scalable Processor
    Thermal Design Power (TDP) Wattage Max up to 145W
    System Bus 1066/ 800/ 533 MHz

    Chipset
    PCH Intel C621
    Switch IC (2) PLX PEX8747

    Memory
    Supported DIMM Qty (12) DIMM slots
    DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
    Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
    Memory channel 6 Channels
    Memory voltage 1.2V

    Expansion Slots
    PCI-E (4) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) / (1) PCI-E Gen3 x16 slot (Full-height, Half-length)
    Pre-install TYAN Riser Card (1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot / (3) M5631-R16-1 riser card for (3) PCI-E Gen3 x16 slots / (1) M5631-R16-2 riser card for (1) PCI-E Gen3 x16 slot

    LAN
    Q'ty / Port (2) 10GbE ports / (1) PHY
    Controller Intel X550-AT2
    PHY Realtek RTL8211E

    Storage
    sSATA Connector (2) SATA-III / (2) SATA-DOM
    Controller Intel C621
    Speed 6.0 Gb/s
    RAID RAID 0/1/10/5 (Intel RSTe)
    NVMe Connector (M.2) (2) 22110/2280 (by PCI-E & SATA interface)

    Graphic
    Connector type D-Sub 15-pin
    Resolution Up to 1920x1200
    Chipset Aspeed AST2500

    I/O Ports
    USB (2) USB3.0 ports (at front) / (1) USB3.0 ports (at rear) / (1) USB3.0 TYPE-A
    COM (1) 2x5 pin-header
    VGA (1) D-Sub 15-pin port
    RJ-45 (2) 10GbE ports, (1) GbE dedicated for IPMI

    System Monitoring
    Chipset Aspeed AST2500
    Temperature Monitors temperature for CPU & memory & system environment
    Voltage Monitors voltage for CPU, memory, chipset & power supply
    LED Over temperature warning indicator / Fan & PSU fail LED indicator
    Others Watchdog timer support

    Server Management
    Onboard Chipset Onboard Aspeed AST2500
    AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
    AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

    BIOS
    Brand / ROM size AMI / 32MB
    Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

    Regulation
    FCC (DoC) Class A
    CE (DoC) Class A
    CB/LVD Yes
    RCM Class A
    VCCI Class A

    Operating Environment
    Operating Temp. 10
Warranty:

3 Years
