Tyan Thunder SX TN76-B7102 2U Server

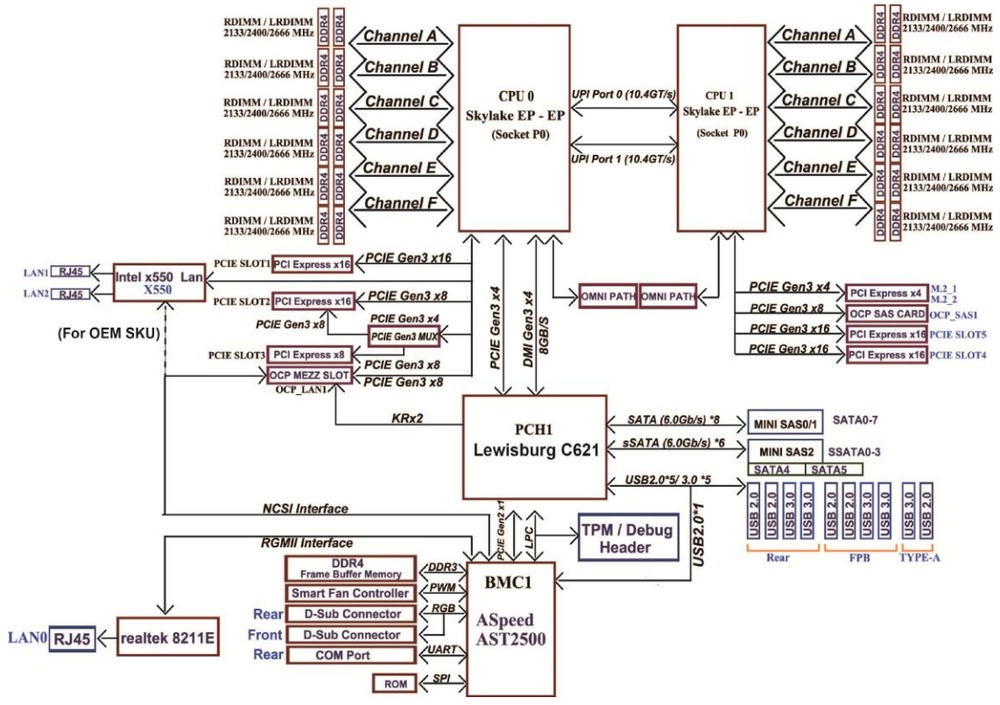

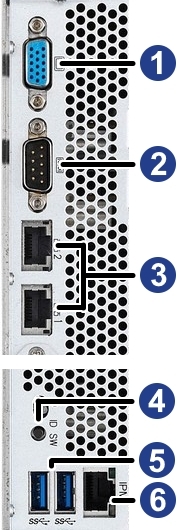

[ Rear Ports ][ Schematic ]

Tyan Thunder SX TN76-B7102 2U Server Picture 55734Tyan Thunder SX TN76-B7102 2U Server Picture 55735Tyan Thunder SX TN76-B7102 2U Server Picture 55736Tyan Thunder SX TN76-B7102 2U Server Picture 55733Tyan Thunder SX TN76-B7102 2U Server Picture 55746Tyan Thunder SX TN76-B7102 2U Server Picture 55748

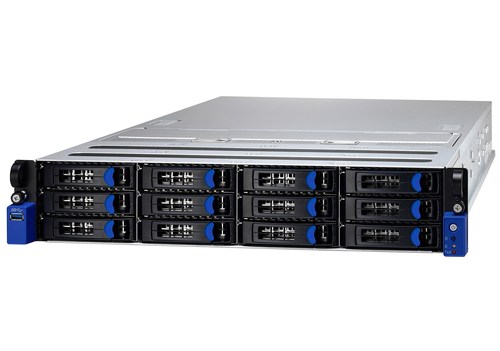

The Tyan Thunder SX TN76-B7102 is a barebones server housed in a 2U rackmount chassis. It comes with a proprietary motherboard that fits a pair of Xeon Scalable processors, twelve memory slots, and (optionally) two or three dedicated video cards, depending on their wattage (the PSU maxes out at 1000W total system draw, or 1200W when using a 220V source). For headless server workloads, however, a video card may not be required - and the motherboard includes a basic Aspeed graphics chip with VGA output for times when direct access is required. Other PCI-Express cards could potentially be installed instead of video cards, provided they fit within the expansion card housings this chassis provides and do not require supplemental SATA or Molex power.

In terms of storage, there are two internal M.2 slots for NVMe SSDs and twelve front-accessible bays supporting either 2.5 or 3.5-inch SATA drives. Dual 10Gb Ethernet ports are included for networking, along with a third 1GbE port that is dedicated for remote management (IPMI). Connectivity is rounded out with three USB 3.0 ports (one on the front and two on the back) and one old-school serial COM port. All of this is powered by a redundant 1200W Platinum-rated power supply.
William George (Product Development)
William George (Product Development) Says:
Because of the compact 2U form factor, this system is cooled by twelve 60mm fans - meaning it is *not* quiet. This is built for use in a data center or server room where performance is what matters, not acoustics.

Note: This system can accommodate a pair of Intel Xeon Scalable processors as well as one or two NVIDIA Telsa accelerator cards. However, due to limited space inside the chassis, those cards can only be used with CPUs rated for 165W or lower TDP. Hotter chips need larger coolers, which interfere with passive GPU ducting.

Model: Tyan B7102T76V12HR-2T-G

Socket  3647
CPU Compatibility  Purley
Form Factor  2U
Chipset Manufacturer  Intel
Chipset  C620
Front Side Bus  DMI 3.0
Network Connectivity  Dual 10G Networking
Network Controller  Intel X550-AT2
Cooling System  Heatsink and Fan
Number of Fans  12
Color  Black
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2933 MHz
Number of Slots  24
Maximum Size per Slot  64 GB
Maximum Amount Supported  1536 GB
Onboard Video
Chipset Manufacturer  ASpeed
Processor Type  AST2500
Maximum Resolution  1920x1200
VGA  1
External Connections
USB 3.2 Gen 1 (USB 3.0)  3
LAN (RJ45)  2
Mgmt LAN (RJ45)  1
Wireless Antenna Port  No
Serial (COM) Port  1
Internal Connections
SATA III 6.0Gbps  2
M.2 Connector  2
M.2 Support  x2 80mm NVMe
TPM (module sold separately)  1
Compatible TPM  TYAN TM-TPM2-I
Mini-SAS HD  3
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel C621 (2x Mini-SAS HD providing 8 SATA ports)
SATA III 6.0Gbps Controller 2  Intel C621 (2x SATA-DOM, 1x Mini-SAS HD providing 4 SATA ports)
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 3.0 x8
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x8
Slot 5  PCI Express 3.0 x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  RAID 0/1/10/5 (Intel RSTe)
Bluetooth  No
Integrated IO Shield  Yes
Remote Management  Onboard
BIOS Features
EZ Flash  No
OC Profiles  No
Height  87.6 mm (3.4 in)
Width  438 mm (17.2 in)
Depth  760 mm (29.9 in)
Net Weight  28 kg (61.7 lbs)

  • System
    Form Factor: 2U Rackmount
    Chassis Model: TN76
    Dimension (D x W x H): 29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm)
    Motherboard Name: S7102GM2NR-2T
    Motherboard Notification: # The motherboard not sold separately
    Gross Weight: 37 kg (82 lbs)
    Net weight: 28 kg (62 lbs)

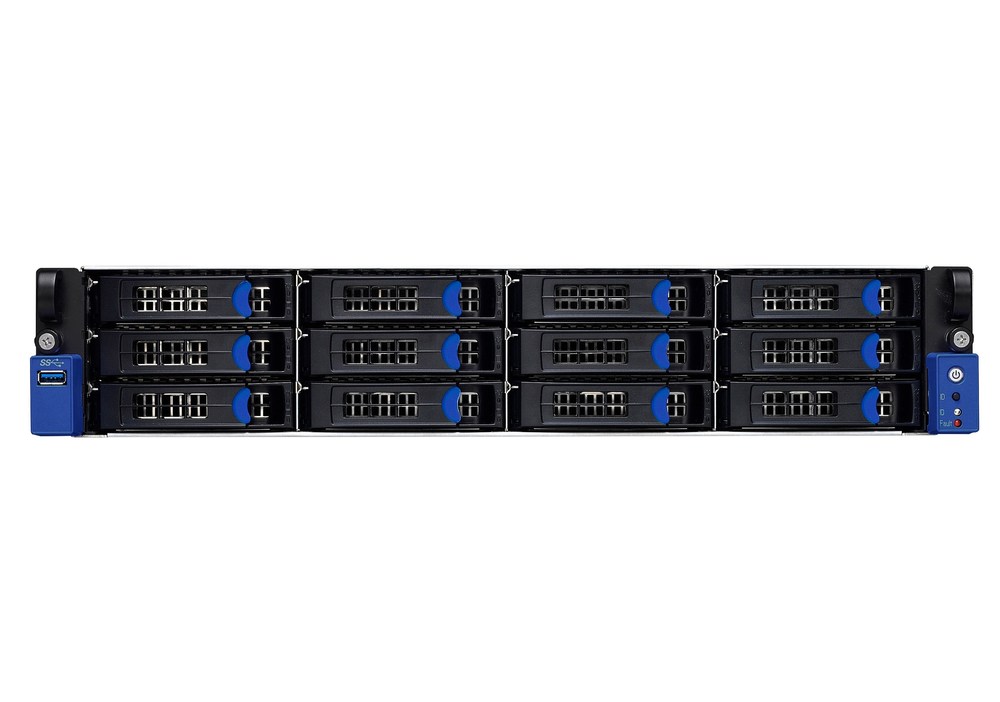

    Front Panel
    Buttons: (1) ID / (1) PWR w/ LED
    LEDs: (1) ID / (1) Warning
    I/O Ports: (1) USB 3.0 port

    External Drive Bay
    Qty / Type: (12) 3.5"/2.5" Hot-Swap SSD/HDD
    HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s
    Supported HDD Interface: (12) SATA 6Gb/s

    System Cooling Configuration
    FAN: (12) 6cm fans

    Power Supply
    Type: RPSU
    Input Range: AC 100-127V/12.47A / AC 200-240V/7.08A
    Output Watts: 1,000 Watts w/ 110V -- 1,200 Watts w/ 220V
    Efficiency: 80 plus Platinum
    Redundancy: 1+1

    Qty / Socket Type: (2) LGA3647
    Supported CPU Series: Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
    Thermal Design Power (TDP) Wattage: Max up to 205W
    System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
    Notification: 205W CPUs are supported by purchasing FRU-TH-0220 option with certain system configurations. Please contact Tyan Technical Support for additional information.

    PCH: Intel C621

    Supported DIMM Qty: (12)+(12) DIMM slots
    Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
    Memory channel: 6 Channels per CPU
    Memory voltage: 1.2V

    Expansion Slots
    Pre-install TYAN Riser Card: (1) MP016T76-L16-1F # riser card for (1) PCI-E Gen3 x16 slot / (1) M7102T76-R16-2F # riser card for (1) PCI-E Gen3 x16 slot or (2) x8 slots / (1) M7102T76-L16-2F # riser card for (1) PCI-E Gen3 x16 slot or (2) x8 slots
    Others: (1) PCI-E Gen3 x8 OCP 2.0 slot (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot
    Notification: # The item not sold separately

    Qty / Port: (2) 10GbE ports / (1) PHY
    Controller: Intel X550-AT2
    PHY: Realtek RTL8211E

    SATA: Connector: (2) Mini-SAS HD (8-ports)
    Controller: Intel C621
    Speed: 6Gb/s
    RAID: RAID 0/1/10/5 (Intel RSTe)
    sSATA: Connector: (2) SATA-DOM / (1) Mini-SAS HD (4-ports)
    Controller: Intel C621
    Speed: 6Gb/s
    RAID: RAID 0/1/10/5 (Intel RSTe)
    NVMe: Connector (M.2): (2) 2280 (by PCI-E interface)

    Connector type: D-Sub 15-pin
    Resolution: Up to 1920x1200
    Chipset: Aspeed AST2500

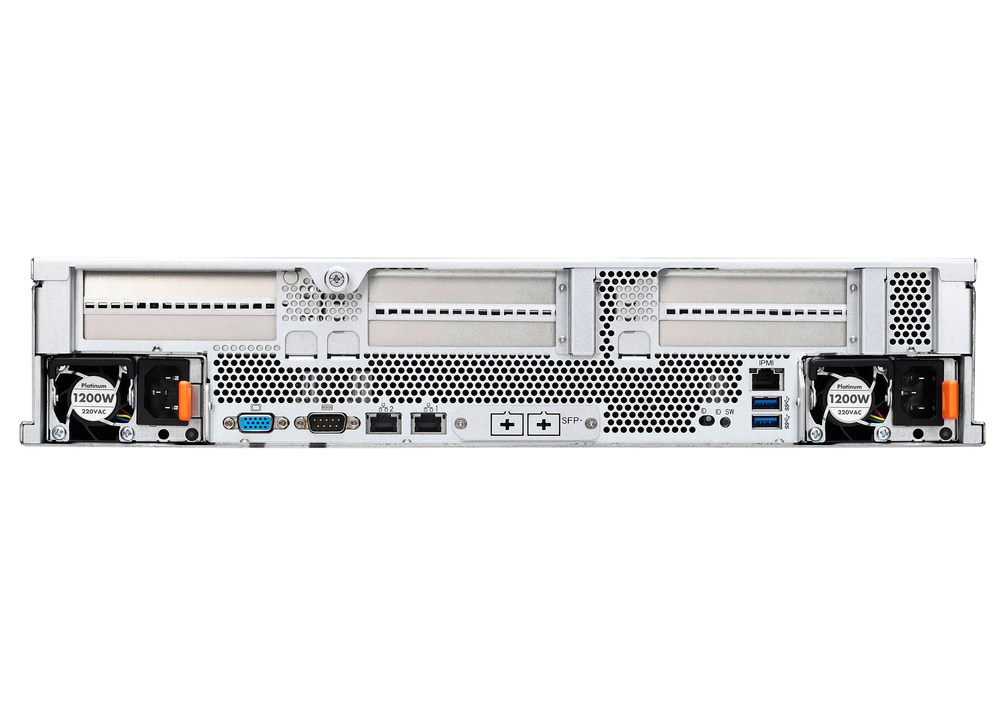

    I/O Ports
    USB: (2) USB3.0 ports (at rear) / (1) USB3.0 ports (at front)
    COM: (1) DB-9 COM port
    VGA: (1) D-Sub 15-pin port
    RJ-45: (2) 10GbE ports, (1) GbE dedicated for IPMI

    TPM (Optional)
    TPM Support: Please refer to our TPM supported list.

    System Monitoring
    Chipset: Aspeed AST2500
    Temperature: Monitors temperature for CPU & memory & system environment
    Voltage: Monitors voltage for CPU, memory, chipset & power supply
    LED: Over temperature warning indicator / Fan & PSU fail LED indicator
    Others: Watchdog timer support

    Server Management
    Onboard Chipset: Onboard Aspeed AST2500
    AST2500 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
    AST2500 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

    Brand / ROM size: AMI / 32MB
    Feature: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

    Operating System
    OS supported list: Please refer to our AVL support lists.

    FCC (DoC): Class A
    CE (DoC): Class A
    CB/LVD: Yes
    RCM: Class A
    VCCI: Class A
    Operating Environment: : Operating Temp.: 10 C ~ 35 C (50 F~ 95 F)
    Non-operating Temp.: - 40 C ~ 70 C (-40 F ~ 158 F)
    In/Non-operating Humidity: 90%, non-condensing at 35 C

    RoHS 6/6 Compliant: Yes

    Package Contains
    Barebone: (1) TN76-B7102 w/GTX GPU supported Barebone
    Manual: (1) Quick Installation Guide
    Installation CD: (1) TYAN Device Driver CD
    Rails: (1) Rack mounting rail kit, max. to 36-inches
