Tyan Thunder n6550EX (S4989)

Motherboard

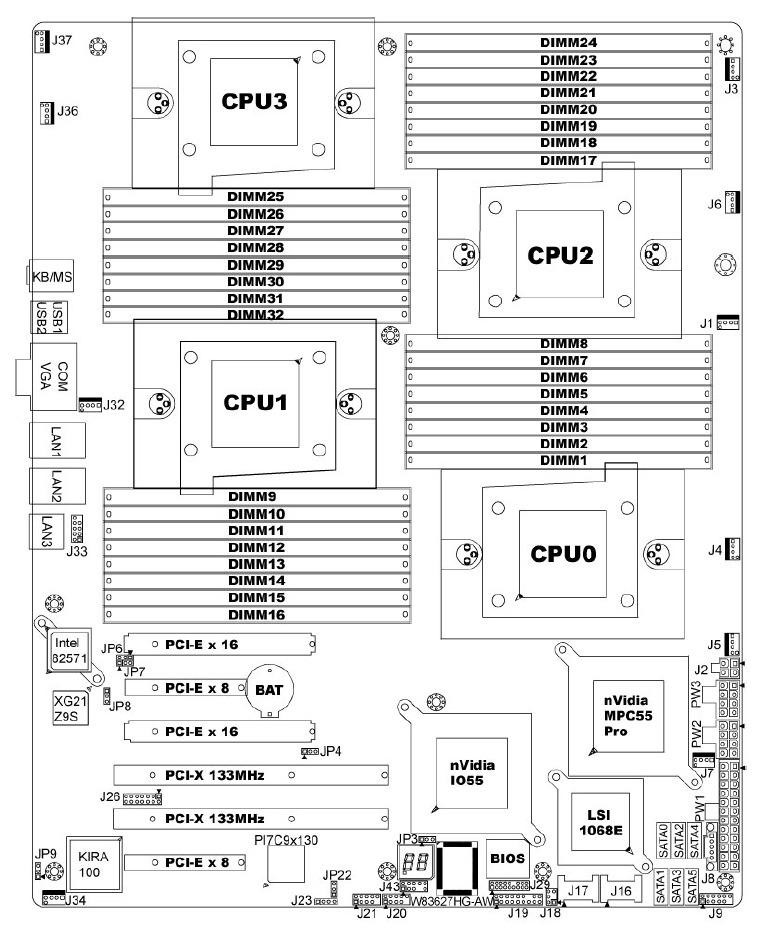

[ Rear Ports ][ Schematic ]

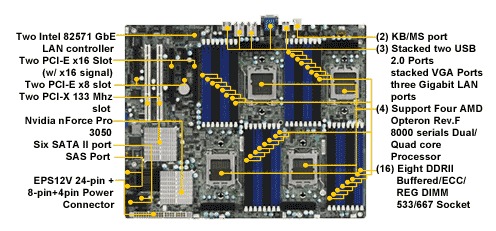

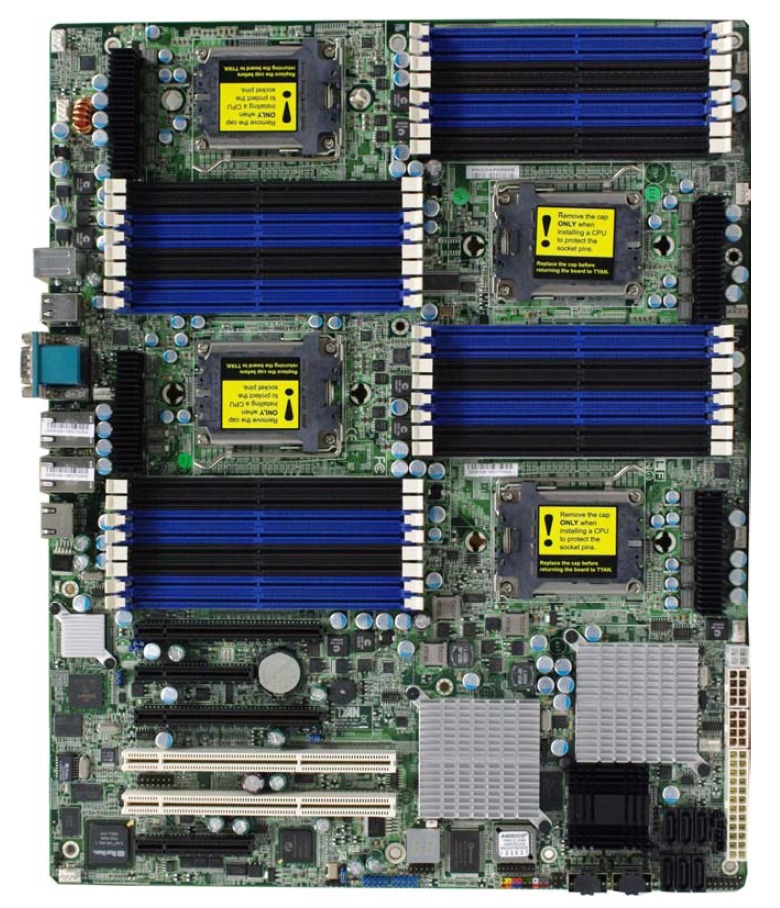

Tyan Thunder n6550EX (S4989) Picture 11806Tyan Thunder n6550EX (S4989) Picture 11807Tyan Thunder n6550EX (S4989) Picture 11808Tyan Thunder n6550EX (S4989) Picture 11809
Model: Tyan S4989

Specifications:
spacer
Socket  Quad Socket F
CPU Compatibility  Up to four AMD Opteron Rev. F
Form Factor  SSI
Chipset Manufacturer  nVidia
Chipset  NPF3600 + NPF3050
Network Connectivity  Gigabit Networking
Cooling System  Heatsink
Number of Fans  0
Memory Support
Type  DDR2 ECC
Maximum Speed  667 MHz
Number of Slots  32
Maximum Size per Slot  4 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  XGI
Processor Type  Z9S
Onboard Memory  32 MB
VGA  1
External Connections
USB 2.0  2
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
LAN (RJ45)  3
Serial (COM) Port  1
Internal Connections
USB 2.0  2 (providing 4 ports)
Expansion Slots
Slot 1  PCI Express x16
Slot 2  PCI Express x8
Slot 3  PCI Express x16
Slot 4  PCI-X 133 MHz
Slot 5  PCI-X 133 MHz
Slot 6  PCI Express x8
Additional Information
RAID Support  RAID 0, 1, 5, 10 capable
Dimensions
Height  406.4 mm (16.0 in)
Width  330.2 mm (13.0 in)

Internal Connections
SATA2: 6
