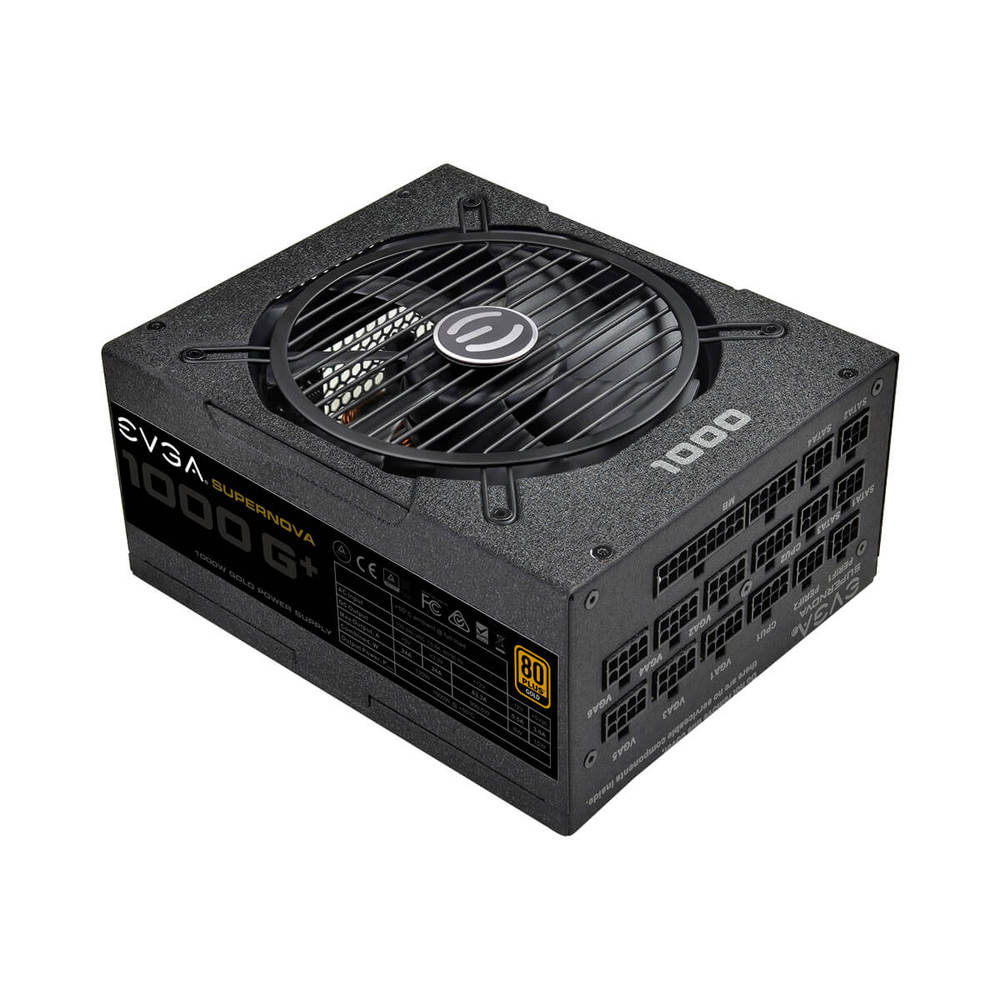

The EVGA SuperNOVA 1000W G+ is a high-quality, 80 PLUS Gold-certified power supply unit - complete with entirely modular wiring for clean assembly and a 135mm fan for cooling. The fan is very quiet, and ramps up or down in speed as needed to keep the unit cool. In terms of physical size, this model is slightly longer than the 750W and lower versions - meaning it may not fit in some more compact cases.
William George (Marketing Project Manager) Says:
The cabling used by this power supply is the same as most other SuperNOVA models, making it relatively easy to replace a failed PSU or upgrade to a higher wattage later on if needed.
The cabling used by this power supply is the same as most other SuperNOVA models, making it relatively easy to replace a failed PSU or upgrade to a higher wattage later on if needed.
Model: EVGA 120-GP-1000-X1
Specifications
| Maximum Power | 1000 W |
| Standard Compliance | ATX |
| Peak Efficiency | >92 % |
| Efficiency Certification | 80 PLUS Gold |
| Cooling System | 135mm Fan |
| Safety Compliance | OVP, UVP, OPP, SCP, OCP, OTP |
| Industry Compliance | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
Power Distribution | |
| +3.3V rail | 24 amps |
| +5V rail | 24 amps |
| +12V1 rail | 83.3 amps |

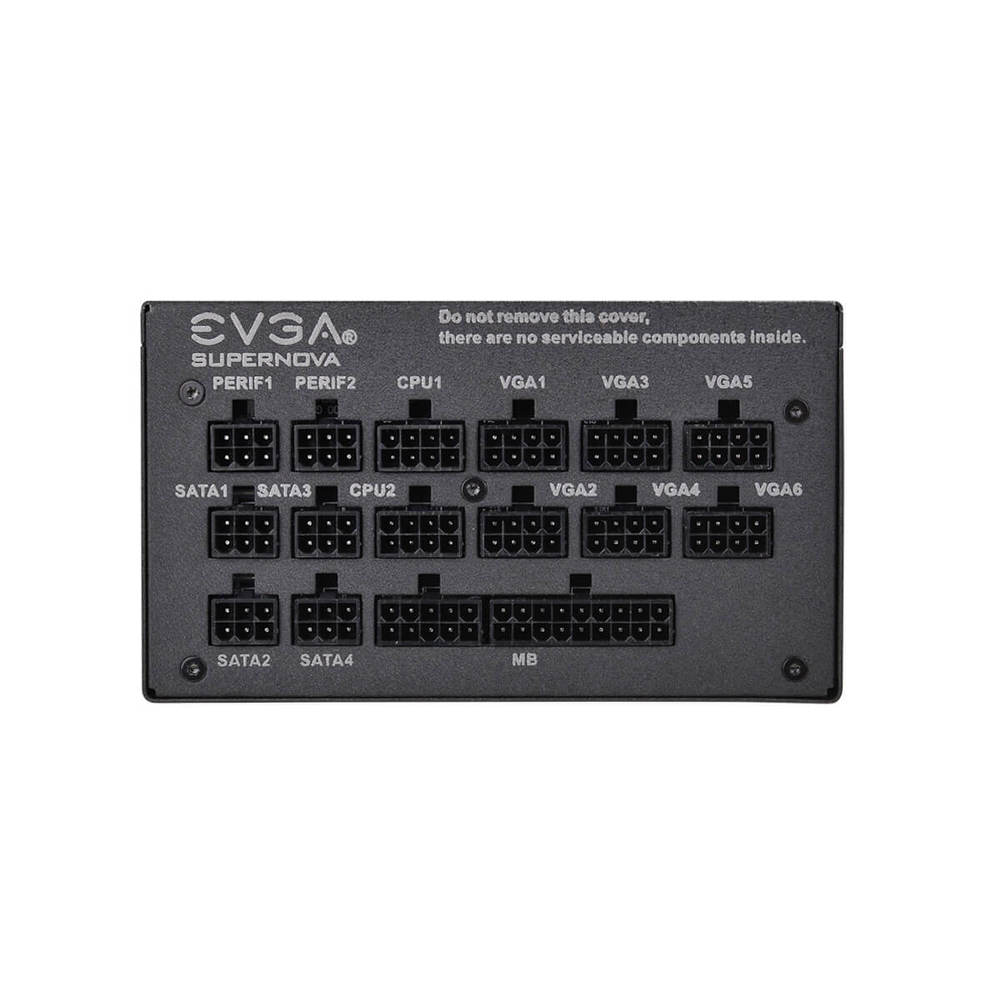

Connectors | |
| Molex | 6 |
| SATA | 12 |
| Floppy | 2 |
| PCIe 8-Pin | 6 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C13 |
Dimensions | |
| Height | 85 mm (3.3 in) |
| Width | 150 mm (5.9 in) |
| Depth | 180 mm (7.1 in) |
| Net Weight | 3.18 kg (7.0 lbs) |

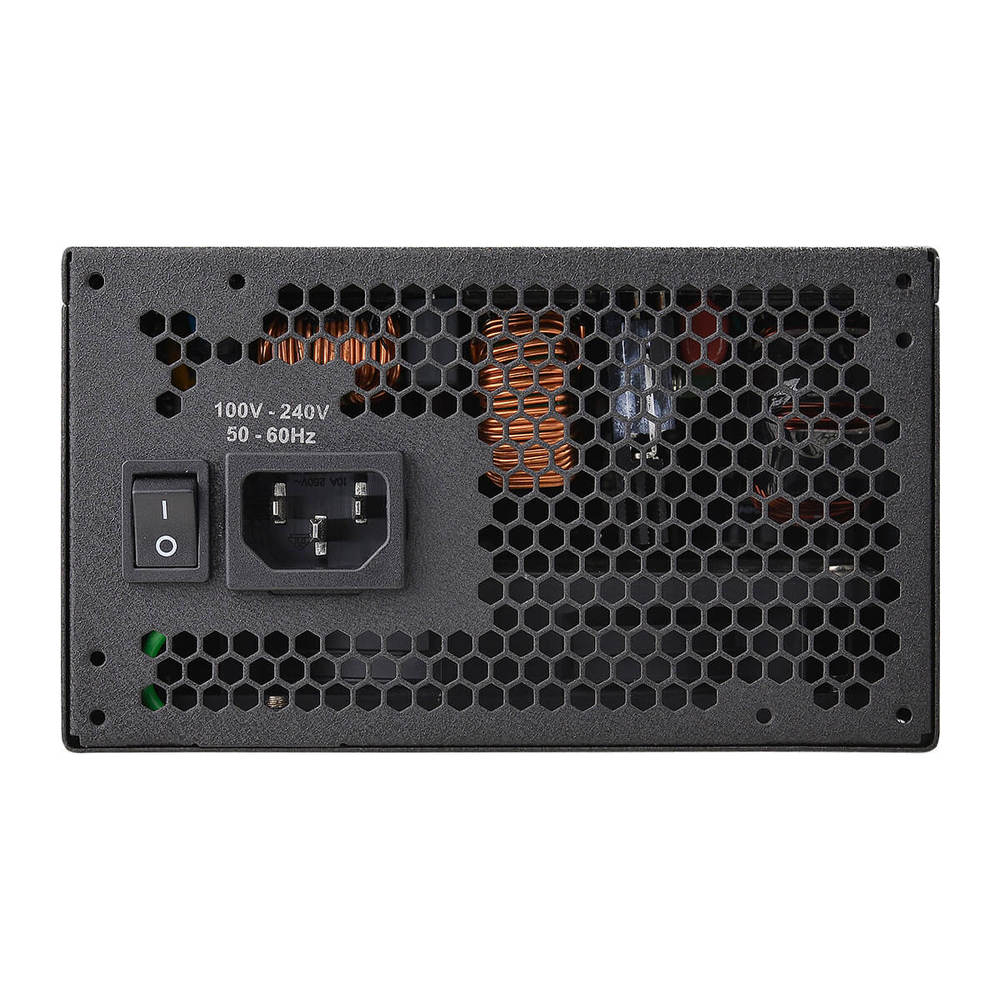

Input | |
| Voltage | 115 - 240 Vac |
| Frequency | 50 - 60 Hz |
