EVGA SuperNOVA 650W GM SFX Power Supply

Power Supply

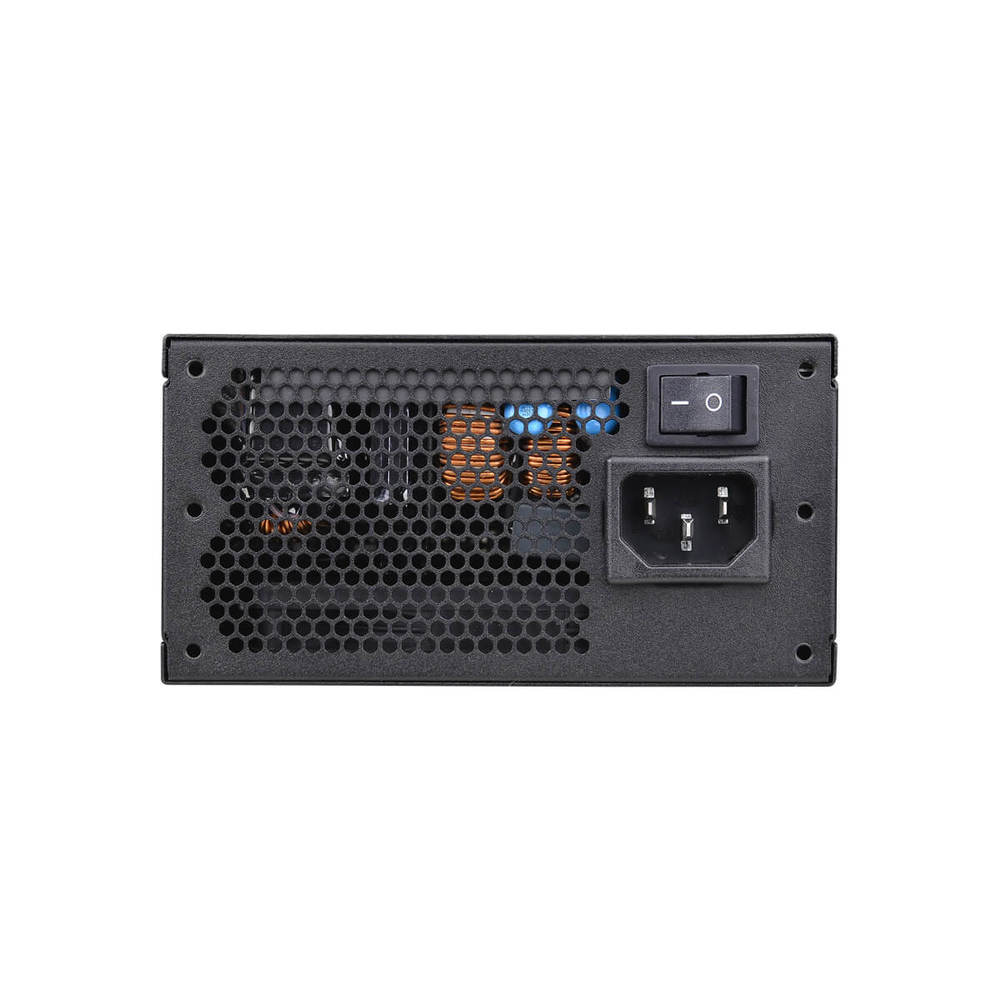

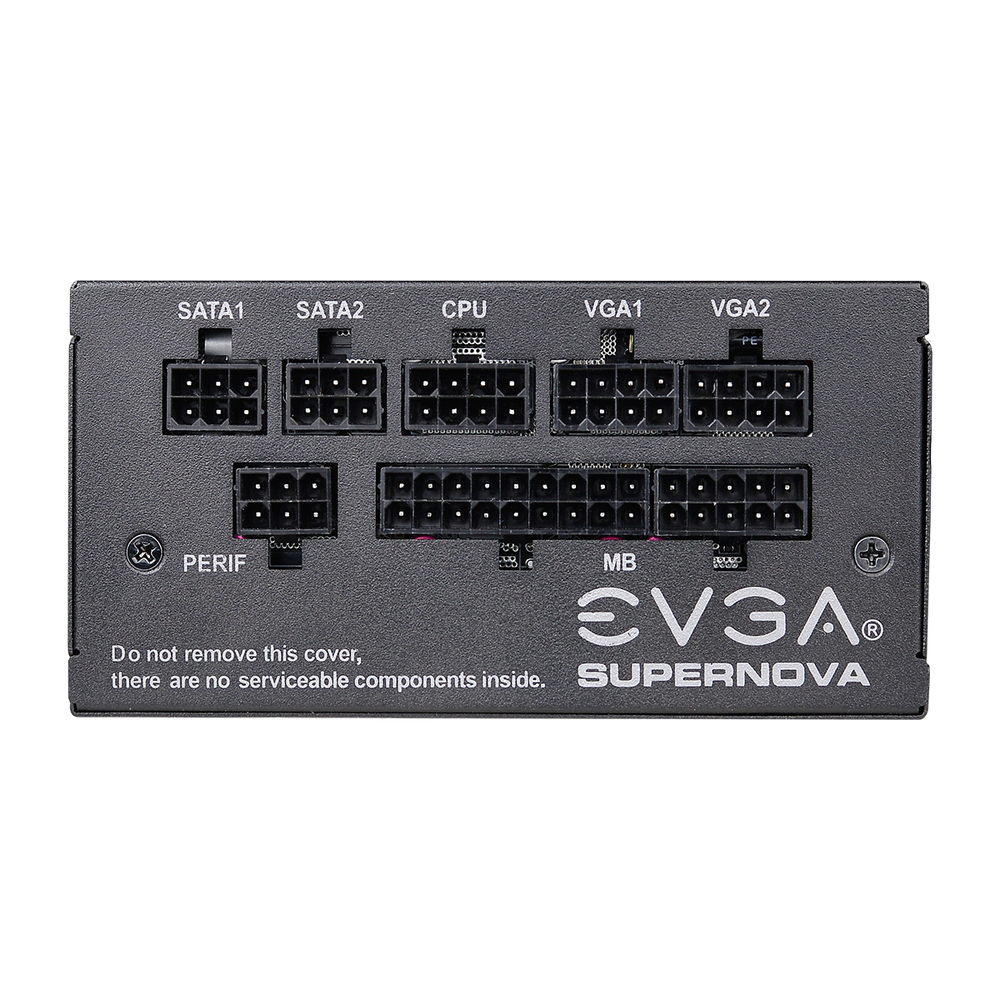

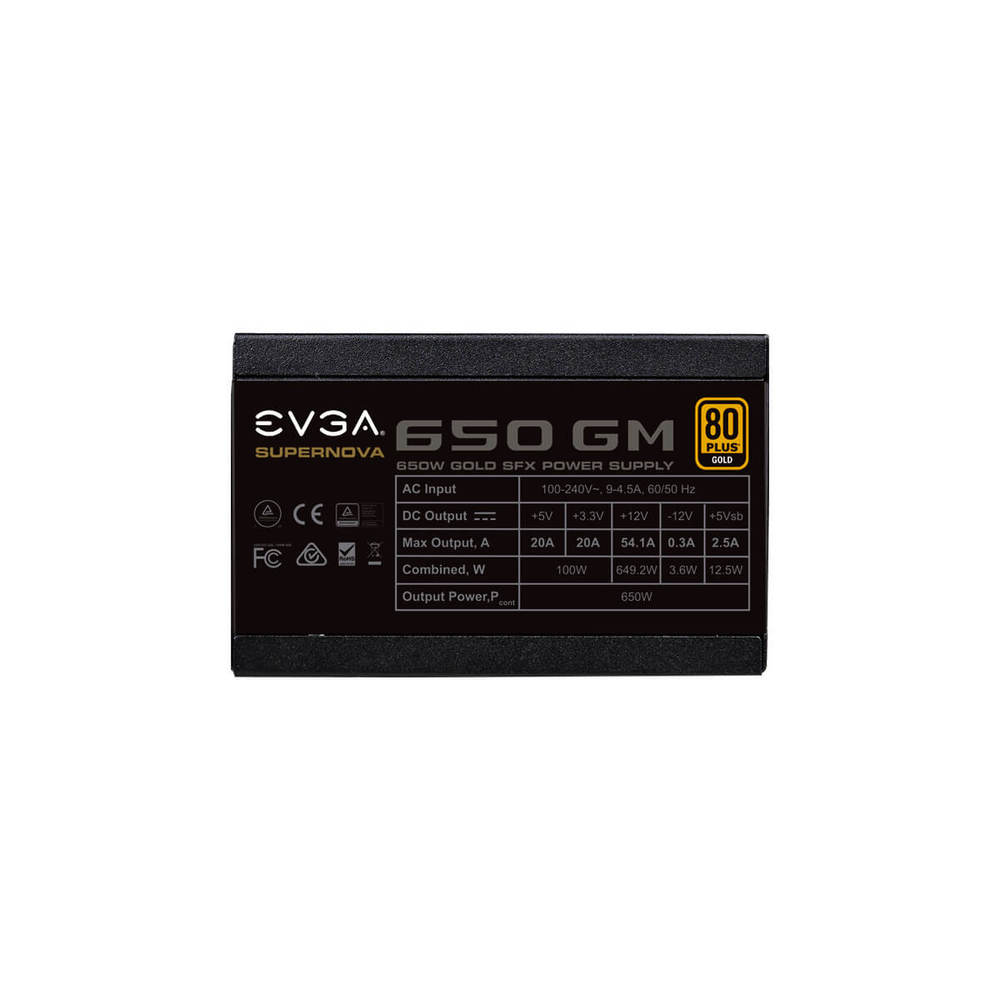

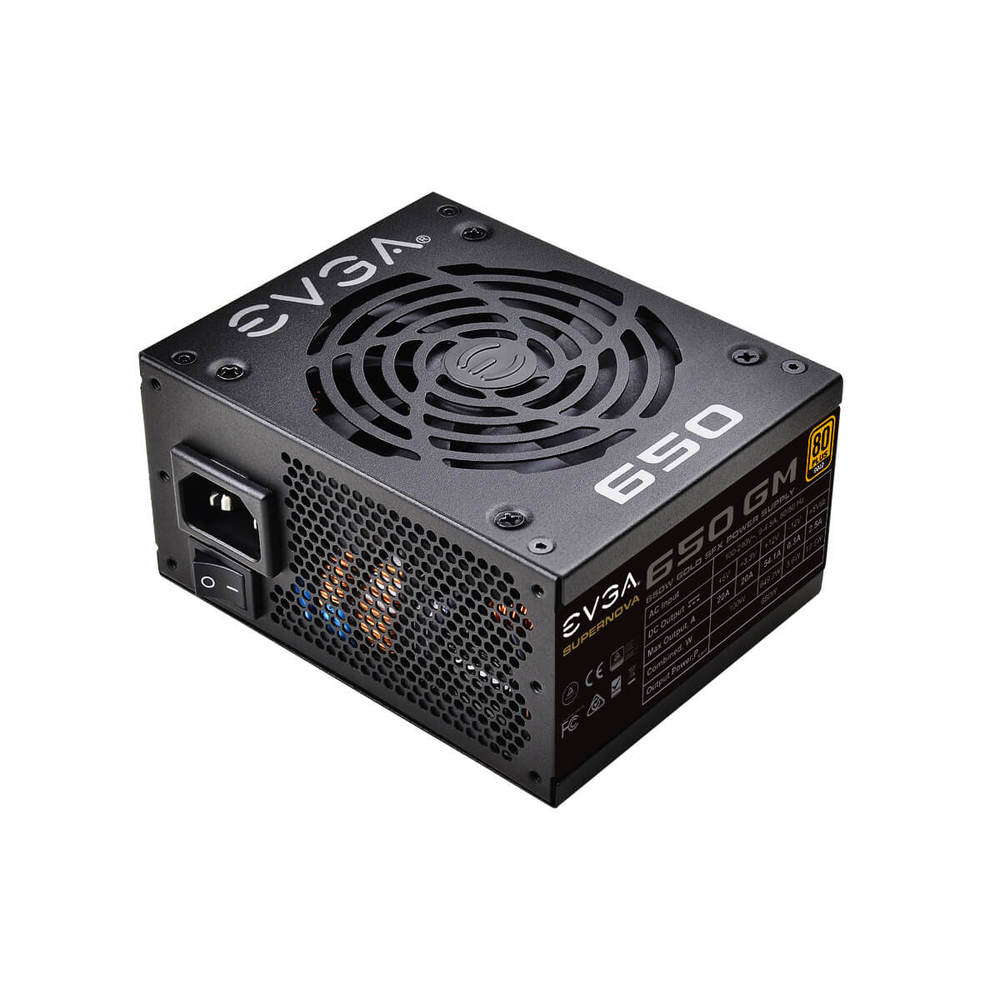

EVGA SuperNOVA 650W GM SFX Power Supply Picture 60945EVGA SuperNOVA 650W GM SFX Power Supply Picture 60946EVGA SuperNOVA 650W GM SFX Power Supply Picture 60947EVGA SuperNOVA 650W GM SFX Power Supply Picture 60948
The EVGA SuperNOVA 650W GM SFX power supply is a small form factor PSU, ideally suited to use in our compact ITX cases. It is very efficient, with an 80 PLUS Gold rating, while offering plenty of wattage for any hardware combination that our slim chassis can accommodate. Cooling is handled by a 92mm fan which turns off entirely at low power loads.

Please note that due to the smaller size of this PSU, it cannot be used in larger cases which are designed for full ATX power supplies.
Model: EVGA 123-GM-0650-Y1

Specifications:
spacer
Maximum Power  650 W
Standard Compliance  TUV, CB, CE, FCC, cTUVus, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Peak Efficiency  90 %
Efficiency Certification  80 PLUS Gold
Cooling System  92mm Fan
Noise Level  0-40 dB
Safety Compliance  Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Industry Compliance  TUV, CB, CE, FCC, cTUVus, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Power Distribution
+3.3V rail  20 amps
+5V rail  20 amps
+12V1 rail  54.1 amps
Connectors
Molex  4
SATA  6
Floppy  1
PCI Express 8-pin  4
CPU Power 8/4 pin  1
External Connector Type  C13
Dimensions
Height  63 mm (2.5 in)
Width  99 mm (3.9 in)
Depth  124 mm (4.9 in)
Net Weight  3 kg (6.6 lbs)
Input
Voltage  100-240 Vac
Frequency  50/60 Hz

Cooling is semi passive, which means the fan will be fully stopped under light temperature and loads.




Configure a small form factor PC with the EVGA SuperNOVA 650W GM SFX Power Supply.
