FSP 900W ATX/PS2 Redundant Power Supply

Power Supply

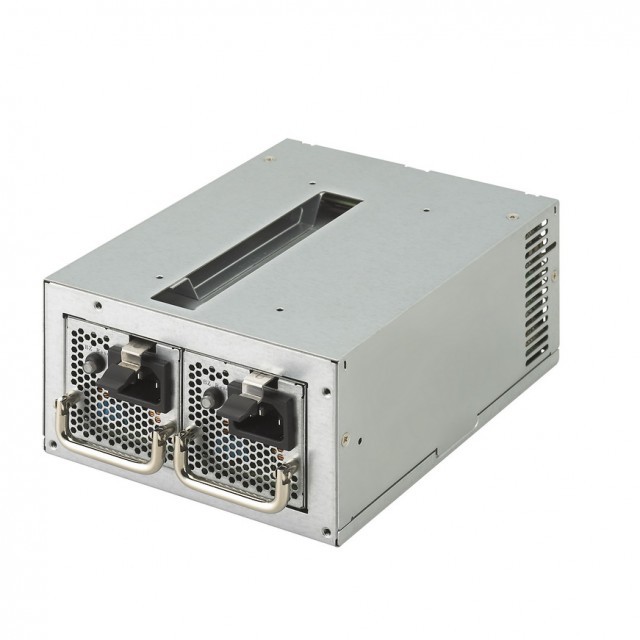

FSP 900W ATX/PS2 Redundant Power Supply Picture 73817
This 900W, 80 PLUS Gold-certified power supply from FSP fits in a normal ATX PSU mount but offers full redundancy with a pair of removable, hot-swappable modules. Unfortunately the trade-off for redundant operation is that the wiring on this unit is very limited and noise levels are higher than more traditional power supplies.
William George (Product Development)
William George (Product Development) Says:
Because of the limitations of this power supply, we are only able to offer it in specialized configurations for pre-approved customers.
Model: FSP FSP900-50REB

Specifications:
spacer
Maximum Power  900 W
Peak Efficiency  90 %
Efficiency Certification  80 PLUS Gold
Cooling System  Dual 40mm Fans
Power Distribution
+3.3V rail  20 amps
+5V rail  20 amps
+12V1 rail  75 amps

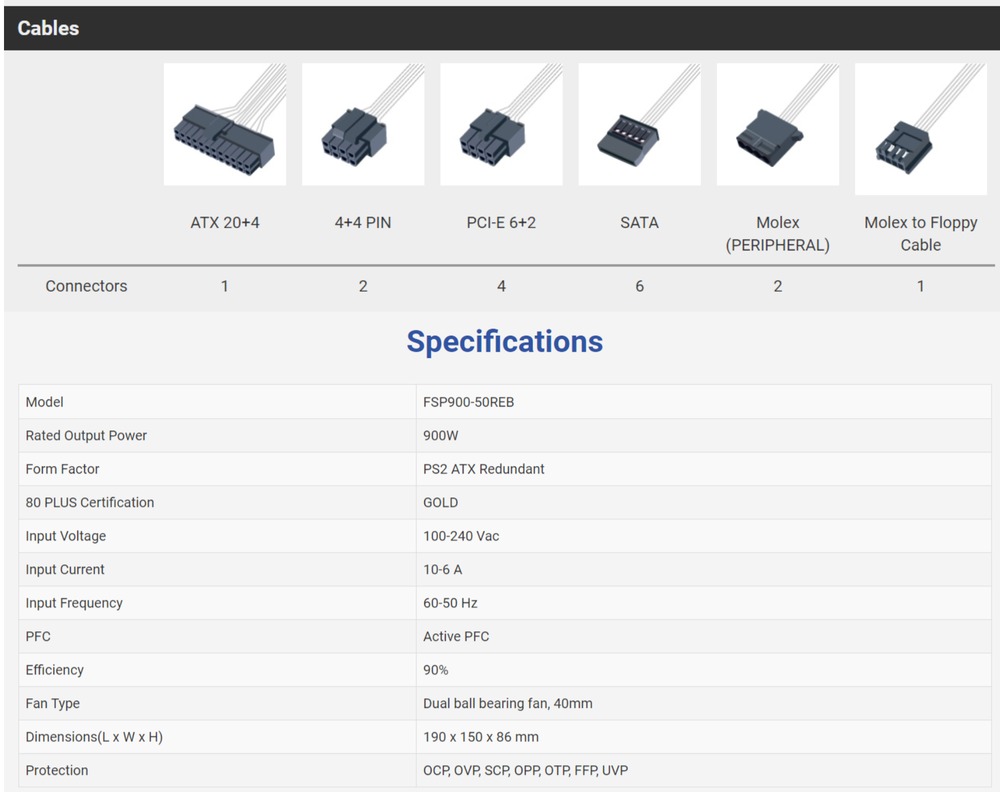

Connectors
Molex  2
SATA  6
PCI Express 8-pin  4
CPU Power 8 pin  1
CPU Power 8/4 pin  1
External Connector Type  C13
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  190 mm (7.5 in)
Net Weight  3.057 kg (6.7 lbs)
Input
Voltage  90-264 Vac
Frequency  47-63 Hz
