IStarUSA 500W Mini Redundant Power Supply

Power Supply

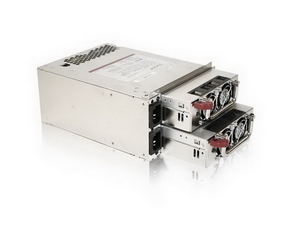

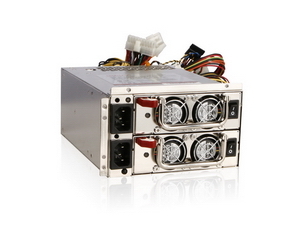

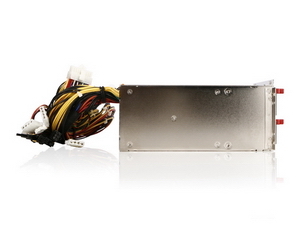

IStarUSA 500W Mini Redundant Power Supply Picture 18360IStarUSA 500W Mini Redundant Power Supply Picture 18362IStarUSA 500W Mini Redundant Power Supply Picture 18363
Redundant power supplies are highly recommended for computers where downtime must be avoided at all costs - servers being the primary systems with such needs. Two independent power supplies are housed within this unit, each needing its own AC power connection; in this way, though, a failure of a single power supply or cable does not interrupt operation of the computer.

This 500W supply is ideal for low- to mid-range servers, and an upgraded 950W model is also available for more demanding hardware configurations (like dual CPU setups).
Model: Sparkle IS-500R8P

Specifications:
spacer
Maximum Power  500 W
Peak Efficiency  74 %
Cooling System  2x2 40mm Fans
Power Distribution
+3.3V rail  24 amps
+5V rail  30 amps
+12V1 rail  36 amps
Combined +12V Maximum  36 amps
Connectors
Molex  8
SATA  4
PCI Express  2
CPU Power 4 pin  1
CPU Power 8 pin  1
Dimensions
Height  85.1 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  198.9 mm (7.8 in)
Input
Voltage  100-240 Vac
Frequency  47-63 Hz


Configure a custom computer with the IStarUSA 500W Mini Redundant Power Supply.
