Zippy 800W 2U Power Supply

Power Supply

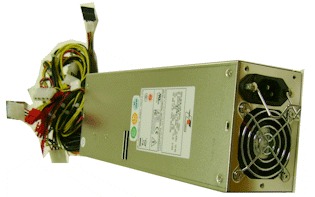

Zippy 800W 2U Power Supply Picture 23913
This 800W supply is specially sized for our 2U rackmount cases, and provides plenty of wattage for high-end severs with multiple CPUs.
Model: Zippy/EMACS P2M-5800V

Specifications:
spacer
Maximum Power  800 W
Peak Efficiency  84 %
Efficiency Certification  80 PLUS
Cooling System  60mm Fan
Safety Compliance  UL, CSA, TUV
Power Distribution
+3.3V rail  25 amps
+5V rail  25 amps
Combined +12V Maximum  61 amps
Connectors
Molex  5
SATA  2
Floppy  2
PCI Express 8-pin  4
CPU Power 4 pin  1
CPU Power 8 pin  2
Dimensions
Height  70 mm (2.8 in)
Width  100 mm (3.9 in)
Depth  280 mm (11.0 in)
Input
Voltage  100 ~ 240 Vac
Frequency  47 ~ 63 HZ Hz


Configure a custom computer with the Zippy 800W 2U Power Supply.
