AMD FirePro W9000 PCI-E 6GB

Video Card

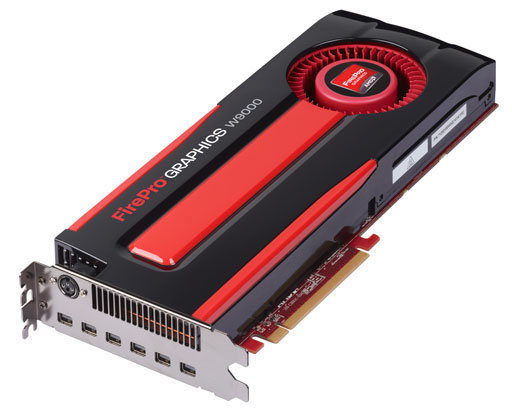

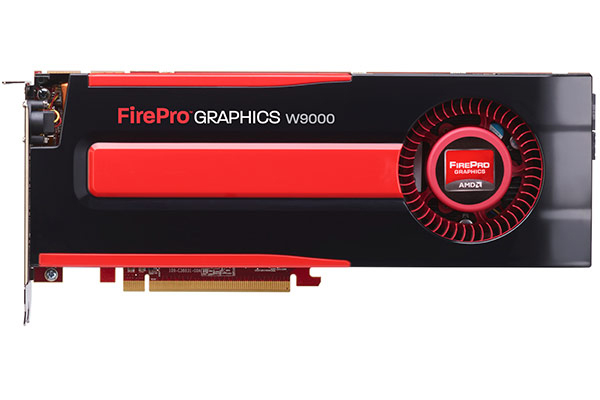

AMD FirePro W9000 PCI-E 6GB Picture 21294AMD FirePro W9000 PCI-E 6GB Picture 21295
Model: AMD 100-505632

Specifications:
spacer
Chipset Manufacturer  ATI
Product Line  FirePro
Motherboard Connection  PCI Express 3.0 x16
Maximum DVI Resolution  2560x1600
Maximum Monitors Supported  6
HDCP Compliant  Yes
GPU Specifications
Core Speed  975 MHz
Stream Processors  2048
Memory Specifications
Video Memory  6GB
Memory Type  GDDR5
Memory Bus Width  384-bit
Bandwidth  264 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 11
OpenGL Support  4.2
Outputs
Port 1  Mini DisplayPort
Port 2  Mini DisplayPort
Port 3  Mini DisplayPort
Port 4  Mini DisplayPort
Port 5  Mini DisplayPort
Port 6  Mini DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E

This comes with two active mini DisplayPort to DVI adapters which in most cases will limit the maximum resolution to 1920x1200.

To use additional non-DisplayPort connections, more adapters would need to be purchased - see AMD Eyefinity Validated Dongles chart: http://support.amd.com/us/eyefinity/Pages/eyefinity-dongles.aspx




with the AMD FirePro W9000 PCI-E 6GB.
