Asus GeForce GTX 1650 Phoenix 4GB Open Air

Video Card

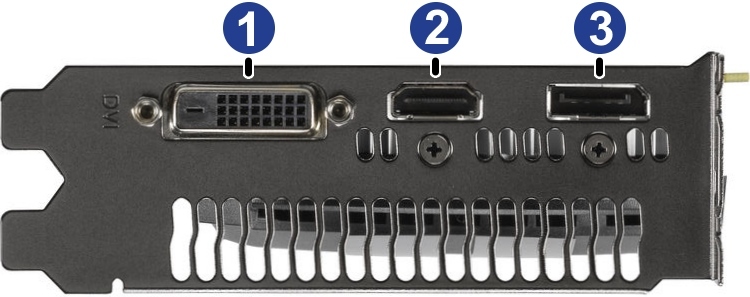

[ Rear Ports ]

Asus GeForce GTX 1650 Phoenix 4GB Open Air Picture 54910Asus GeForce GTX 1650 Phoenix 4GB Open Air Picture 54911Asus GeForce GTX 1650 Phoenix 4GB Open Air Picture 54912
NVIDIA's GeForce GTX 1650 4GB is an entry-level GPU, replacing the older GTX 1050. While it is based on Turing technology, the older naming and numbering scheme is still used because this card is missing some of the more advanced features that are found on the RTX 2000-series. That means no hardware ray tracing (RT cores) or machine learning inference (Tensor cores) - but software that needs those features would be better off on a more powerful video card anyway.

This particular model from Asus has a single-fan, open-air cooling system. That is great for keeping a single card cool and quiet, and while it does vent heat back into the chassis (rather than outside of the case) the 1650 generates very little heat to begin with. If you plan to have multiple video cards, though, a model with a blower-style fan and rear heat exhaust will be a better choice.

Finally, in regards to connectivity, the GTX 1650 supports up to three monitors. One of each standard video output is provided: DVI-D, HDMI 2.0b, and DisplayPort 1.4.
Model: Asus PH-GTX1650-O4G

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum DVI Resolution  2560x1600
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  3
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1485 MHz
Boost Speed  1665 Mhz
Stream Processors  896
Memory Specifications
Video Memory  4GB
Memory Type  GDDR5
Memory Speed  8,000 MHz
Memory Bus Width  128-bit
Bandwidth  128 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  Dual-Link DVI
Port 2  HDMI
Port 3  DisplayPort
Power Connectors
Plug 1  None
Length  190 mm (7.5 in)
Height  110 mm (4.3 in)
Width  38 mm (1.5 in)

Configure a custom computer with the Asus GeForce GTX 1650 Phoenix 4GB Open Air.
