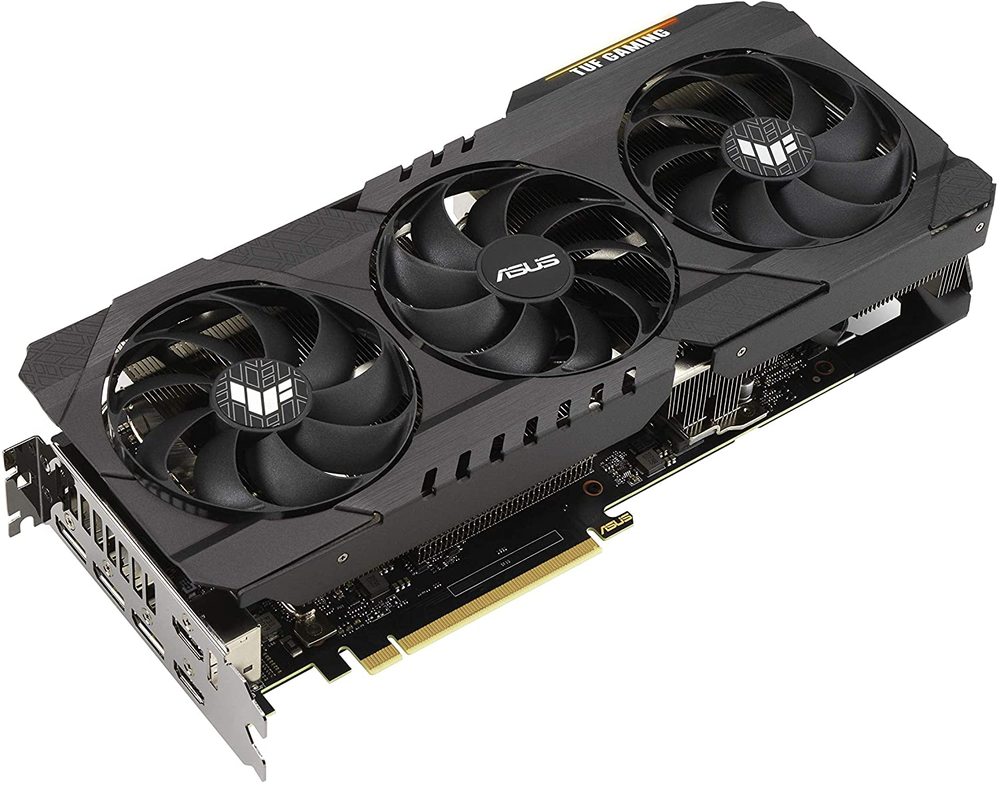

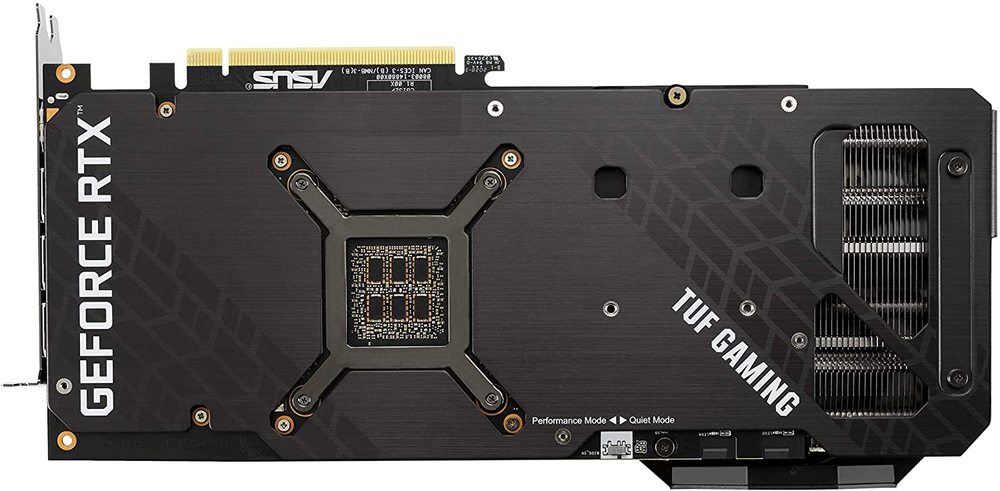

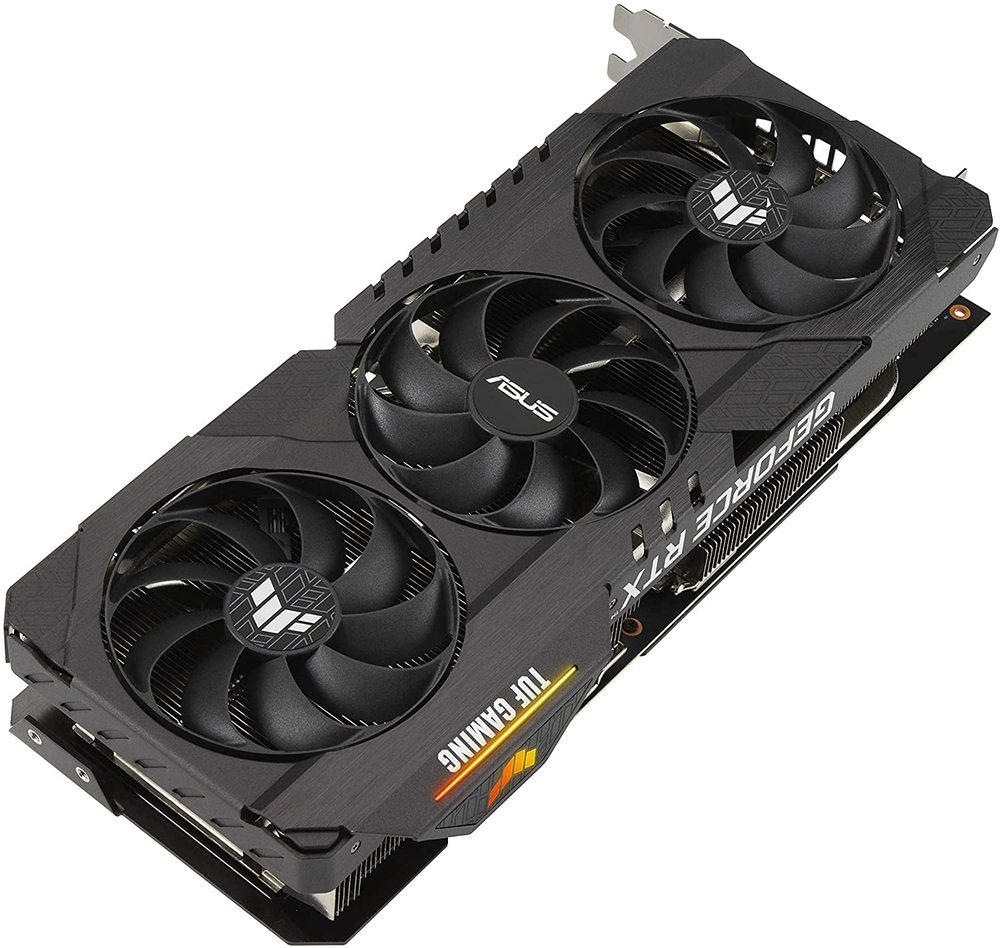

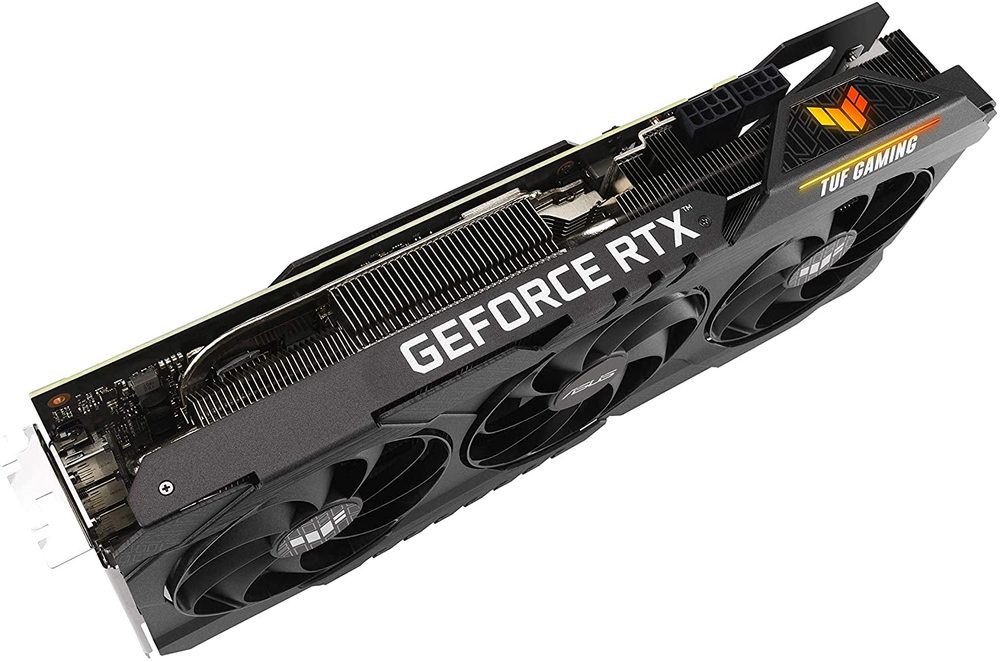

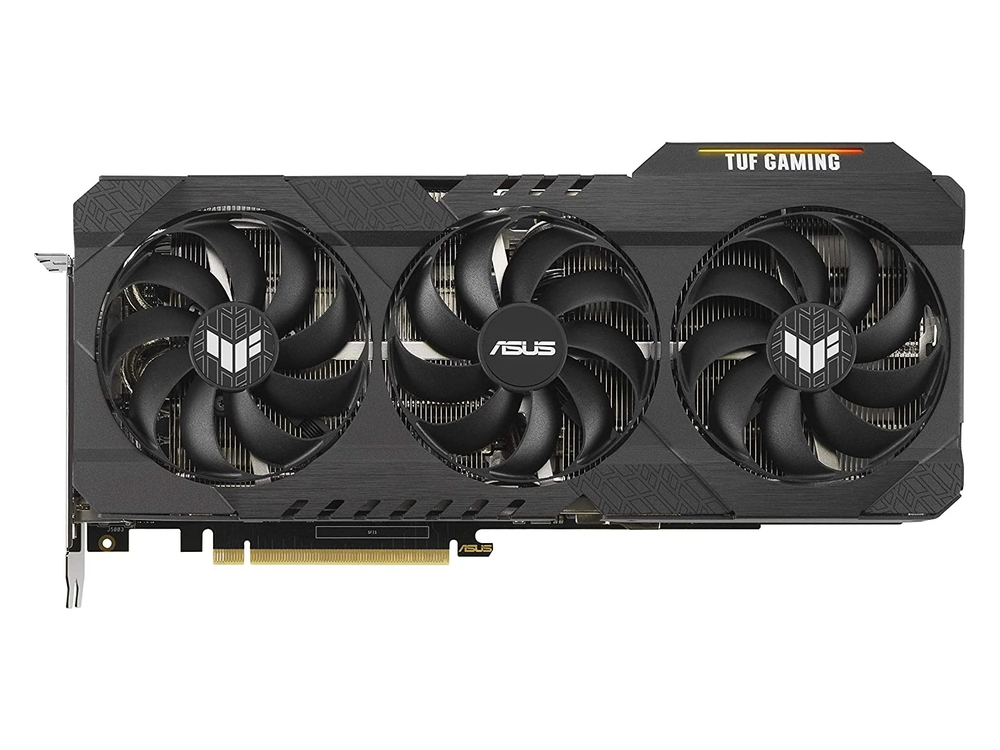

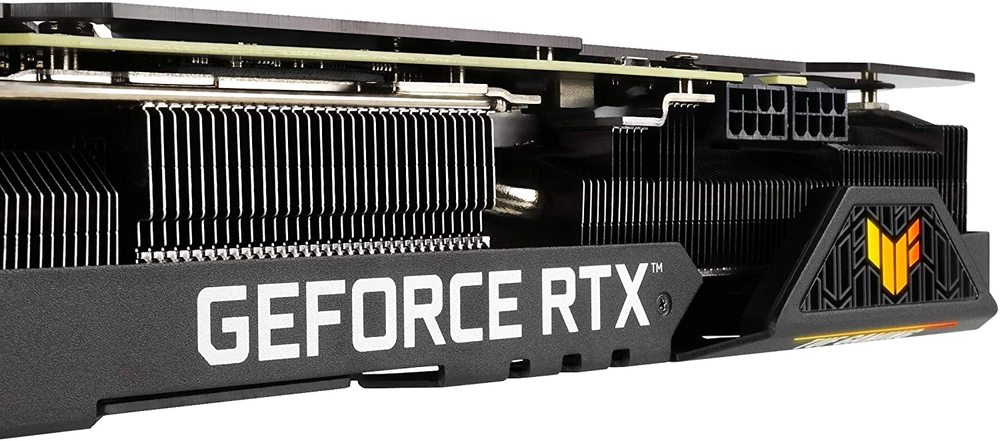

Asus GeForce RTX 3080 TUF OC 10GB Open Air

Video Card

Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65849Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65850Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65851Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65852Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65853Asus GeForce RTX 3080 TUF OC 10GB Open Air Picture 65854
NVIDIA's GeForce RTX 3080 is the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3080 can be up to twice as fast in some applications - but not every program or game will see that much gain.

This variant from Asus uses a triple-fan cooling layout. It is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a model with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are two HDMI 2.1 and three DisplayPort 1.4a plugs supporting up to four simultaneous displays at a maximum resolution of 7680x4320 (8K).

Model: Asus TUF-RTX3080-O10G-GAMING

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3080
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
Lite Hash Rate No
GPU Specifications
Core Speed 1,440 MHz
Boost Speed 1,815 Mhz
Stream Processors 8704
Memory Specifications
Video Memory 10GB
Memory Type GDDR6X
Memory Speed 19,000 MHz
Memory Bus Width 320-bit
Bandwidth 760 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2+
Outputs
Port 1 HDMI
Port 2 DisplayPort
Port 3 DisplayPort
Port 4 DisplayPort
Port 5 HDMI
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Dimensions
Length 300 mm (11.8 in)
Height 127 mm (5.0 in)
Width 51.7 mm (2.0 in)
Net Weight 1.398 kg (3.1 lbs)
