NVIDIA's GeForce RTX 3080 is the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3080 can be up to twice as fast in some applications - but not every program or game will see that much gain.

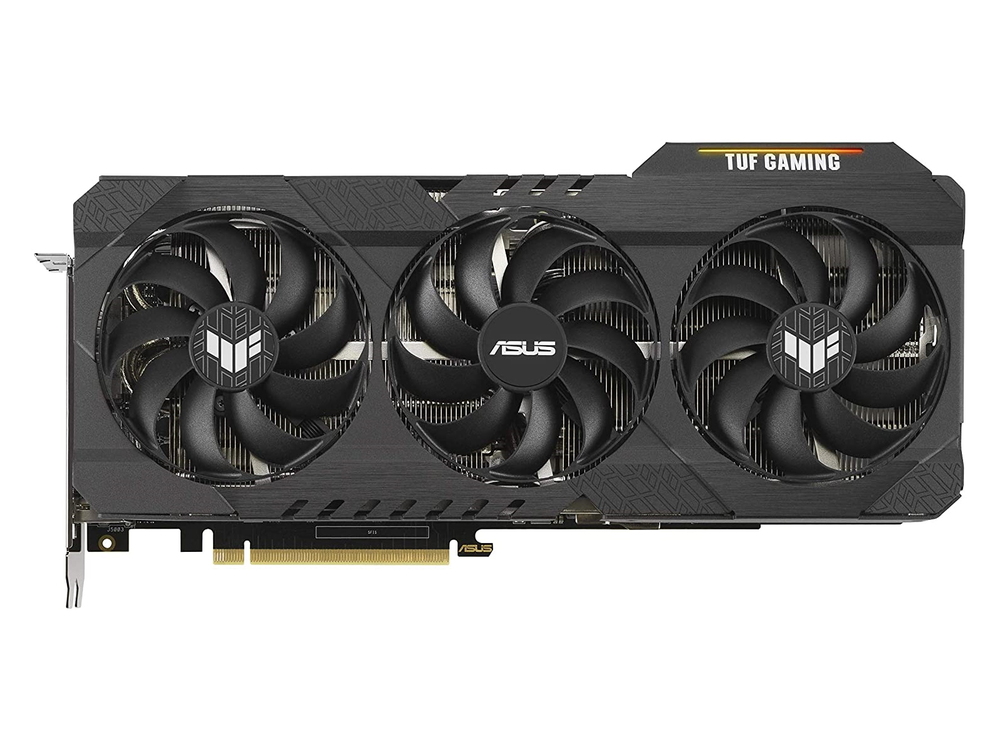

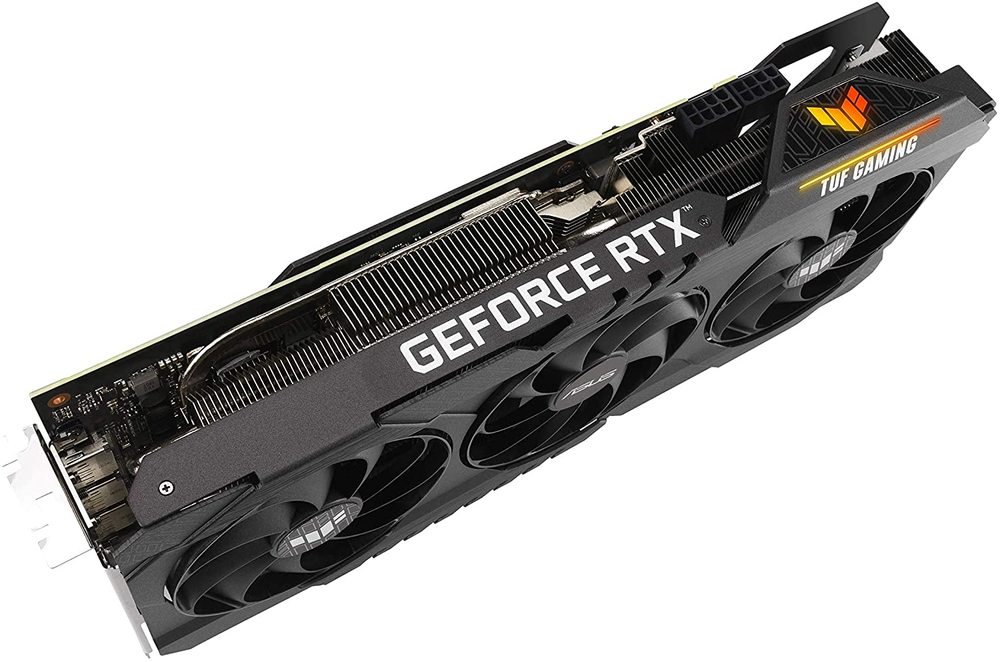

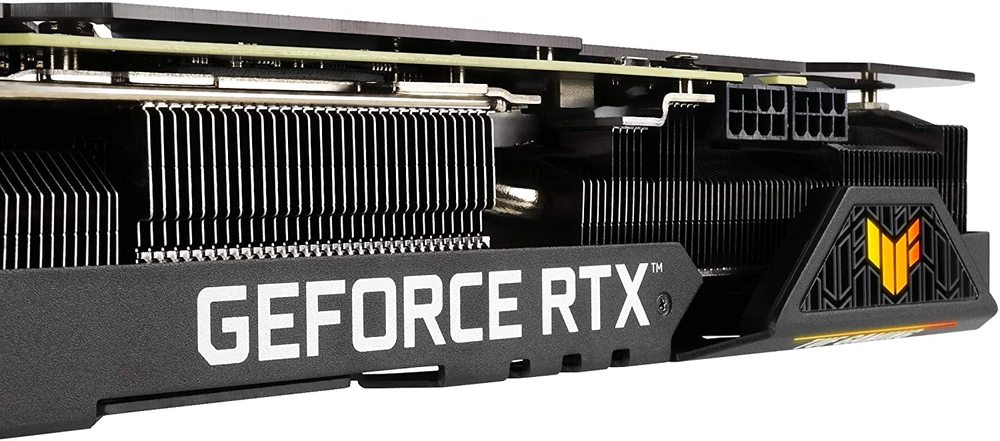

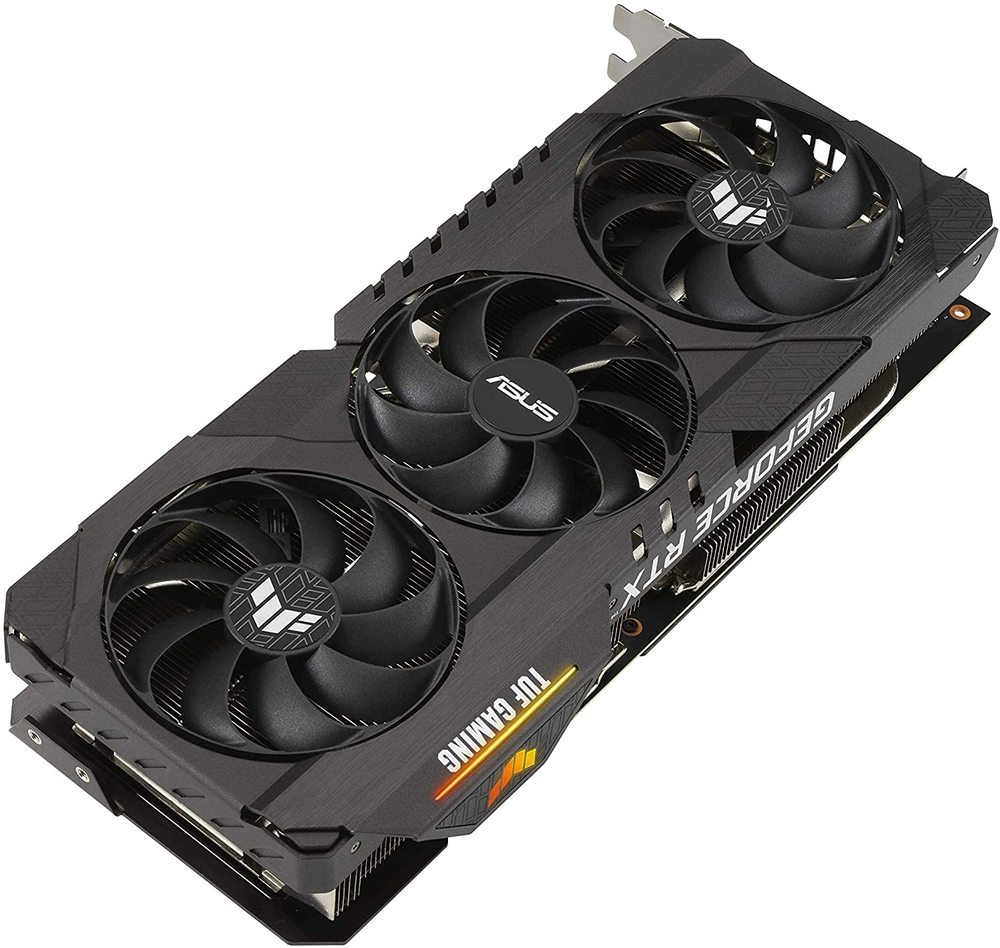

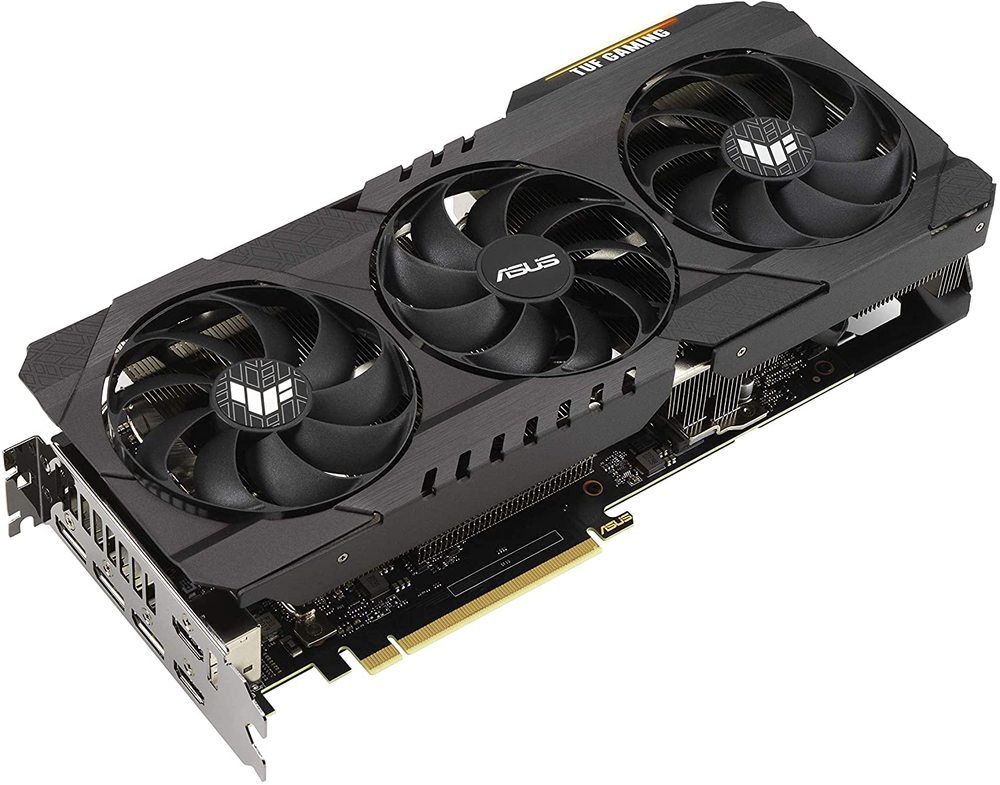

This variant from Asus uses a triple-fan cooling layout. It is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a model with a blower-style fan and rear heat exhaust would be much better.
Finally, in regards to connectivity, there are two HDMI 2.1 and three DisplayPort 1.4a plugs supporting up to four simultaneous displays at a maximum resolution of 7680x4320 (8K).
This variant from Asus uses a triple-fan cooling layout. It is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a model with a blower-style fan and rear heat exhaust would be much better.
Finally, in regards to connectivity, there are two HDMI 2.1 and three DisplayPort 1.4a plugs supporting up to four simultaneous displays at a maximum resolution of 7680x4320 (8K).
Model: Asus TUF-RTX3080-O10G-V2
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Series | RTX 3000 |
Model | 3080 |
Motherboard Connection | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
Lite Hash Rate | Yes |
GPU Specifications | |
Core Speed | 1,440 MHz |
Boost Speed | 1,815 Mhz |
Stream Processors | 8704 |
Memory Specifications | |
Video Memory | 10GB |
Memory Type | GDDR6X |
Memory Speed | 19,000 MHz |
Memory Bus Width | 320-bit |
Bandwidth | 760 GB/s |
Additional Information | |
Cooling System | Open Air Type |
DirectX Support | DirectX 12 |
CUDA Support | 11 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2+ |

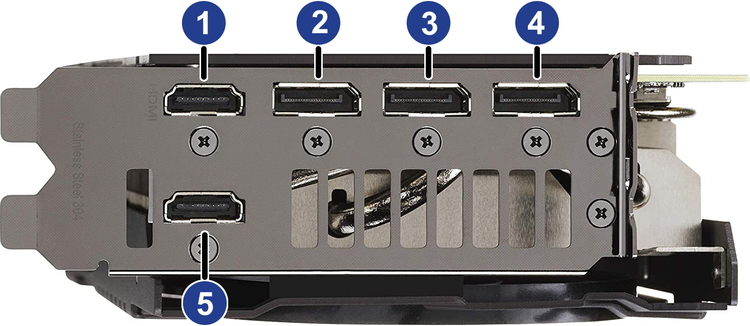

Outputs | |
Port 1 | HDMI |
Port 2 | DisplayPort |
Port 3 | DisplayPort |
Port 4 | DisplayPort |
Port 5 | HDMI |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Plug 2 | 8-pin PCI-E |
Dimensions | |
Length | 300 mm (11.8 in) |
Height | 127 mm (5.0 in) |
Width | 51.7 mm (2.0 in) |
Net Weight | 1.398 kg (3.1 lbs) |
