EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air

Video Card

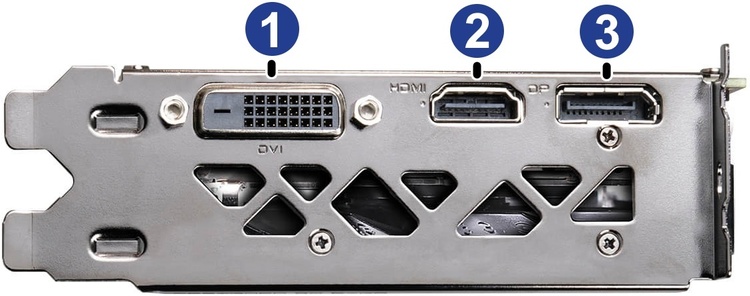

[ Rear Ports ]

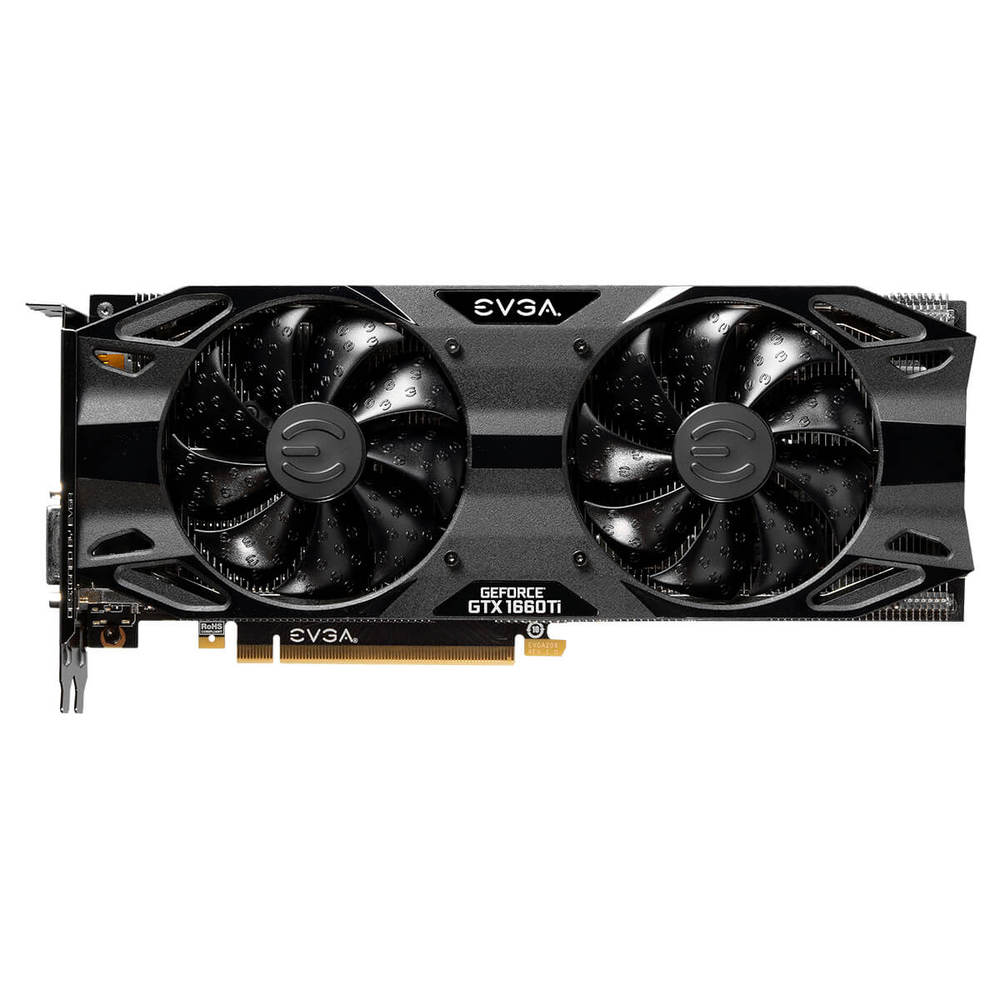

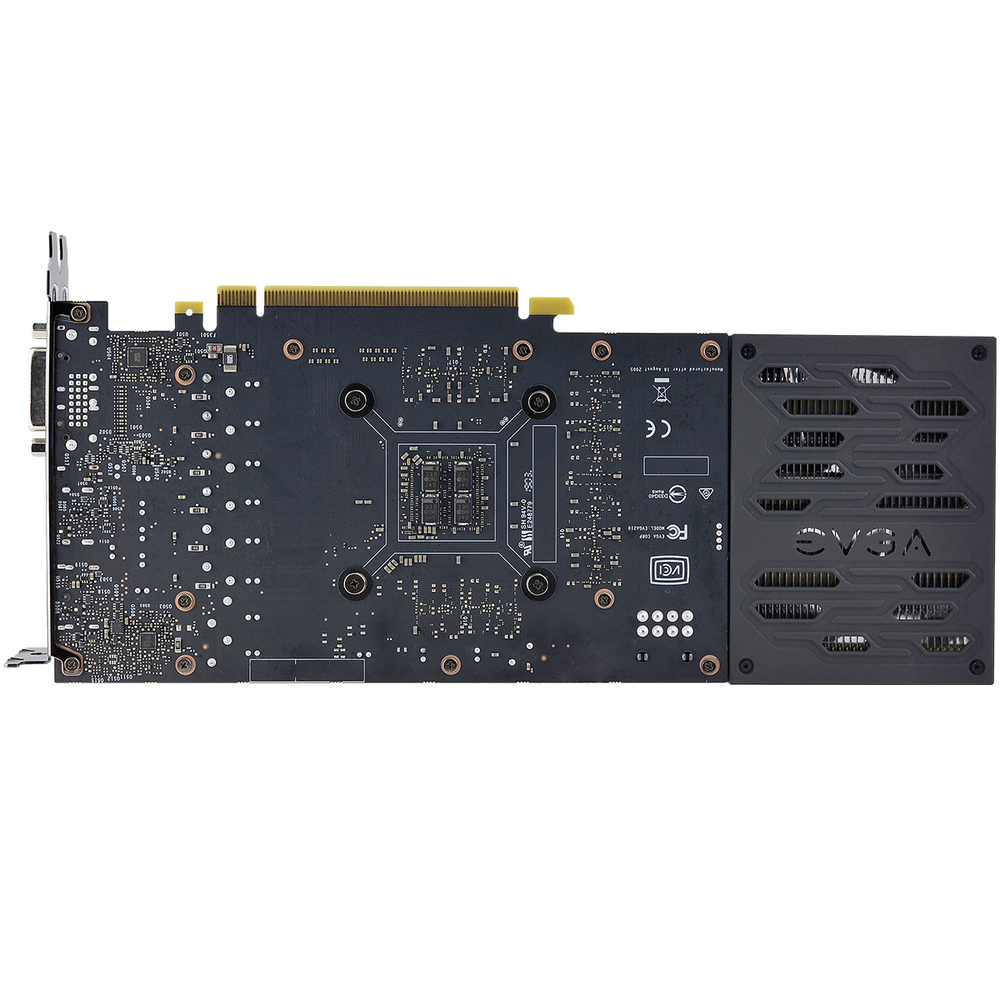

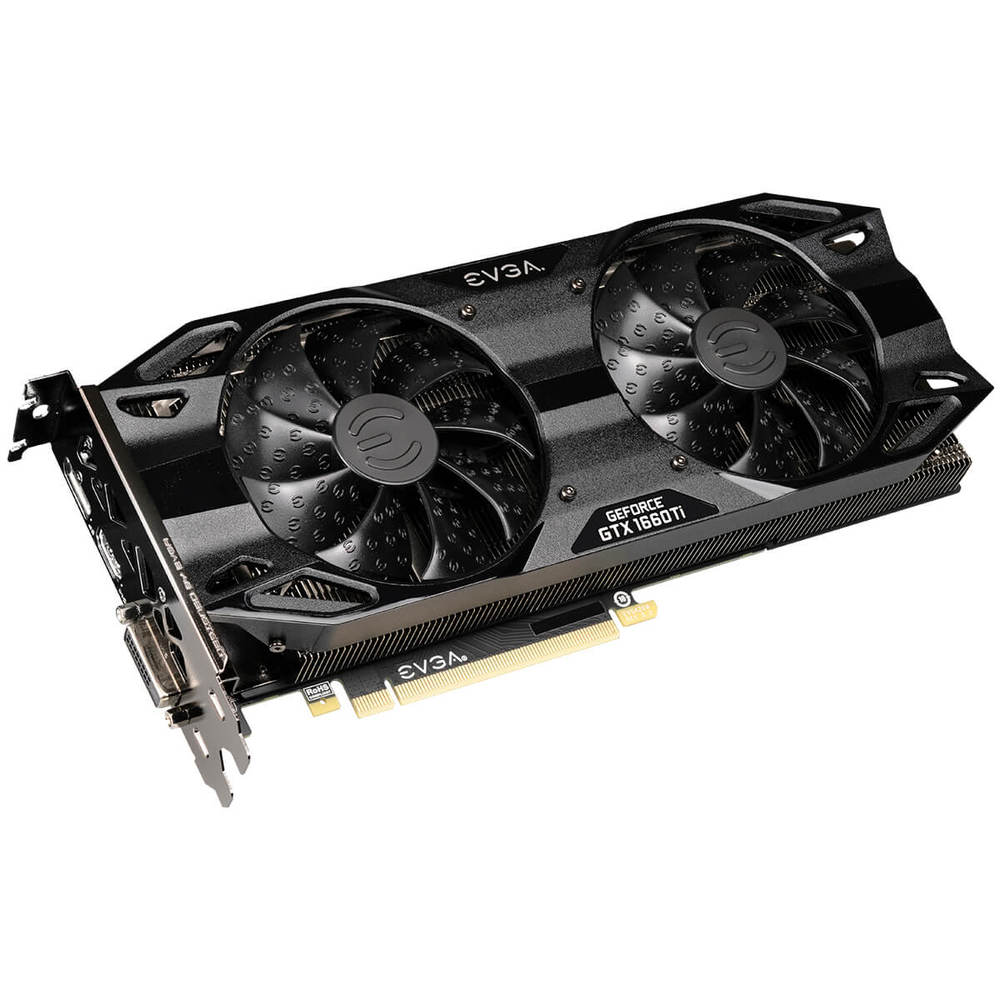

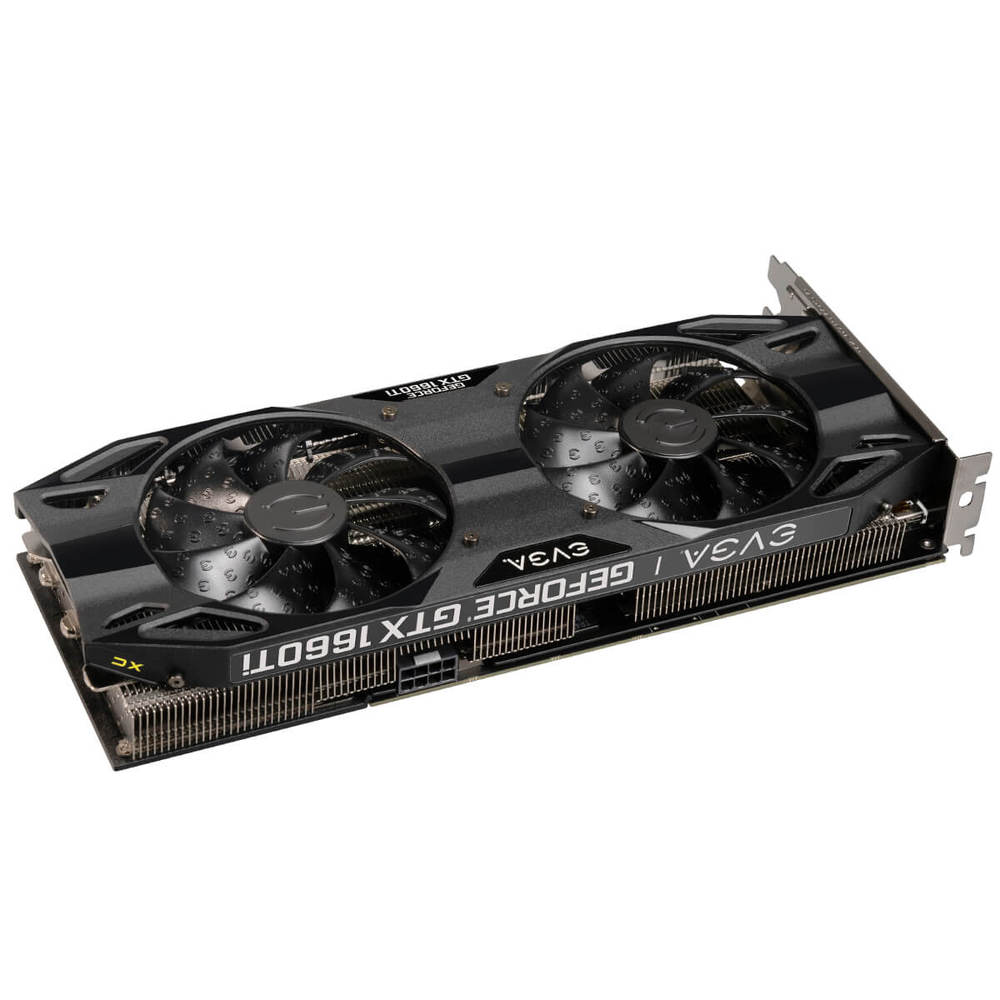

EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air Picture 54099EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air Picture 54098EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air Picture 54100EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air Picture 54101EVGA GeForce GTX 1660 Ti XC Ultra 6GB Open Air Picture 54104
NVIDIA's GeForce GTX 1660 Ti 6GB is a mid-range GPU, replacing the older GTX 1060. While it is based on Turing technology, the older naming and numbering scheme is still used because this card is missing some of the more advanced features that are found on the RTX 2000-series. That means no hardware ray tracing (RT cores) or machine learning inference (Tensor cores) - but for more traditional applications which don't use those capabilities the GTX 1660 Ti is a strong contender.

This particular model from EVGA features a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. When installing more than one video card in a system, models with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the EVGA GTX 1660 Ti supports up to three monitors. Most of the video output standards from the past decade are included, with one connection each for DVI-D, HDMI, and DisplayPort.
Model: EVGA 06G-P4-1267-KR

Specifications:
spacer
Chipset Manufacturer  nVidia
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum DVI Resolution  2560x1600
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  4096x2160
Maximum Monitors Supported  3
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1,500 MHz
Boost Speed  1,860 Mhz
Stream Processors  1,536
Memory Specifications
Video Memory  6GB
Memory Type  GDDR6
Memory Speed  12,000 MHz
Memory Bus Width  192-bit
Bandwidth  288 GB/s
Additional Information
Cooling System  Quiet Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  DVI
Port 2  HDMI
Port 3  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Dimensions
Length  268 mm (10.6 in)
Height  112 mm (4.4 in)
Width  40 mm (1.6 in)
