EVGA GeForce RTX 2080 SUPER XC 8GB Open Air

Video Card

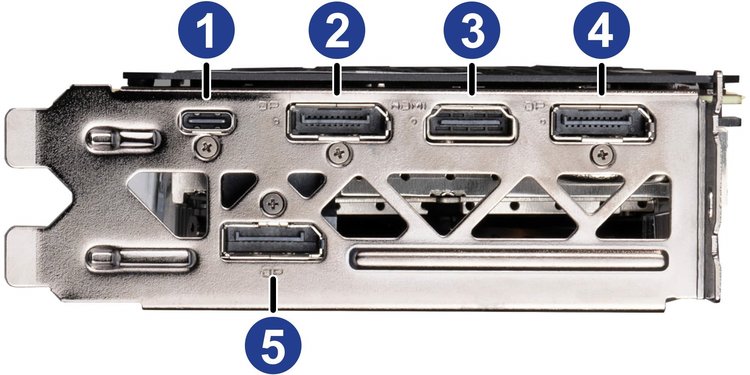

[ Rear Ports ]

EVGA GeForce RTX 2080 SUPER XC 8GB Open Air Picture 56762EVGA GeForce RTX 2080 SUPER XC 8GB Open Air Picture 56763EVGA GeForce RTX 2080 SUPER XC 8GB Open Air Picture 56764EVGA GeForce RTX 2080 SUPER XC 8GB Open Air Picture 56765EVGA GeForce RTX 2080 SUPER XC 8GB Open Air Picture 56766
NVIDIA's GeForce RTX 2080 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance about 5-10% over the vanilla RTX 2080 while maintaining the same price point. Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

This variant, from EVGA, uses a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. In those cases, a video card with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the RTX 2080 SUPER has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
William George (Product Development)
William George (Product Development) Says:
This mid-generation update from NVIDIA is a little weird, but I guess it is hard to complain about a free performance increase. If you want multiple GPUs, though, go for a version that has a single, blower-style cooling fan.
Ken Colorossi (Repair Technician)
Ken Colorossi (Repair Technician) Says:
The 20 series EVGA cards are extremely reliable and after the fans spin up they are one of the quietest cards currently on the market. However, I will say that there is a slight 'click/hum' noise when the fans first spin up. Since the default fan curve of the card has the fans at idle, you can hear the fans click on/off for light-medium loads if you are working in a quiet office. You can mitigate the fan noise by setting a default fan curve to anything above idle either through a VBIOS flash or using an application like EVGA Precision XOC.
Model: EVGA 08G-P4-3182-KR

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (GeForce RTX)
GPU Specifications
Core Speed  1650 MHz
Boost Speed  1830 Mhz
Stream Processors  3072
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  15,500 MHz
Memory Bus Width  256-bit
Bandwidth  496 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  USB Type-C
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E
Length  270 mm (10.6 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)

Configure a custom computer with the EVGA GeForce RTX 2080 SUPER XC 8GB Open Air.
