EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air

Video Card

[ Rear Ports ]

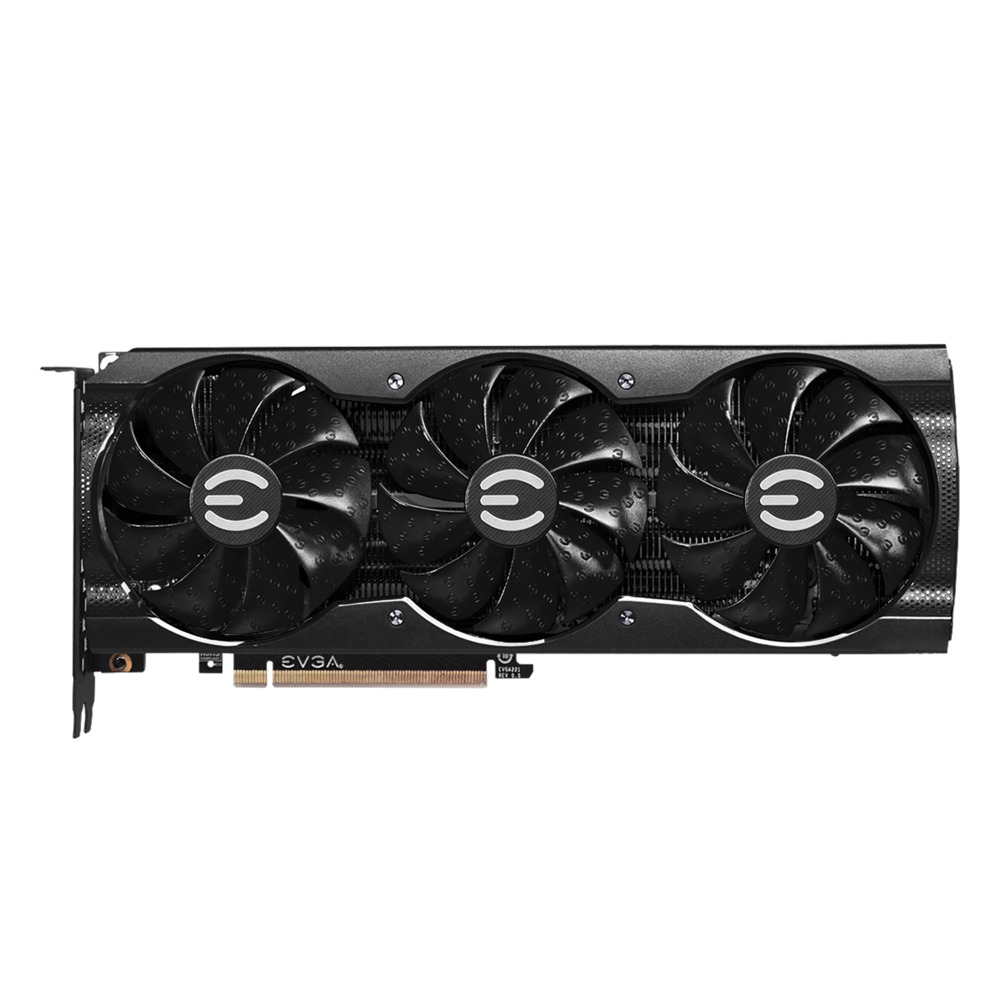

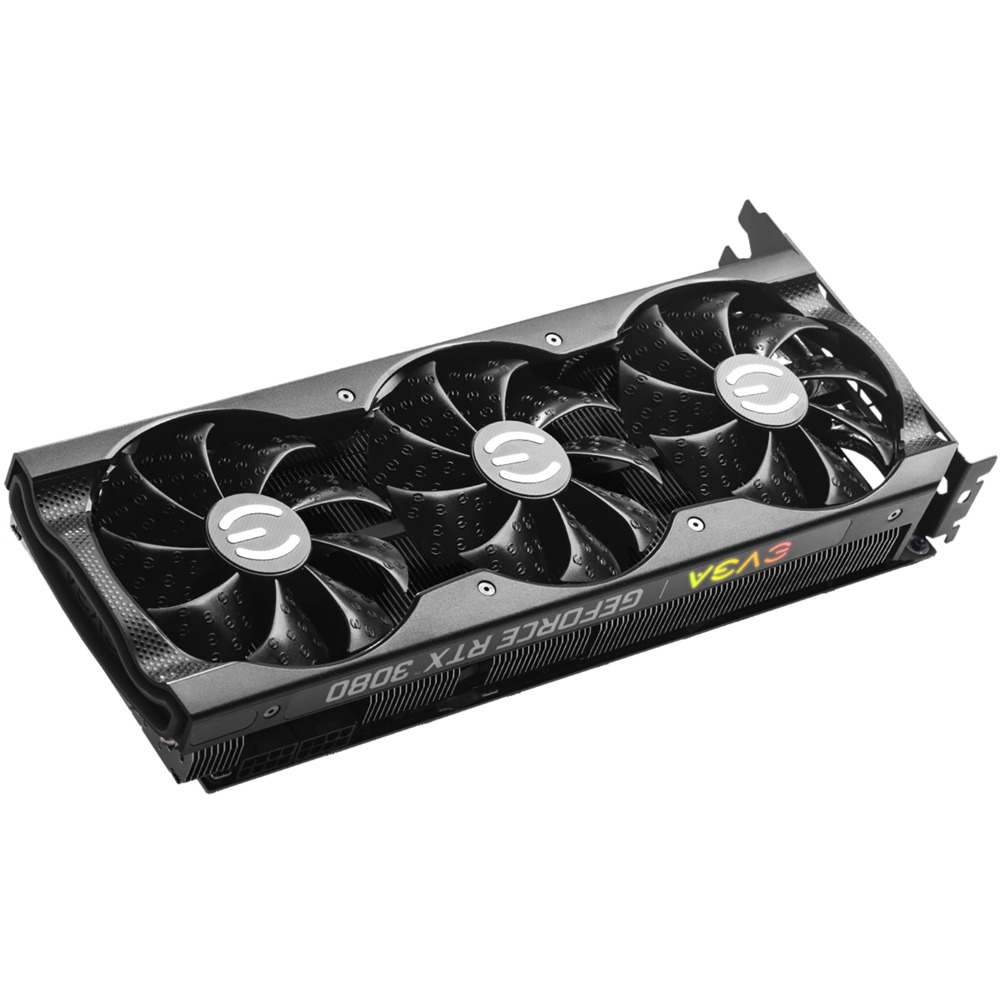

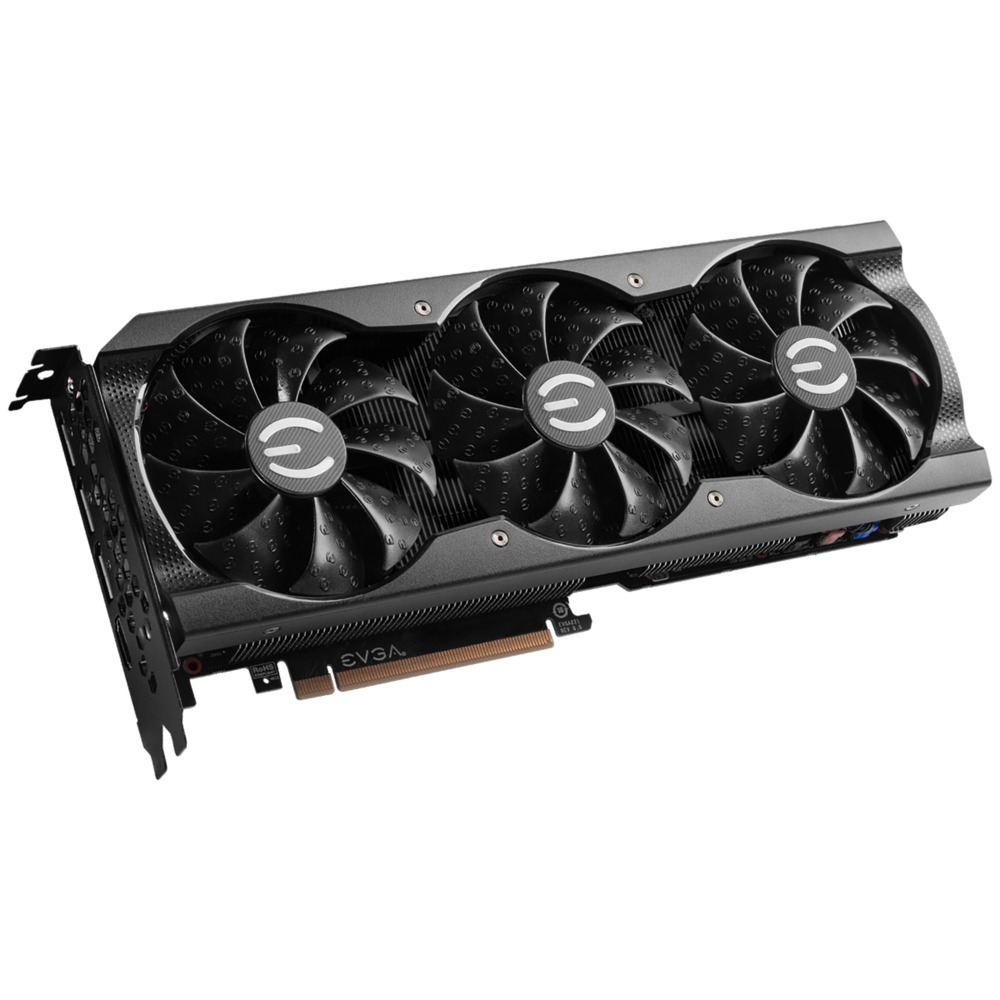

EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air Picture 73564EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air Picture 73565EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air Picture 73566EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air Picture 73567
NVIDIA's GeForce RTX 3080 12GB is an updated graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. Compared to the original RTX 3080, this model has an additional 2GB of onboard memory (12 vs 10GB total) and slightly improved performance - though not enough to bring it up to the level of the more expensive RTX 3080 Ti.

This particular variant from EVGA uses a multi-fan cooling layout. It is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. If more than one video card is needed for your application, look at other GeForce models with NVIDIA's Founders Edition cooling systems or a blower-style fan setup.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: EVGA 12G-P5-4861-KL

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3080 12GB
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
Lite Hash Rate  Yes
GPU Specifications
Core Speed  1,260 MHz
Boost Speed  1,710 Mhz
Stream Processors  8960
Memory Specifications
Video Memory  12GB
Memory Type  GDDR6X
Memory Speed  19,000 MHz
Memory Bus Width  384-bit
Bandwidth  912 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2+
Port 1  HDMI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Length  286 mm (11.3 in)
Height  111 mm (4.4 in)
Width  44 mm (1.7 in)
Net Weight  0.942 kg (2.1 lbs)

Configure a custom computer with the EVGA GeForce RTX 3080 XC3 BLACK 12GB Open Air.
