Gigabyte GeForce GTX 1660 Ti Mini ITX OC 6GB Open Air

Video Card

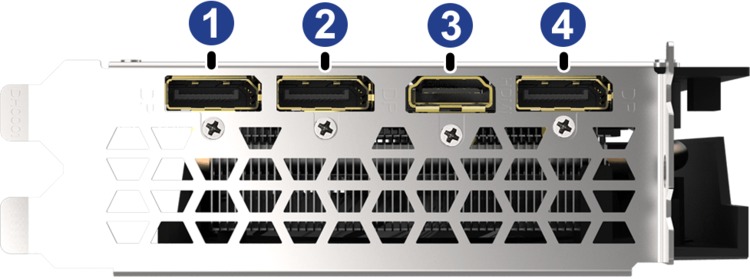

[ Rear Ports ]

Gigabyte GeForce GTX 1660 Ti Mini ITX OC 6GB Open Air Picture 54144Gigabyte GeForce GTX 1660 Ti Mini ITX OC 6GB Open Air Picture 54145Gigabyte GeForce GTX 1660 Ti Mini ITX OC 6GB Open Air Picture 54146Gigabyte GeForce GTX 1660 Ti Mini ITX OC 6GB Open Air Picture 54150
NVIDIA's GeForce GTX 1660 Ti 6GB is a mid-range GPU, replacing the older GTX 1060. While it is based on Turing technology, the older naming and numbering scheme is still used because this card is missing some of the more advanced features that are found on the RTX 2000-series. That means no hardware ray tracing (RT cores) or machine learning inference (Tensor cores) - but for more traditional applications which don't use those capabilities the GTX 1660 Ti is a strong contender.

This particular model from Gigabyte is a short-depth design, but it is a little on the tall side with a portion of the heatsink and shroud sticking up above the expansion slot bracket. That means it may not fit in some small form factor cases. For cooling it has a single-fan, open-air setup - which is great for keeping a single card cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems, especially in configurations where there will be little or no space between each card. In that situation, a video card with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, this GTX 1660 Ti supports up to four monitors. Three DisplayPort 1.4 connections are available, along with a single HDMI 2.0b port.
Model: Gigabyte GV-N166TIXOC-6GD

Specifications:
spacer
Chipset Manufacturer  nVidia
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  4096x2160
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1,500 MHz
Boost Speed  1785 Mhz
Stream Processors  1,536
Memory Specifications
Video Memory  6GB
Memory Type  GDDR6
Memory Speed  12,000 MHz
Memory Bus Width  192-bit
Bandwidth  288 GB/s
Additional Information
Cooling System  Quiet Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Dimensions
Length  170 mm (6.7 in)
Height  121 mm (4.8 in)
Width  37 mm (1.5 in)
