MSI GeForce RTX 3070 Ventus 3X OC 8GB Open Air

Video Card

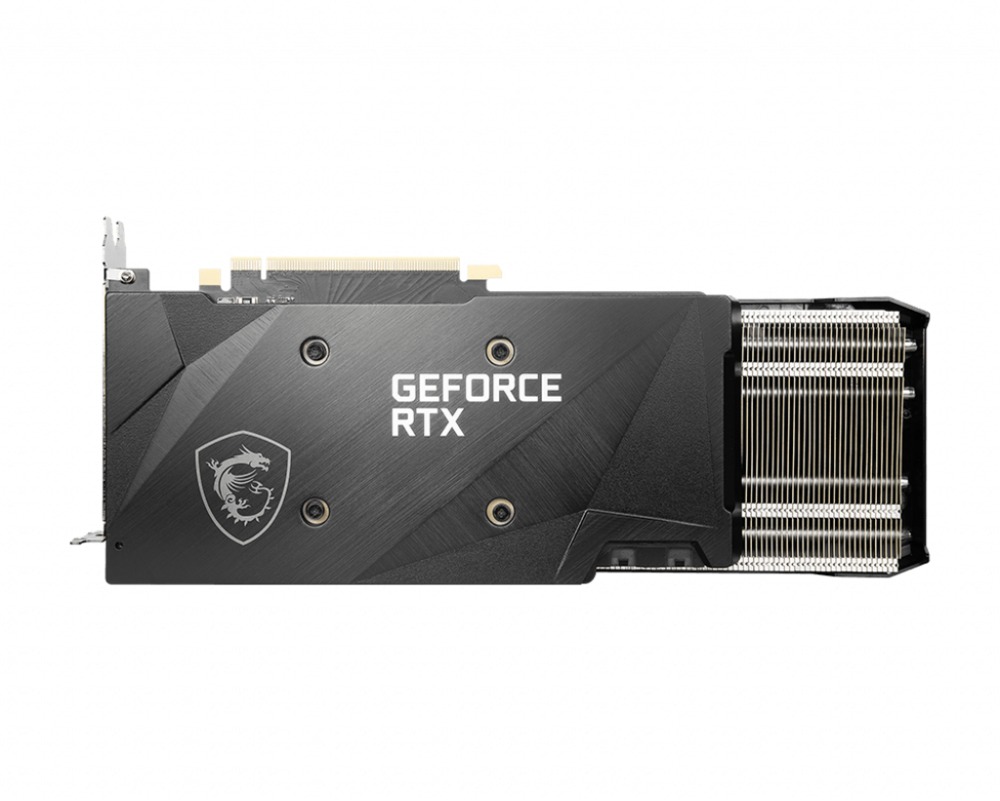

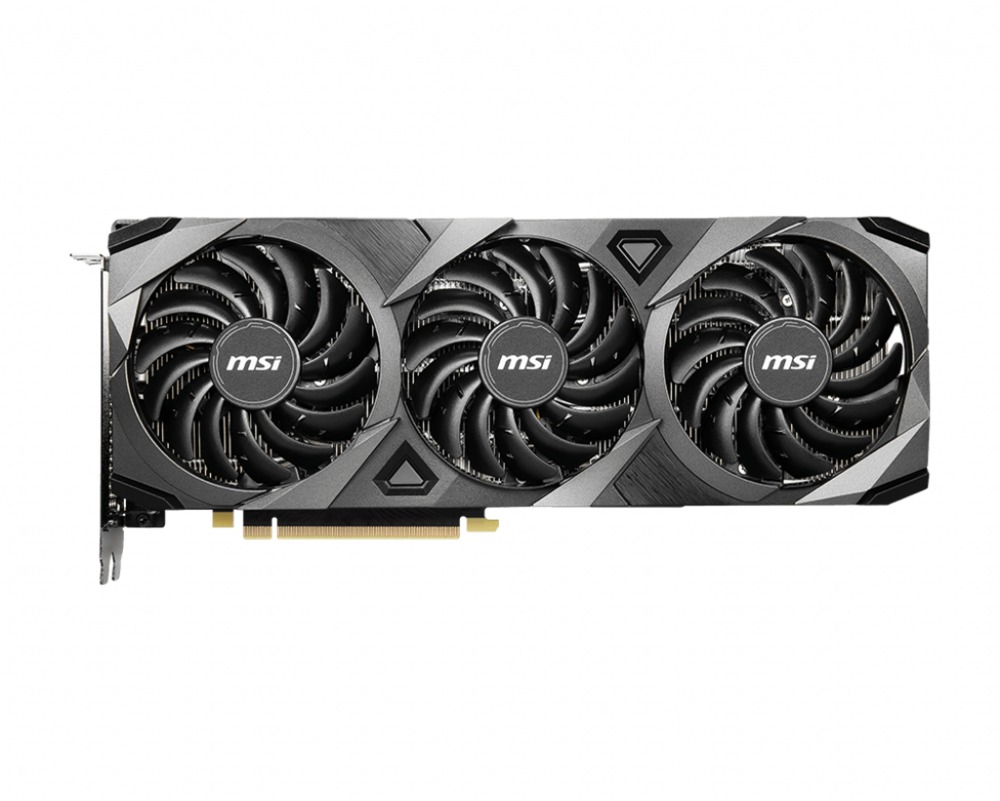

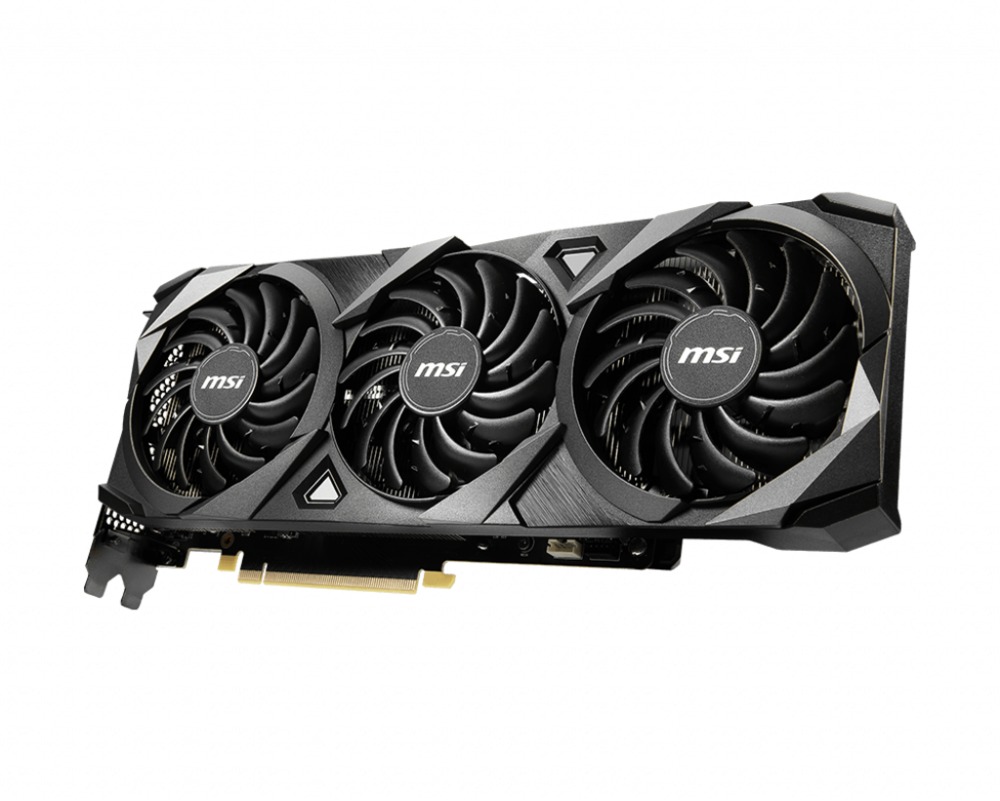

MSI GeForce RTX 3070 Ventus 3X OC 8GB Open Air Picture 65109MSI GeForce RTX 3070 Ventus 3X OC 8GB Open Air Picture 65110MSI GeForce RTX 3070 Ventus 3X OC 8GB Open Air Picture 65111
NVIDIA's GeForce RTX 3070 is their third consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. In general, though, it should match or beat the performance of the older RTX 2080 Ti card in most applications.

This variant from MSI uses a triple-fan cooling layout. It is a great design for keeping a single card running cool and quiet, but results in most of the heat it generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, this card has one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: MSI G3070V3XC

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3070
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
Lite Hash Rate No
GPU Specifications
Core Speed 1,500 MHz
Boost Speed 1,755 Mhz
Stream Processors 5888
Memory Specifications
Video Memory 8GB
Memory Type GDDR6
Memory Speed 14,000 MHz
Memory Bus Width 256-bit
Bandwidth 448 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2+
Outputs
Port 1 HDMI
Port 2 DisplayPort
Port 3 DisplayPort
Port 4 DisplayPort
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Dimensions
Length 305 mm (12.0 in)
Height 121 mm (4.8 in)
Width 56 mm (2.2 in)
Net Weight 0.991 kg (2.2 lbs)
