MSI GeForce RTX 3080 Ventus OC 10GB Open Air

Video Card

[ Rear Ports ]

MSI GeForce RTX 3080 Ventus OC 10GB Open Air Picture 64152MSI GeForce RTX 3080 Ventus OC 10GB Open Air Picture 64154MSI GeForce RTX 3080 Ventus OC 10GB Open Air Picture 64155MSI GeForce RTX 3080 Ventus OC 10GB Open Air Picture 64151
NVIDIA's GeForce RTX 3080 is the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3080 can be up to twice as fast in some applications - but not every program or game will see that much gain.

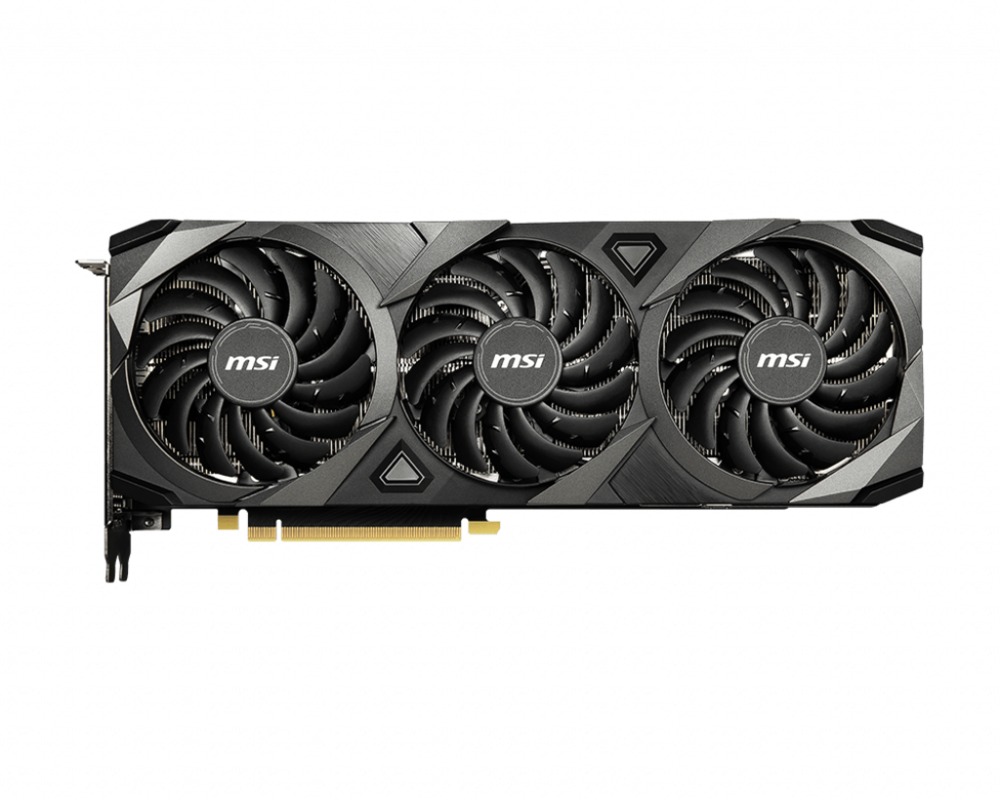

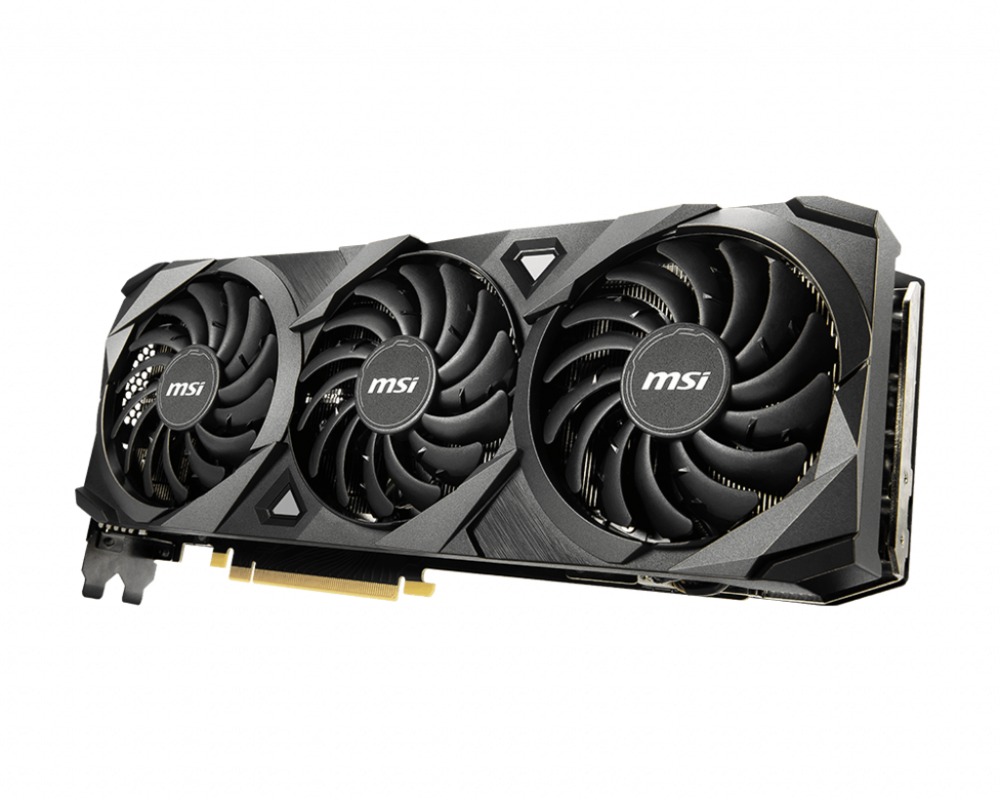

This variant from MSI uses a multi-fan cooling layout. It is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: MSI G3080V3X10C

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3080
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
Lite Hash Rate  No
GPU Specifications
Core Speed  1,440 MHz
Boost Speed  1,740 Mhz
Stream Processors  8704
Memory Specifications
Video Memory  10GB
Memory Type  GDDR6X
Memory Speed  19,000 MHz
Memory Bus Width  320-bit
Bandwidth  760 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2+
Port 1  HDMI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Length  305 mm (12.0 in)
Height  120 mm (4.7 in)
Width  57 mm (2.2 in)
Net Weight  1.215 kg (2.7 lbs)
