NVIDIA GeForce RTX 2070 8GB Open Air

Video Card

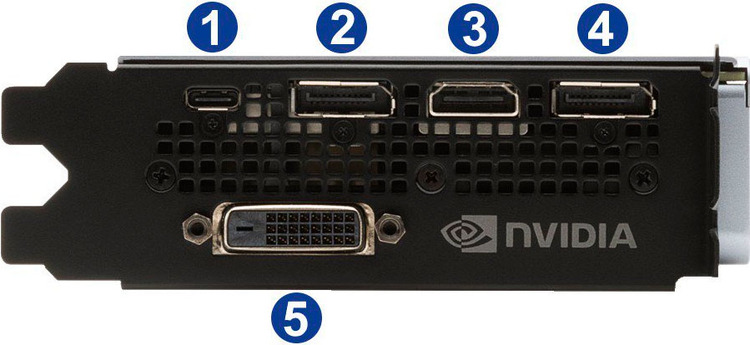

[ Rear Ports ]

NVIDIA GeForce RTX 2070 8GB Open Air Picture 52154NVIDIA GeForce RTX 2070 8GB Open Air Picture 52155NVIDIA GeForce RTX 2070 8GB Open Air Picture 52156NVIDIA GeForce RTX 2070 8GB Open Air Picture 52157NVIDIA GeForce RTX 2070 8GB Open Air Picture 52158NVIDIA GeForce RTX 2070 8GB Open Air Picture 52159NVIDIA GeForce RTX 2070 8GB Open Air Picture 53054
NVIDIA's GeForce RTX 2070 is part of the first wave of graphics cards based on the Turing GPU architecture. This generation represents only an incremental improvement in general graphics performance, making the RTX 2070 a little faster than the previous generation GTX 1080 (and slightly more expensive as well). The big thing that this new GPU architecture brings to the table is forward-looking features not found on previous GTX cards: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

This version of the RTX 2070 features a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. When installing more than one video card in a system, models with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the RTX 2070 supports up to four monitors. Unlike the higher-end RTX 2080 and 2080 Ti, it still has one dual-link DVI output - along with one HDMI 2.0b and two DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1410 MHz
Boost Speed  1710 Mhz
Stream Processors  2304
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Quiet Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Outputs
Port 1  USB Type-C
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Port 5  DVI
Power Connectors
Plug 1  8-pin PCI-E
Dimensions
Length  228 mm (9.0 in)
Height  114 mm (4.5 in)
Width  42 mm (1.7 in)


Configure a custom computer with the NVIDIA GeForce RTX 2070 8GB Open Air.
