The RTX A5000 is an Ampere-based workstation graphics card from NVIDIA. It offers raw performance similar to the more mainstream GeForce RTX 3080 but with a focus on support for professional applications and substantially more onboard VRAM (24GB). As with most workstation GPUs, like NVIDIA's former Quadro series, the single-fan cooler on the A5000 is well suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.
In addition to great performance for professional 3D applications, the RTX A5000 also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. An adapter to DVI is also included for those who need to use an older screen that lacks direct DisplayPort input; additional DVI and HDMI adapters can be purchased separately.
In addition to great performance for professional 3D applications, the RTX A5000 also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. An adapter to DVI is also included for those who need to use an older screen that lacks direct DisplayPort input; additional DVI and HDMI adapters can be purchased separately.
William George (Marketing Project Manager) Says:
These cards offer the right combination of lower power draw, blower-style cooling, and high VRAM, making them nearly perfect for multi-GPU rendering workstations! We can fit up to four of these in many of our tower PCs if you want maximum rendering performance in a single system.
These cards offer the right combination of lower power draw, blower-style cooling, and high VRAM, making them nearly perfect for multi-GPU rendering workstations! We can fit up to four of these in many of our tower PCs if you want maximum rendering performance in a single system.
Model: PNY VCNRTXA5000-BLK
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Quadro |
Series | Ampere Workstation |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | NVLink (RTX A) |
TGP | 230 W |
GPU Specifications | |
Stream Processors | 8192 |
Tensor Cores | 256 |
Memory Specifications | |
Video Memory | 24GB |
Memory Type | GDDR6 ECC |
Memory Bus Width | 384-bit |
Bandwidth | 768 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 27.8 Tflops |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 11 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |
Quadro Sync Support | Quadro Sync II |

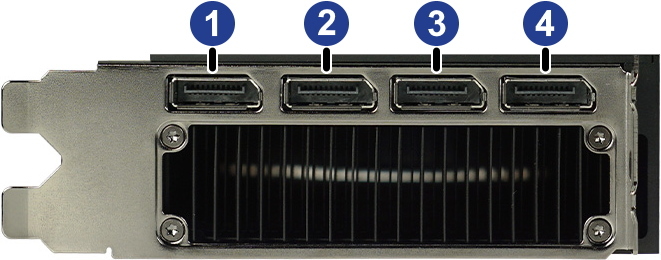

Outputs | |
Port 1 | DisplayPort 1.4a |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | DisplayPort 1.4a |
Power Connectors | |
Plug 1 | 8-pin ATX |
Dimensions | |
Length | 267 mm (10.5 in) |
Height | 112 mm (4.4 in) |
Width | 42 mm (1.7 in) |
Net Weight | 1.028 kg (2.3 lbs) |
