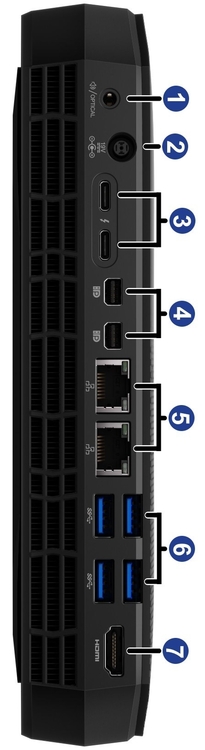

[ Rear Ports ][ Schematic ]

Intel NUC NUC8I7HVK Picture 46137Intel NUC NUC8I7HVK Picture 46135Intel NUC NUC8I7HVK Picture 46136Intel NUC NUC8I7HVK Picture 46138Intel NUC NUC8I7HVK Picture 46139Intel NUC NUC8I7HVK Picture 52441Intel NUC NUC8I7HVK Picture 61514

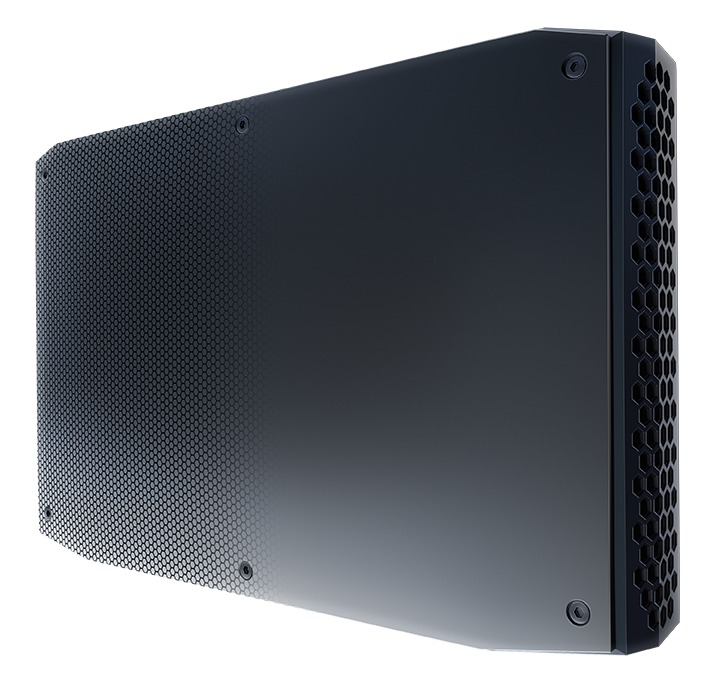

The Intel NUC 8I7HVK is a compact computer system, with a built-in Core i7 8809G processor and AMD Radeon RX Vega M graphics. That CPU is a quad-core running at fairly high clock speeds (3.1GHz base & 4.2GHz max turbo), and while it has integrated graphics from Intel the discrete AMD chip provides even better video and 3D capabilities.

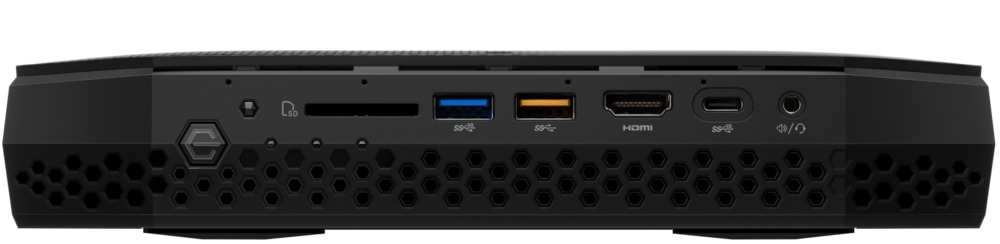

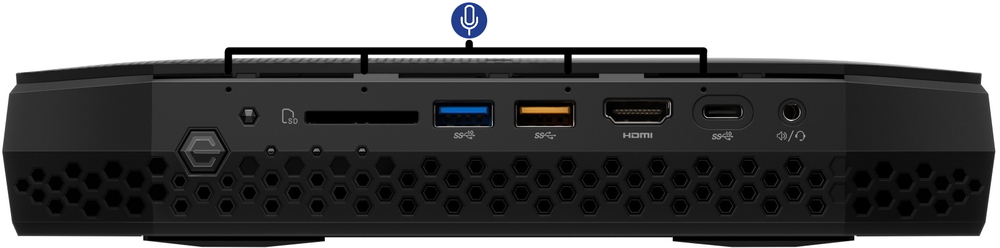

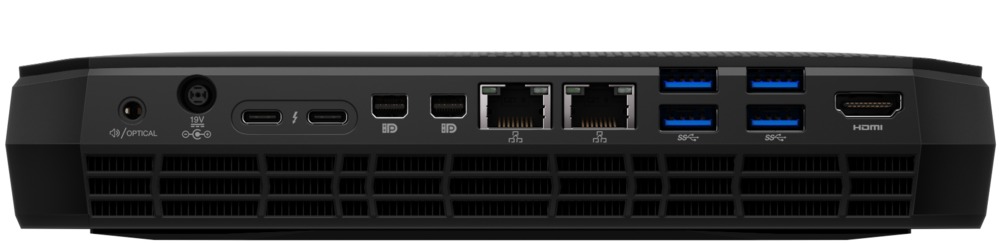

While the CPU and graphics chip are tightly integrated into the system, the RAM and M.2 drives are fully configurable. There are two slots for DDR4 SODIMMs, supporting up to 32GB of memory, and two M.2 connectors which both support PCI-Express x4 and SATA standards. Externally, the NUC offers a SD card reader, several USB ports (both Type A and Type C), two Thunderbolt 3 ports, dual HDMI outputs, dual Mini DisplayPorts, dual Gb Ethernet, and audio connectivity. WiFi and Bluetooth are also supported, but the antennas are completely internal.

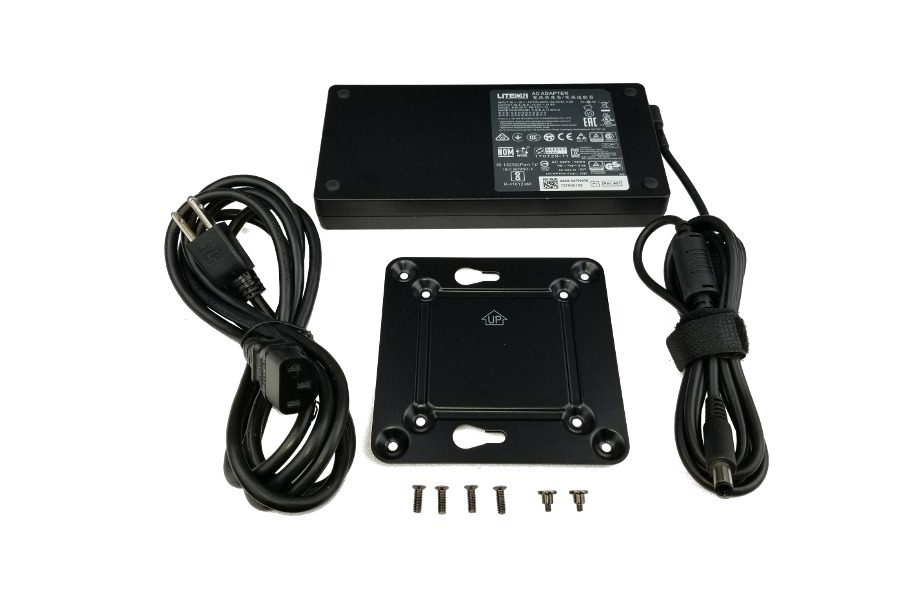

Lastly, the NUC kit includes an external power adapter, power cable, and VESA-compatible mounting bracket.
Ken Colorossi (Repair Technician)
Ken Colorossi (Repair Technician) Says:
The NUC is a great all around lower budget and compact sized computer. It is great for home office use and low intensive workflows.

One thing to mention is the NUC has a low hum you can hear if you put your ear right up to the system. Otherwise, it is quiet and perfect to place on your desk.
Model: Intel BOXNUC8I7HVK1

CPU Compatibility  8th Gen Intel Core i7-8809G
Chipset Manufacturer  Intel
Front Side Bus  DMI 3.0
Network Connectivity  Dual Gigabit Networking + 802.11 A/B/G/N/AC
Audio Controller  Onboard Realtek ALC1220 HD Audio
Cooling System  Heatsink and Fan
Number of Fans  2
Color  Black
Memory Support
Maximum Speed  2400 MHz
Number of Slots  2
Maximum Size per Slot  16 GB
Maximum Amount Supported  32 GB
Onboard Video
Processor Type  Radeon RX Vega M GH Graphics
Onboard Memory  4096 MB
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2160
HDMI Version  2.0
Mini DisplayPort  2
DisplayPort Version  1.2
Notes:  2x Thunderbolt 3 video outputs
External Connections
USB 3.2 Gen 1 (USB 3.0)  5
USB 3.2 Gen 2 (USB 3.1)  1
USB 3.2 Type C  1
PS/2 Keyboard  No
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Memory Card Reader  SDXC w/ UHS-I
Thunderbolt Ports  2
Thunderbolt Version  3
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0)  1
M.2 Connector  2
M.2 Support  80mm PCIe x4 or SATA
Additional Information
RAID Support  0, 1
Built-in Webcam  No
Built-in Microphone  Yes
Bluetooth  Yes (4.2)
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  39 mm (1.5 in)
Width  221 mm (8.7 in)
Depth  142 mm (5.6 in)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  12 A


3 Years
