Video Card

[ Rear Ports ]

NVIDIA RTX A4000 16GB PCI-E Picture 70414NVIDIA RTX A4000 16GB PCI-E Picture 70415NVIDIA RTX A4000 16GB PCI-E Picture 70416NVIDIA RTX A4000 16GB PCI-E Picture 70417NVIDIA RTX A4000 16GB PCI-E Picture 70418

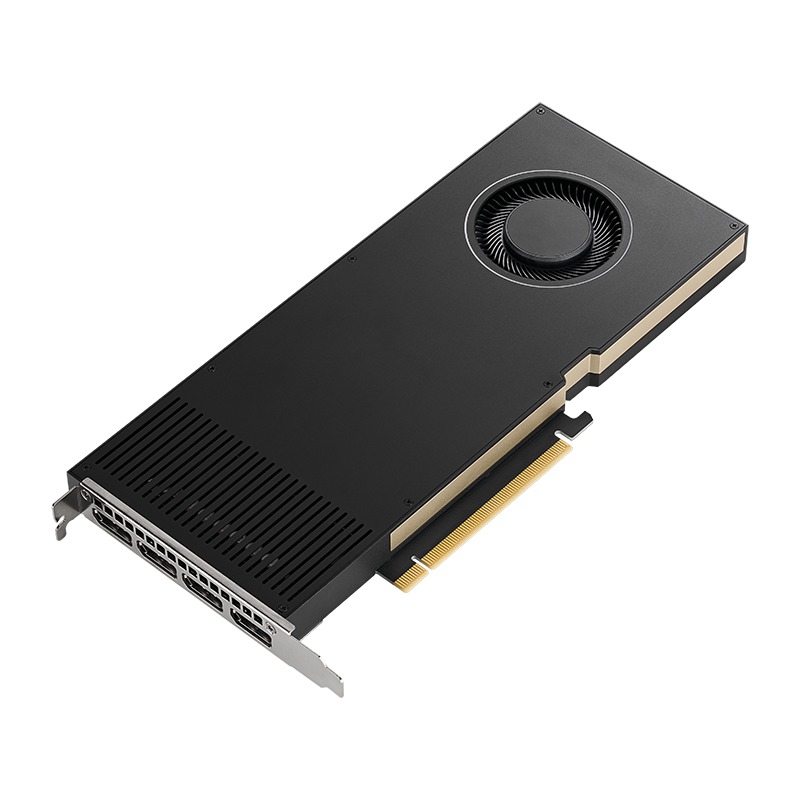

The NVIDIA RTX A4000 is a professional Ampere-based graphics card, offering good overall performance along with specialized ray tracing and machine learning inference hardware (RT cores and Tensor cores, respectively). While not sporting as much onboard memory as higher-end A-series models, the RTX A4000's 16GB of VRAM is substantially more than most consumer GeForce models. A rarity among modern video cards, the RTX 4000 uses a single-width cooler - allowing it to take up less space in systems which have a lot of other expansion cards or fit easily into smaller form factor computers.

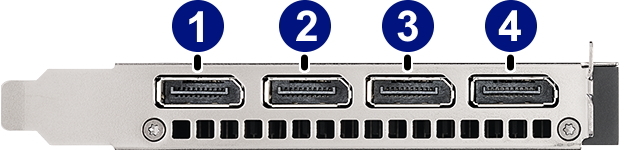

To compliment its focus on professional 3D applications, the RTX A4000 supports up to four monitors at the same time. Four full-size DisplayPort outputs are physically present on the back of the card, and a wide range of adapters are available from third party vendors if you need to adapt to other video standards like DVI or HDMI.

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Series  Ampere Workstation
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Stream Processors  6144
Tensor Cores  192
Memory Specifications
Video Memory  16GB
Memory Type  GDDR6
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Single Precision Floating Point (Peak)  19.2 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  1
Port 1  DisplayPort 1.4a
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  6-pin PCI-E
Length  241 mm (9.5 in)
Height  112 mm (4.4 in)
Width  19 mm (0.7 in)
Net Weight  0.499 kg (1.1 lbs)
