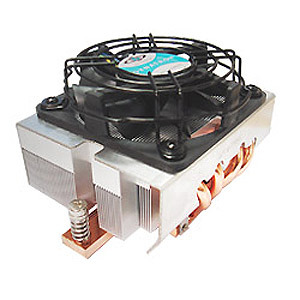

Dynatron A6 77mm CPU Cooler (Socket G34) Main Picture
Zoom Button

CPU Cooling

Dynatron A6 77mm CPU Cooler (Socket G34)



Puget Systems Description

These are the standard heat sinks we carry for Socket G34 Opteron processors. They do a great job cooling, but can be rather loud under load. There are not many alternatives available for that particular processor socket, but we do carry an upgraded cooler option that runs a lot quieter for situations where noise level is a concern.


Manufacturer Description
Model: Dynatron A6

Specifications:
spacer
Dimensions
Length  114 mm (4.5 inches)
Width  75.5 mm (3.0 inches)
Height  66.7 mm (2.6 inches)
Net Weight  .48 Kg
Fan Specifications
Air Flow  53.9 CFM
Bearing  Ball Bearing
Fan Size  77 mm (3.0 inches)
Fan Speed  5500 RPM
Noise Level  51.4 dBa
Static Pressure  5.59 mmAq
General
Compatibility  G34

CPU Socket G34

CPU Support AMD® Opteron™ 6000 Series up to 115 Watts

Solution 2U&Up Server

Overall Dimension 114.0 x 75.5 x 66.7 mm

Weight 480 g

Material Copper Base & Aluminum Stacked Fins with Heatpipes embedded

Fan Dimension 77 x 77 x 20 mm

Speed At Duty Cycle 0~20%: 1000 RPM
At Duty Cycle 50%: 2600 RPM
At Duty Cycle 100%: 5500 RPM

Bearing 2 Ball Bearing

Rated Voltage 12 V

Power At Duty Cycle 0~20%: 0.54 W
At Duty Cycle 50%: 1.68 W
At Duty Cycle 100%: 9.0 W

Air Flow At Duty Cycle 0~20%: 8.36 CFM
At Duty Cycle 50%: 25.5 CFM
At Duty Cycle 100%: 53.9 CFM

Noise Level At Duty Cycle 0~20%: 20.6 dBA
At Duty Cycle 50%: 35.1 dBA
At Duty Cycle 100%: 51.4 dBA

Air Pressure At Duty Cycle 0~20%: 0.24 mm-H2O
At Duty Cycle 50%: 1.25 mm-H2O
At Duty Cycle 100%: 5.59 mm-H2O

Need more information? Email us your questions about the Dynatron A6 77mm CPU Cooler (Socket G34).
