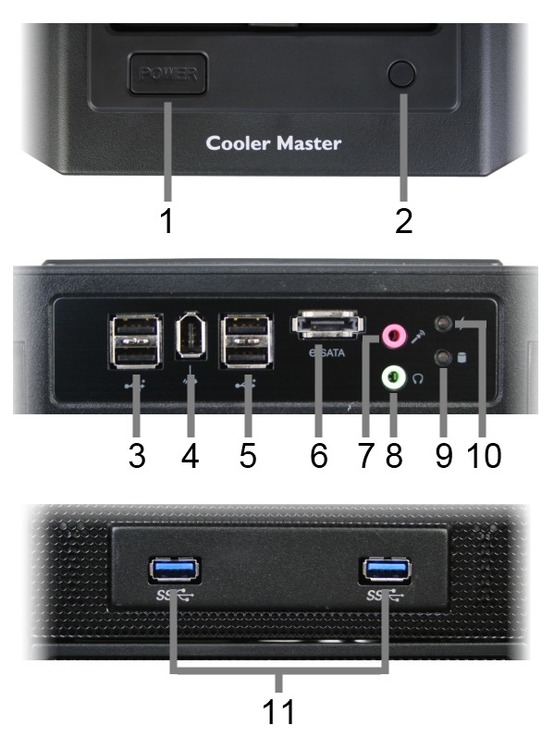

Cooler Master HAF 932 Advanced w/ Extreme Liquid Cooling Package Ports
Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
HDD LED: Light that turns on when there is drive activity.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Model: Cooler Master RC-932-KKN1-GP
Specifications
| Color | Black |
| Material | Plastic front panel, steel frame |
| Type/Size | Full Tower |
| Maximum Motherboard Size | EATX |
| Case Window | Yes |
| Power Supply | None |
Dimensions | |
| Height | 546.1 mm (21.5 in) |
| Width | 228.6 mm (9.0 in) |
| Depth | 576.58 mm (22.7 in) |
| Net Weight | 20 kg (44.1 lbs) |
Drive Bays | |
| External 5.25 inch | 4 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 5 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.0 | 2 |
| Firewire | 1 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 1 |
Cooling System | |
| Cooling Method | Liquid |
| Included Fans | Front 230mm (Red), Side 230mm, Top 230mm, Rear 140mm, Radiator 9 x 120mm |
Liquid cooling package includes:
Cooler Master HAF 932 Advanced

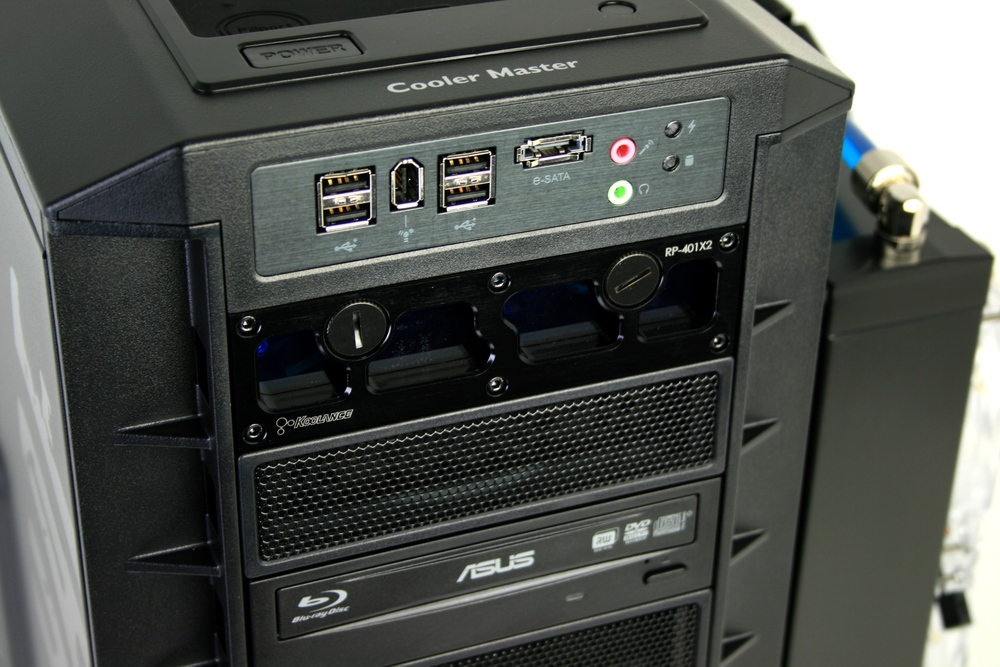

Koolance RP-401X2 Rev. 1.1 Single 5.25in Reservoir
Koolance PMP-400 Pump

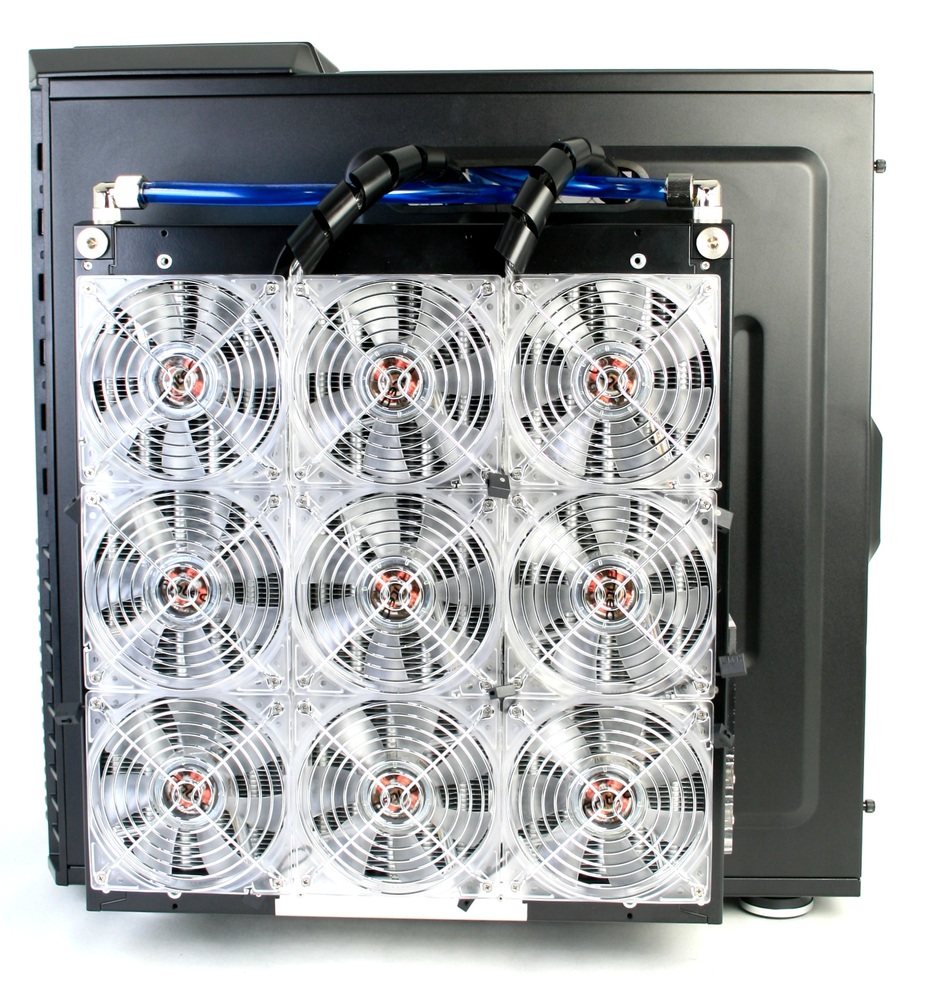

Watercool MO-RA3 9x120 PRO Radiator
Watercool MO-RA3 360 Wall/Case Holder
9 x 120mm Chrome Grill
9 x Antec TriCool Case Fan
Fluid color is blue by default, or matched to the case lighting kit if selected.
When purchased as part of a computer system, all necessary barbs, fittings Koolance 3/8" ID Clear PVC Tubing is included. When purchased as a part, barbs, fitting and tubing must be purchased separately.
Due to the additional space required for liquid cooling, one 5.25" bay is not available for use as it is needed to house the liquid cooling pump/reservoir.
Temperature sensors by default are:
Sensor 1 - CPU
Sensor 2 - Video Card
Sensor 3 - Radiator
