Home > Build Your Own > Case > GTWeb J3630 3U mATX Case

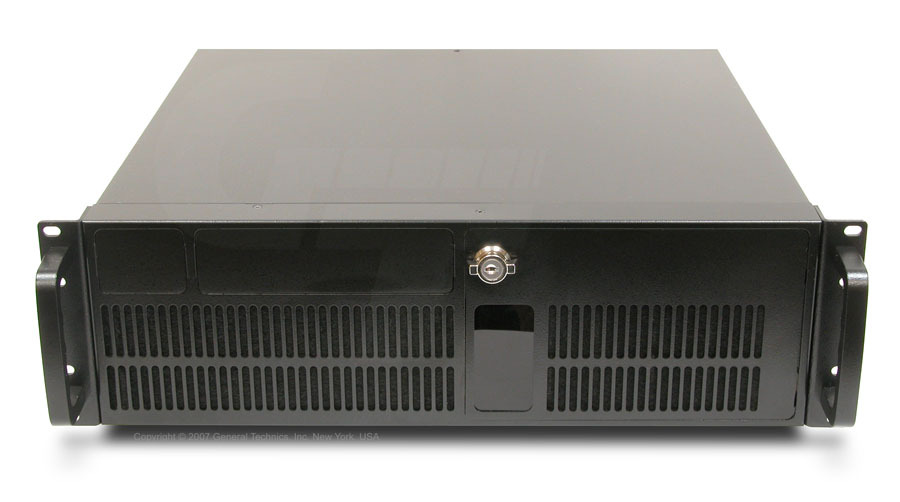

GTWeb J3630 3U mATX Case Main Picture
Zoom Button

Case

GTWeb J3630 3U mATX Case

GTWeb J3630 3U mATX Case Picture 11273
GTWeb J3630 3U mATX Case Picture 11274
GTWeb J3630 3U mATX Case Picture 11275
GTWeb J3630 3U mATX Case Picture 11276
GTWeb J3630 3U mATX Case Picture 11277


Puget Systems Description

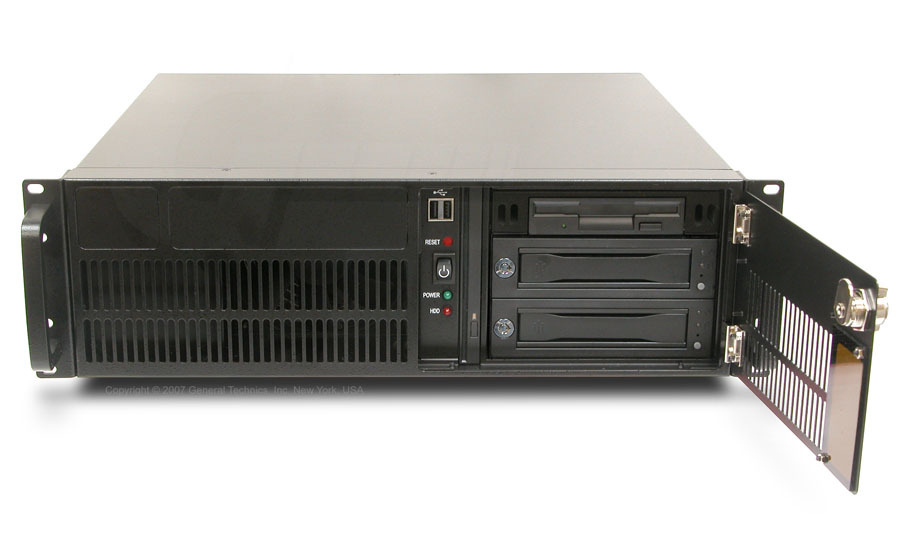

When rack depth is limited, the GTWeb J3630 3U mATX is the ideal solution. At only 16 inches deep, it is well suited for home theater applications, and can even fit comfortably in road cases. With a narrow width of only 16.8 inches, the J3630 allows for the use of ball bearing rail slides for easy rack installations. Also, the standard PS/2 style power supply allows higher capacity and quieter operation in a smaller form factor. Due to the reduced size, this small chassis supports micro-ATX motherboards and up to four full length PCI cards. There are two USB 2.0 ports on the front IO panel. The lockable door protects drives and controls, and opens wide enough for any style removable drive. Mounting for a vertical slot-loading slim optical drive is standard, freeing up valuable space for other devices.

If you have any questions, be sure to contact our sales consultants at sales@pugetsystems.com. They will be happy to help you find the right case for your specific needs.


Manufacturer Description
Model: GTWeb J3630

Specifications:
spacer
Color  Black
Material  Aluminum front panel, steel frame
Type/Size  3U Rackmount
Maximum Motherboard Size  MicroATX
Case Window  No
Power Supply  None
Dimensions
Height  133.35 mm (5.2 inches)
Width  426.72 mm (16.8 inches)
Depth  406.4 mm (16.0 inches)
Drive Bays
External 5.25 inch  2
External 3.5 inch  1
Internal 3.5 inch  3
Slim 5.25 inch  0
Front Panel Connectors

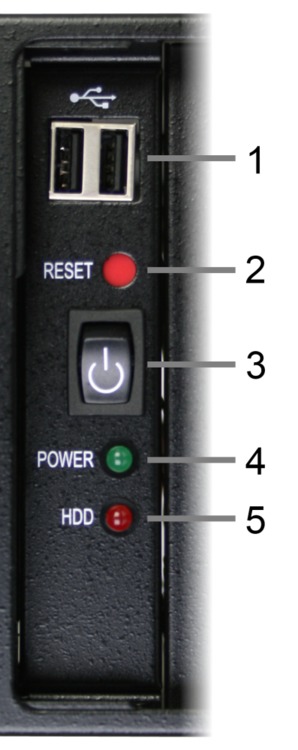

USB 2.0  2
USB 3.0  0
Firewire  0
Audio In  0
Audio Out  0
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  1x120mm
Additional Fans Possible  Drive Bay Cooler

Need more information? Email us your questions about the GTWeb J3630 3U mATX Case.


Manufacturer Links

Pricing History Knowing how pricing is trending is an important part of deciding when to buy. While computer hardware pricing most often decreases over time, it is useful to know if pricing is on the rise, or if pricing is in especially steep decline. This information can help you decide whether to buy quickly, or whether to wait for pricing to settle.
GTWeb J3630 3U mATX Case Pricing History Graph

Downloads

Buy GTWeb J3630 3U mATX Case from the Puget Store! (11 in stock)
