Home > Build Your Own > Case > Silverstone FT02B-W
Silverstone FT02B-W Main Picture
Zoom Button

Case

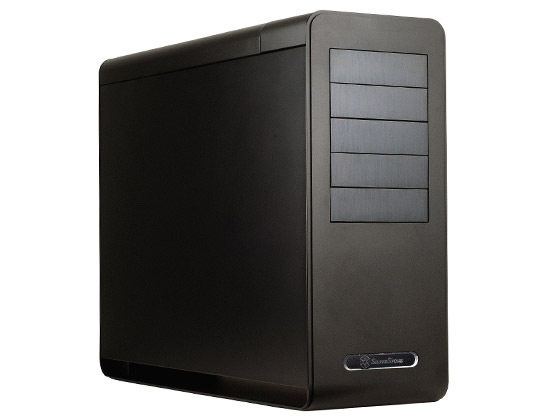

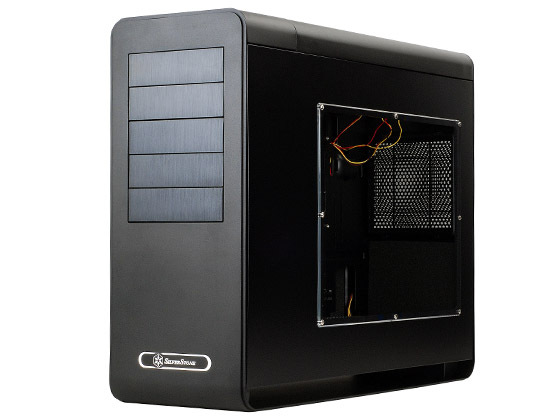

Silverstone FT02B-W

Silverstone FT02B-W Picture 14628
Silverstone FT02B-W Picture 14629
Silverstone FT02B-W Picture 14630
Silverstone FT02B-W Picture 14631
Silverstone FT02B-W Picture 14632
Silverstone FT02B-W Picture 14633


Puget Systems Description

View the Puget Systems article featuring this item.

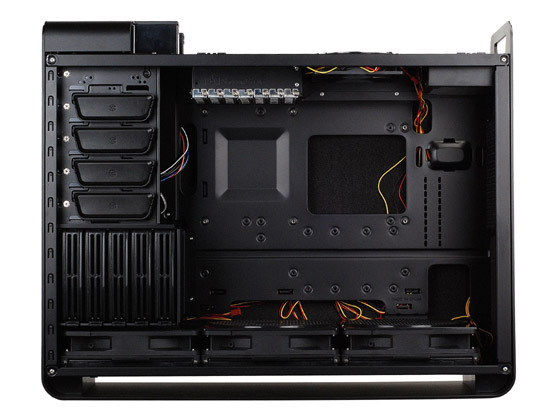

As part of Silverstone's "Fortress" line, the FT02B-W brings a very unique approach to computer chassis design. It mounts the motherboard with the rear ports facing upward, and has intake fans on the bottom instead of the front. This allows the airflow to follow normal convection patterns, with heat rising naturally, but this abnormal layout can also have some side effects.

Video cards longer - or effectively taller - than 12 inches may interfere with the intake fans, and cable management is done on the top rather than back of the system. There is an included shroud that goes over the ports to keep things looking clean, but that limits the length of things that can stick out the 'back' of the motherboard.

Because of the natural airflow pattern and included noise dampening foam this case is very quiet without any additional hardware. It uses larger than normal fans, though, so there is no point to adding a fan upgrade kit - but the included fans are quiet enough for most needs.

Note: Top 5.25" bay may not be usable due to space limitations; case includes Acoustipack-like material pre-installed


Puget Systems Professional Advice
Jon Bach (President) Says:
This is an interesting concept for a chassis. I really like that the heat can rise up and through the case, and the design is quite elegant. It is quiet, and good at cooling. But it is also huge, so be sure to check the dimensions and measure where you'll be putting the computer!

Daniel Brown (Customer Service) Says:
I think the internal layout and design philosophy of this chassis are good. That said, I personally wouldn't buy it because it's *huge*.

If you plan to put your computer next to your desk (instead of on top), this chassis would be great, because all the ports are on the top so you wouldn't have to pull it out or crawl behind to check connections or plug things in.

Matt Bach (Puget Labs Manager) Says:

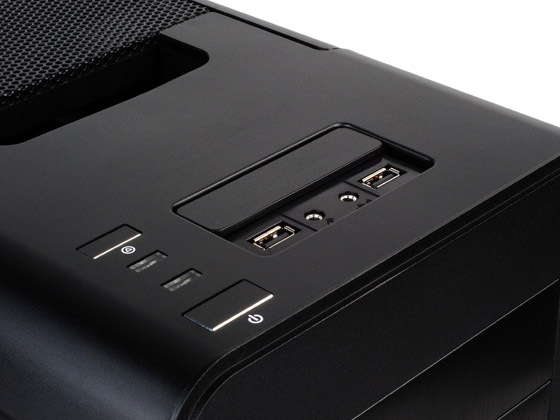

This case has absolutely amazing cooling. Its easily the best cooling non liquid-cooled case we sell, but the case layout means you have to be careful of a few things. First: all the ports come out the top of the case. That's may not a huge deal for most people, but if you want to plug in something long (like a USB wireless card) you may not be able to use the top cover. Second, longer 5.25" devices simply will not fit since they would run into the motherboard. Similarly, video cards longer than 12" will not fit due the the lower fan locations. If your thinking of running a high-end SLI machine, this case is definitely one to take a look at. Its larger and slightly louder than our Antec cases, but you can't beat it's cooling power.


Note: Top 5.25" bay may not be usable due to space limitations; case includes Acoustipack-like material pre-installed

Manufacturer Description
Model: Silverstone SST-FT02B-W

Specifications:
spacer
Color  Black
Material  Aluminum fame, steel body
Type/Size  Full Tower
Maximum Motherboard Size  ATX

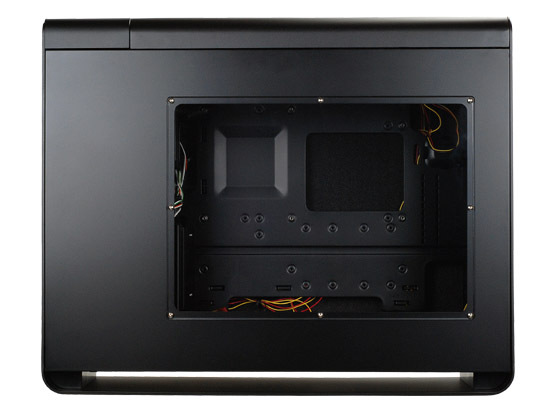

Case Window  Yes
Power Supply  None
Dimensions
Height  497 mm (19.6 inches)
Width  212 mm (8.3 inches)
Depth  616 mm (24.3 inches)
Net Weight  15 kg (33.1 lbs)
Drive Bays

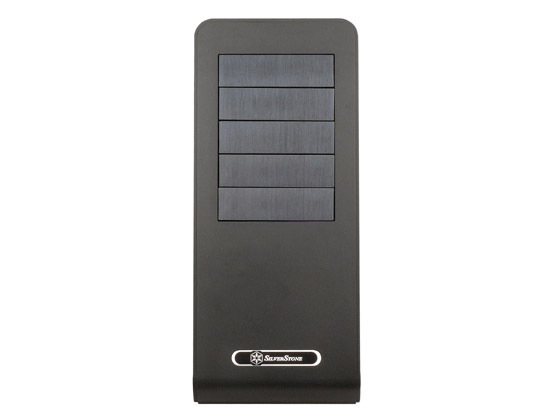

External 5.25 inch  5
External 3.5 inch  0
Internal 3.5 inch  5
Front Panel Connectors
USB 2.0  2
USB 3.0  0
Firewire  0
Audio In  1
Audio Out  1
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  1 x 120mm exhaust, 3 x 180mm intake

Need more information? Email us your questions about the Silverstone FT02B-W.


Further Reading

Manufacturer Links

Pricing History Knowing how pricing is trending is an important part of deciding when to buy. While computer hardware pricing most often decreases over time, it is useful to know if pricing is on the rise, or if pricing is in especially steep decline. This information can help you decide whether to buy quickly, or whether to wait for pricing to settle.
Silverstone FT02B-W Pricing History Graph

Buy Silverstone FT02B-W from the Puget Store! (1 in stock)
