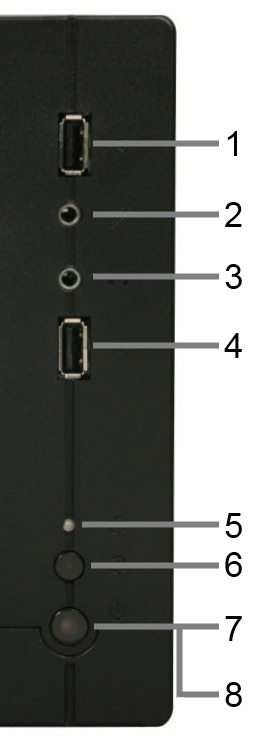

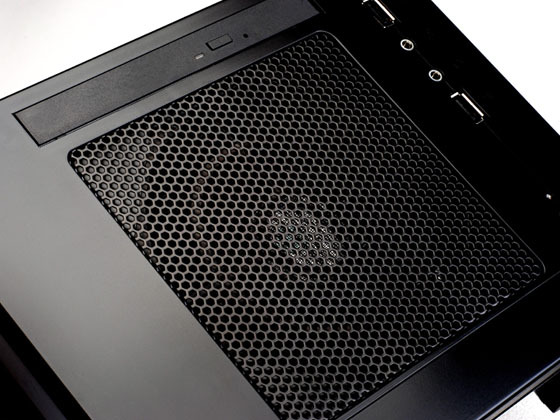

Silverstone SG05 (Black) MiniITX Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDD LED: Light that turns on when there is drive activity.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.

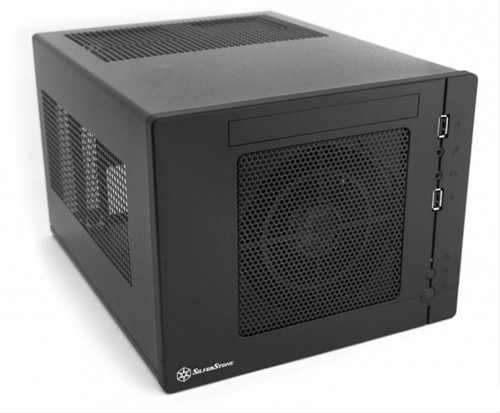

Model: Silverstone SST-SG05B
Specifications
| Color | Black |
| Material | Aluminum |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | ITX |
| Case Window | No |
| Power Supply | 300W |
Dimensions | |
| Height | 176 mm (6.9 in) |
| Width | 222 mm (8.7 in) |
| Depth | 276 mm (10.9 in) |
| Net Weight | 3.52 kg (7.8 lbs) |
| Maximum CPU Cooler Height | 82mm |
| Maximum GPU Length | 254mm |
Drive Bays | |
| External 5.25 inch | 0 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 1 |
| Internal 2.5 inch | 1 |
| Slim 5.25 inch | 1 |

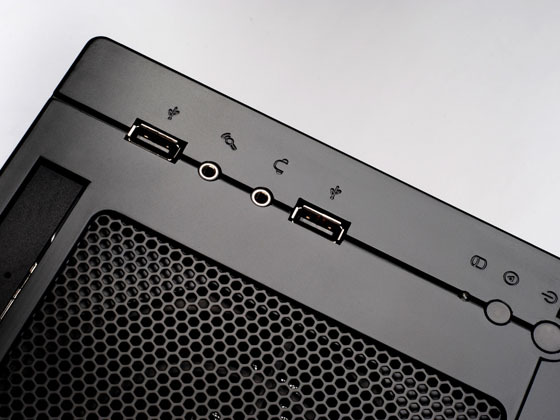

Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 1 x 120mm, 1 x 80mm (in power supply) |
