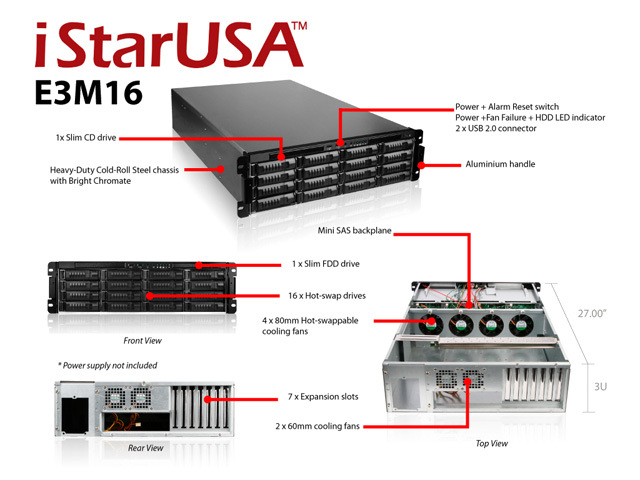

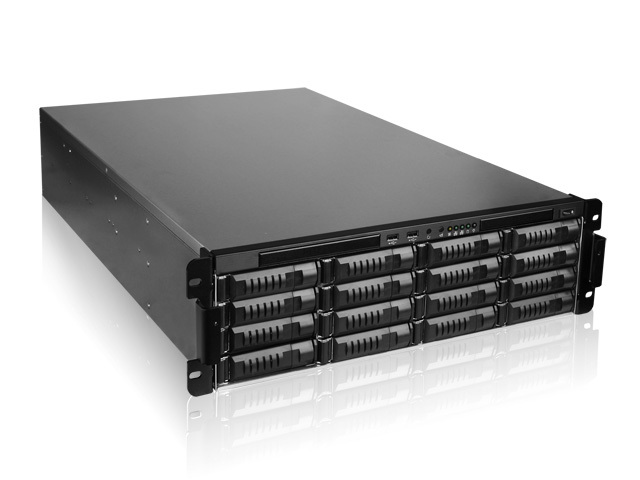

This 3U rackmount chassis from iStar is built for Extended ATX, dual-CPU motherboards. Moreover, it has an array of sixteen 3.5-inch removable drive bays along the front, providing room for tons of storage to be built into the system. That combination allows this chassis to serve equally well as a dedicated storage solution or a high-end server with massive storage capacity built right in.
Model: iStarUSA E3M16
Specifications
| Color | Silver & Black |
| Material | Steel |
| Type/Size | 3U Rackmount |
| Maximum Motherboard Size | EATX |
| Power Supply | None |
Dimensions | |
| Height | 133.3 mm (5.2 in) |
| Width | 482.6 mm (19.0 in) |
| Depth | 685.8 mm (27.0 in) |
Drive Bays | |
| External 5.25 inch | 0 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 0 |
| Internal 2.5 inch | 1 |
| Slim 5.25 inch | 1 |

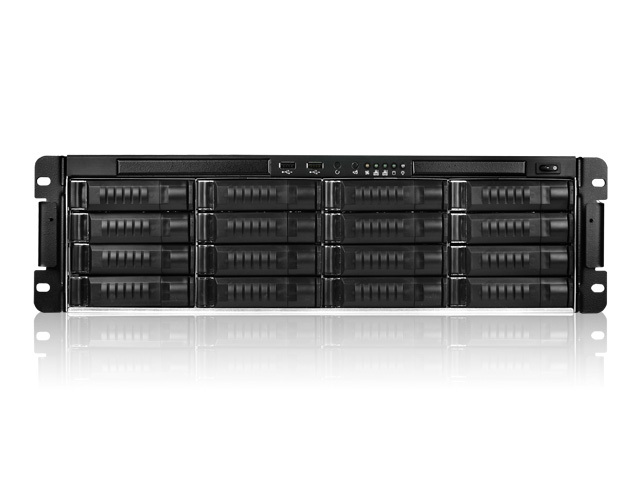

| Removable 3.5 inch | 16 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 0 |
| Audio Out | 0 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |

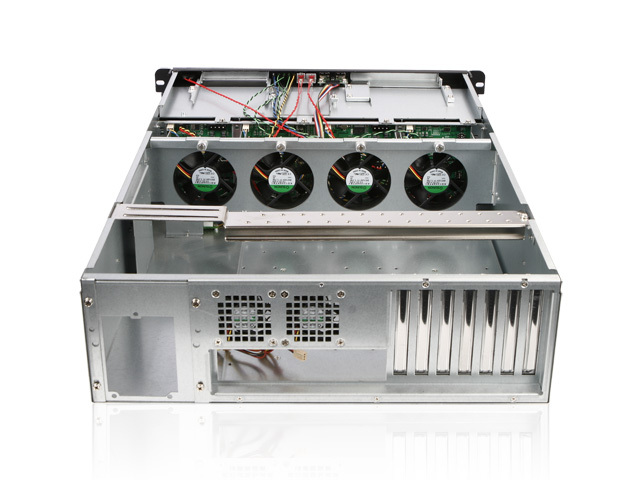

| Included Fans | Internal 4x 80mm, Rear 2x 60mm |
The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
