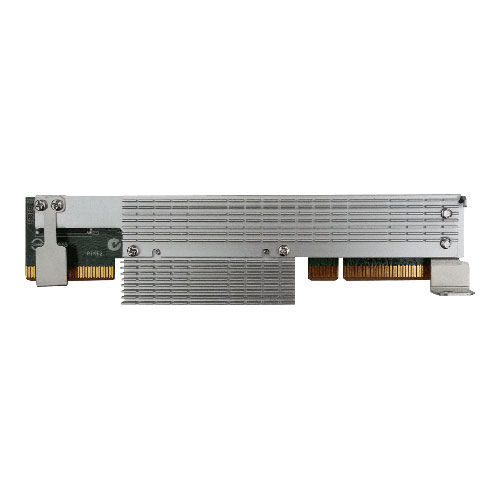

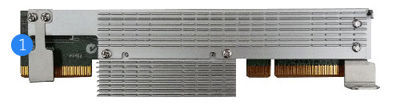

Model: Asus PIKE 2008
Specifications
Card Specifications | |
Manufacturer | Asus |
Type of Ports | SATA 6Gbps |
Port Location(s) | Motherboard |
RAID Modes Supported | 0,1,10,1E |
Native Supported Disks | 8 |
Battery Backup Available? | No |
Form Factor | Low Profile |
Controller Chip | |
Brand | LSI |
Model | SAS 2008 |
Dimensions | |
Height | 39.9 mm (1.6 in) |
Depth | 163.6 mm (6.4 in) |
Requires a motherboard with a compatible PIKE slot.
The ASUS PIKE 2008 allows you to create RAID 0, RAID 1, RAID 10 and RAID 1E set from SAS/SATA hard disk drives connected to the SAS/SATA connectors on the motherboard.
