Model: StarTech PEXUSB3S11
Specifications
Card Specifications | |
| Manufacturer | Startech |
| Type of Ports | SATA 3Gbps |
| Number of Ports | 2 |
| Port Location(s) | 1 Internal, 1 External |
| Form Factor | Low Profile |
Controller Chip | |
| Brand | NEC Electronics |
| Model | uPD720200 |
Dimensions | |
| Height | 19 mm (0.7 in) |
| Width | 76 mm (3.0 in) |
| Depth | 121 mm (4.8 in) |
| Net Weight | .4 kg (0.9 lbs) |

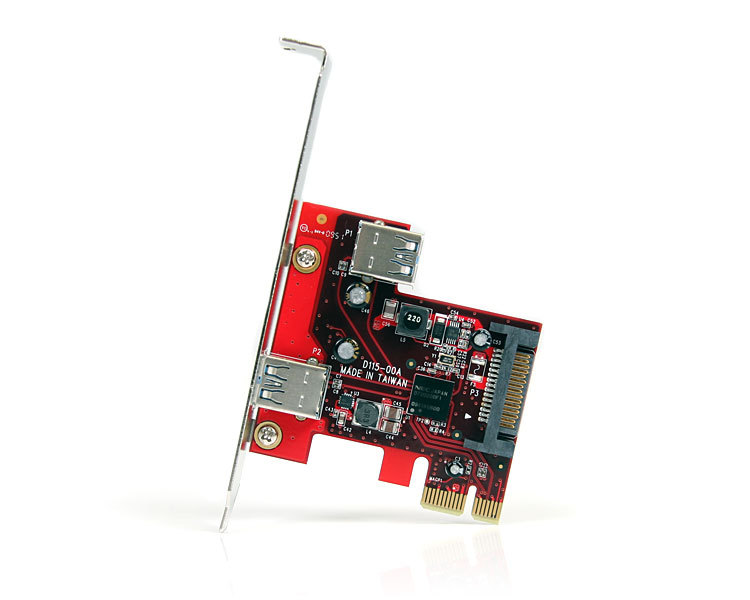

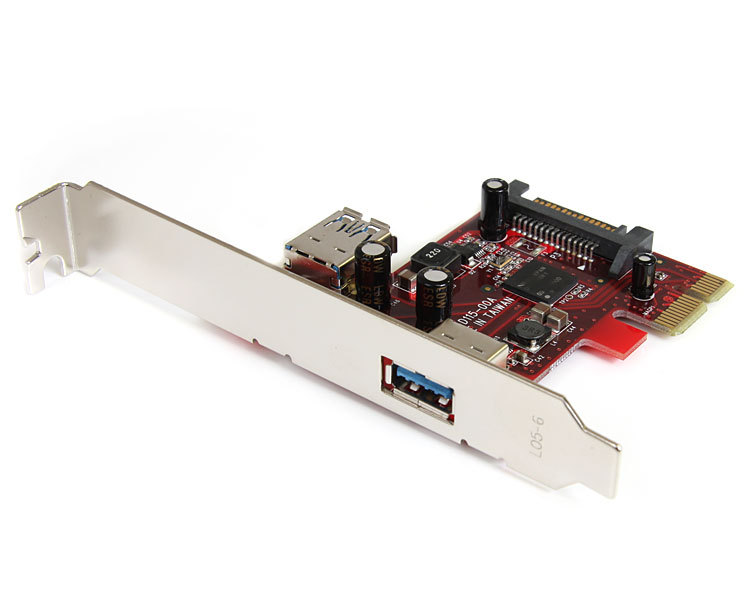

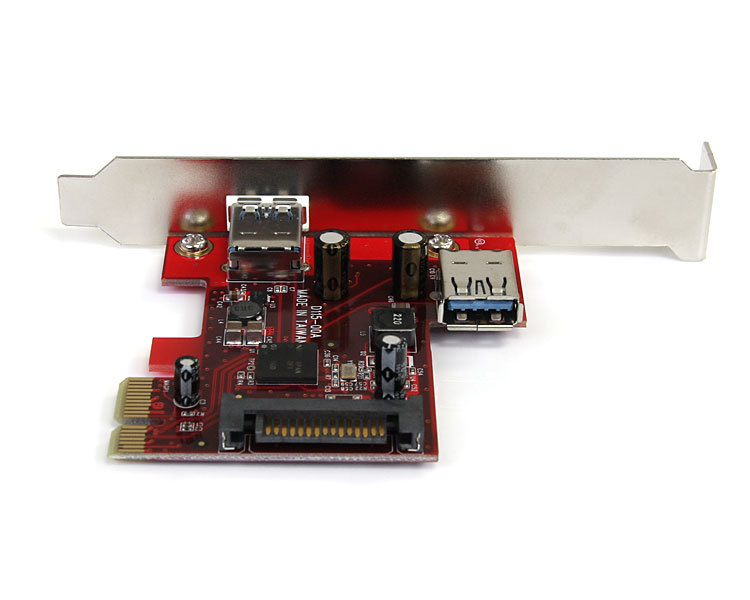

USB 3.0 card with one external and one internal port
Features
- Provides both internal and external USB 3.0 connections
- Features a SATA power connector to better match with newer systems equipped with more SATA than LP4 power connectors
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.96 specifications
- PCI Express 2.0 Compliant
- Provides up to 900mA per USB port
- Supports USB transfer speeds of 5Gbps (Super Speed), 480Mbps (High Speed), 12Mbps (Full Speed), and 1.5Mbps (Low Speed)
- Backward compatible with previous USB standards
- Supports up to 127 USB devices connected to a single interface. (Requires additional USB hubs to obtain this number)
- USB ports are Hot Swapping and Plug-and-Play compliant
- Supports PCI Bus Power Management Interface Specification revision 1.2
- Fully supports the following USB Communication Types: Control/Bulk/Interrupt/Isochronous Transfer
