Motherboard

Asus P8B WS

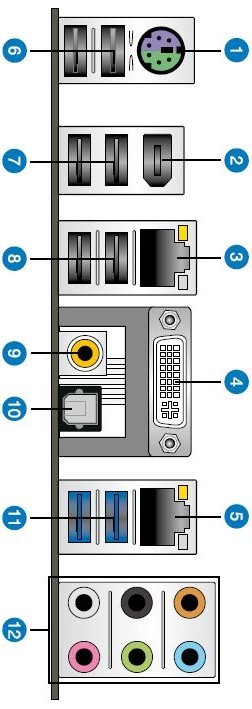

[ Rear Ports ][ Schematic ]

Asus P8B WS Picture 17437
Asus P8B WS Picture 17439
Asus P8B WS Picture 17438


Puget Systems Description

The Asus P8B WS is an ATX workstation-class motherboard for Intel's E3 family of Xeon processors. It features the Intel C206 chipset, ECC memory support, dual Intel gigabit Ethernet ports, SATA 6Gbps storage interface, and USB 3.0. It also sports multiple PCI-Express slots for a wide range of add-in cards: graphics adapters, RAID controllers, and a host of other options - making this a well-rounded platform for building affordable workstation computers.


Manufacturer Description
Model: Asus P8B WS

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel® Socket 1155, Socket 1155 for Intel® E3-1200 processors
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  C206
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel 82574L
Audio Controller  Realtek ALC 892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated
Maximum Shared Memory  1748 MB
Maximum Resolution  1920x1200
DVI  1
External Connections
USB 2.0  6
USB 3.0  2
Firewire  1
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
Internal Connections
USB 2.0  2 (providing 4 ports)
Firewire  1
SATA II 3.0Gbps  4
SATA III 6.0Gbps  2
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel C206
SATA III 6.0Gbps Controller 1  2 port - Intel C206
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 3  PCI Express 2.0 x16
Slot 4  PCI Express 2.0 x1
Slot 5  PCI Express 2.0 x16
Slot 6  PCI
Slot 7  PCI Express 2.0 x16
Additional Information
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Dimensions
Height  305 mm (12.0 inches)
Width  245 mm (9.6 inches)

PCI-E x16 slots configurable as x16, [empty], x4, x4 or x8, x8, x4, x4

Need more information? Email us your questions about the Asus P8B WS.
