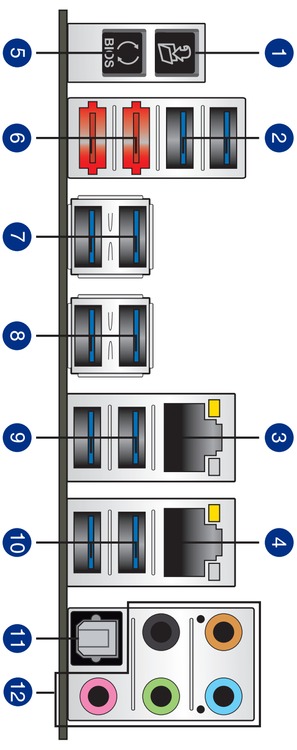

Asus X99-E WS Ports
Q-Code Logger Button: Sends Q-Code event logs to a drive in the corresponding USB port. See motherboard manual for more.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
External SATA Ports: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

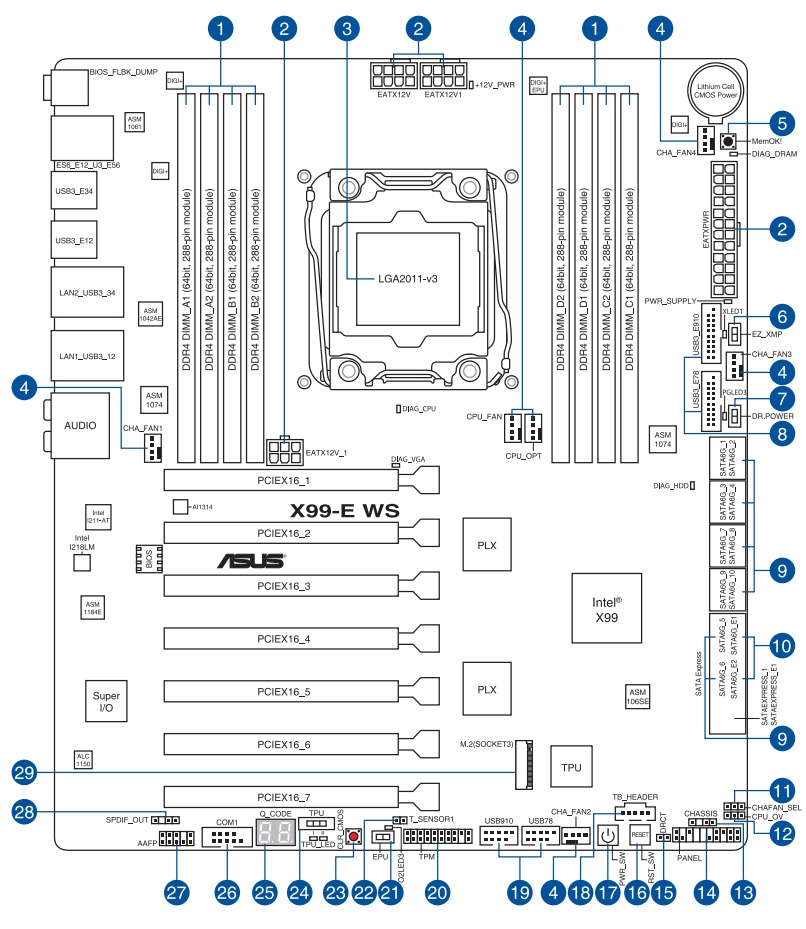

Asus X99-E WS Schematic

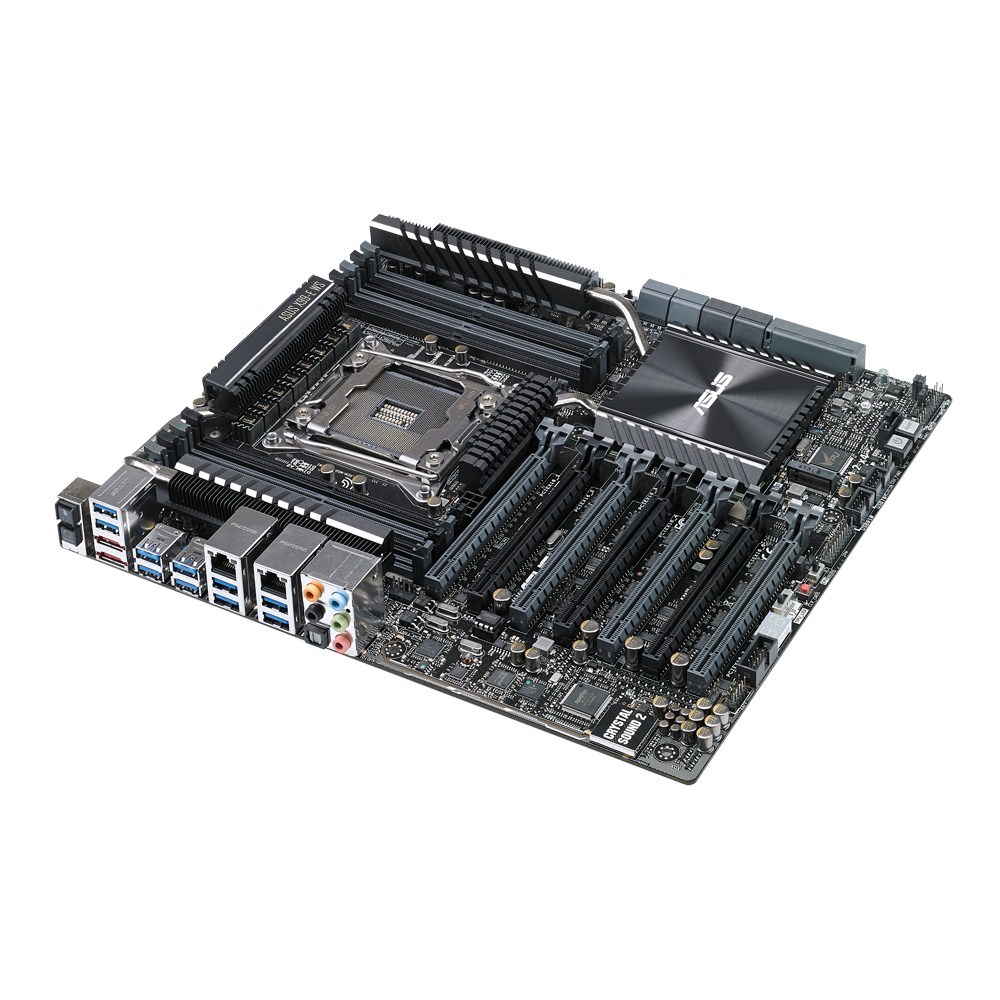

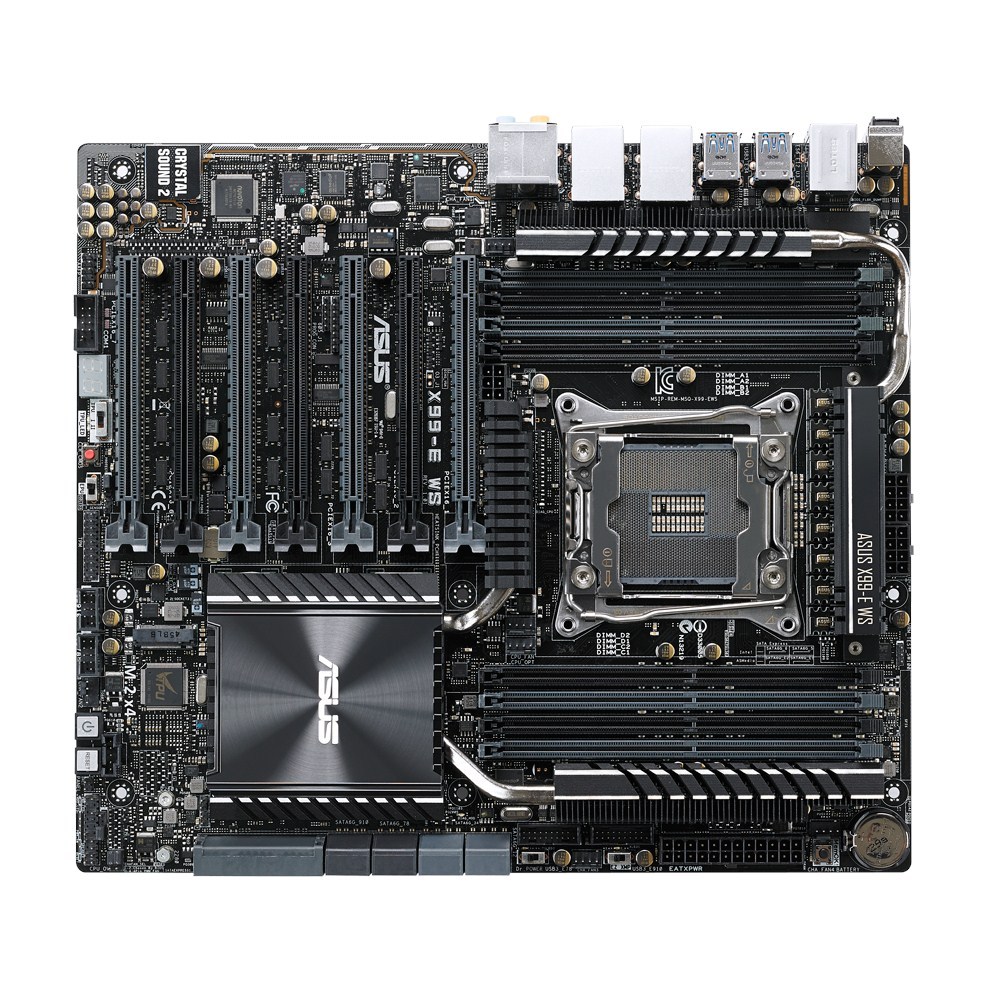

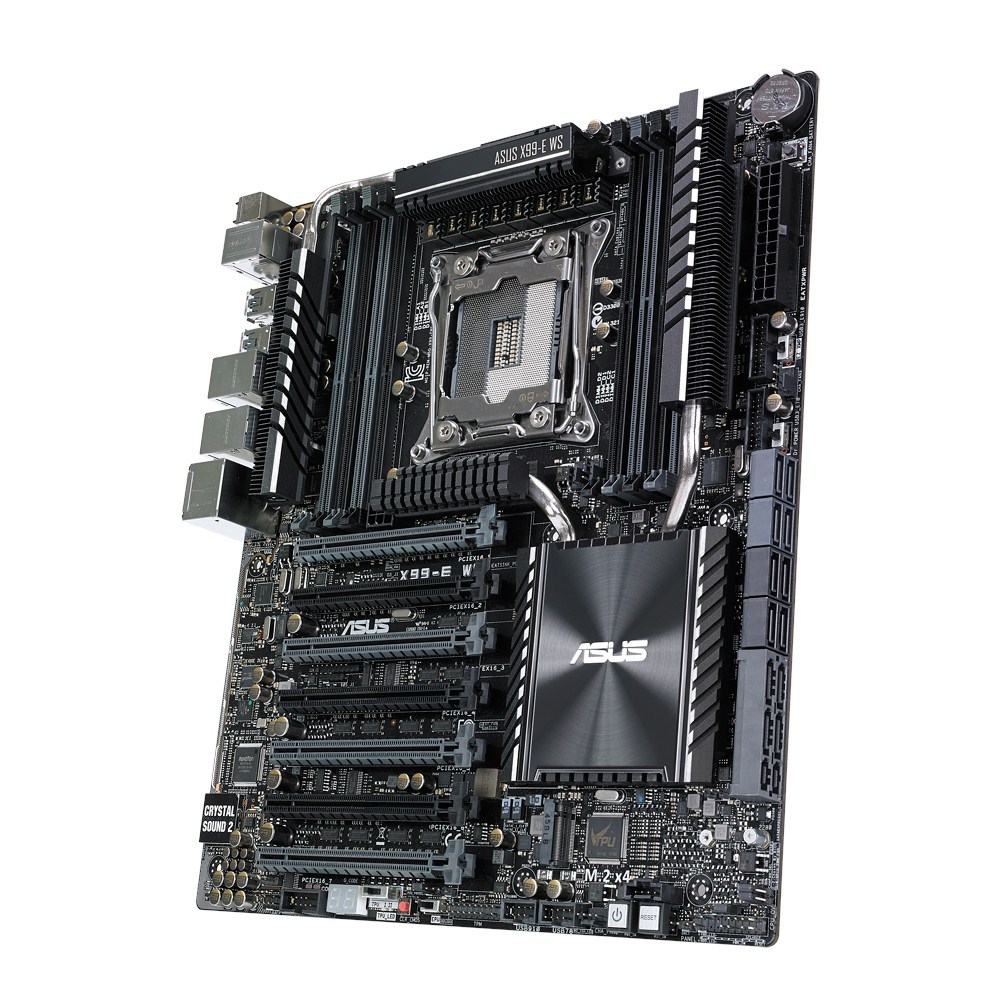

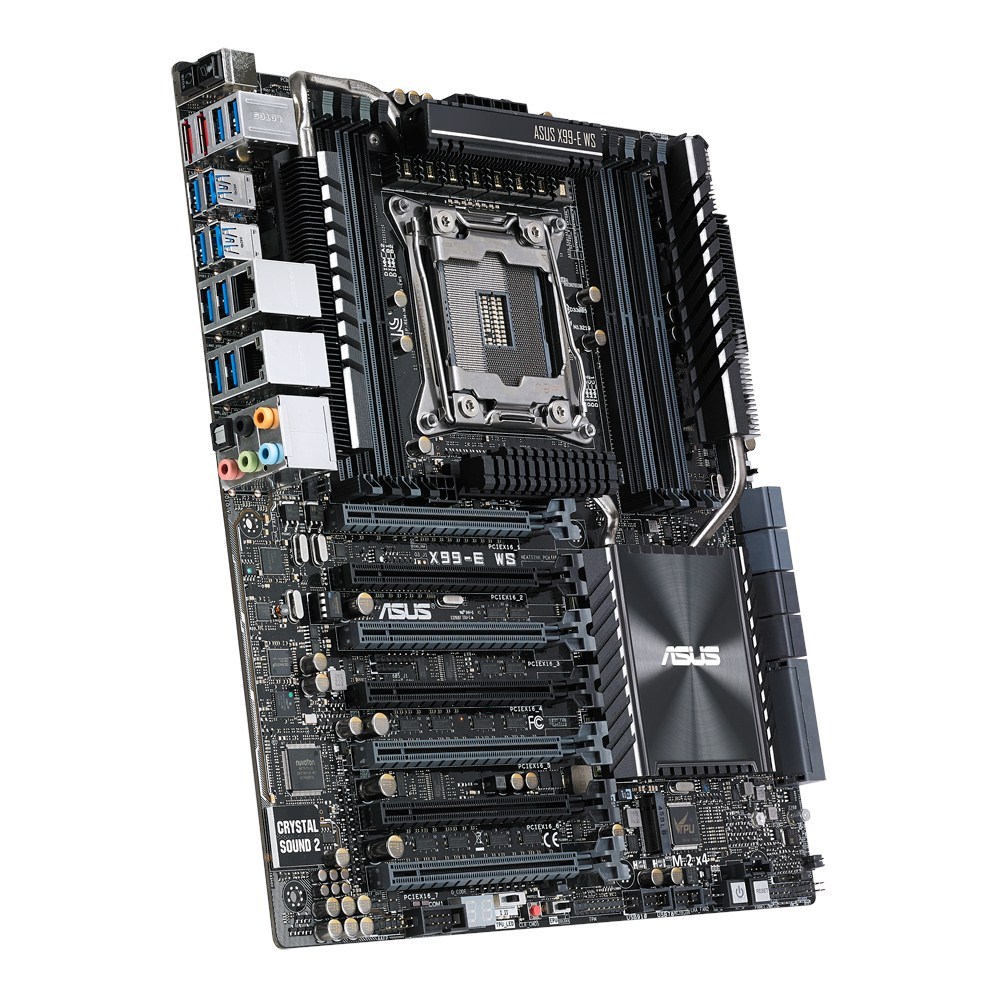

Model: Asus X99-E WS
Specifications
| Socket | 2011-3 |
| CPU Compatibility | Intel Core i7 Processors for LGA 2011-v3 Socket |
| Form Factor | Other |
| Chipset Manufacturer | Intel |
| Chipset | X99 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel I210-AT, Intel I218LM |
| Audio Controller | Realtek ALC1150 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2133 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 64 GB |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 10 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 2 |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| SATA III 6.0Gbps | 8 |
| SATA Express | 2 |
| M.2 Connector | 1 |
| M.2 Support | M.2 Socket 3 for M Key, type 2260/2280 devices |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4 port - Intel X99 |
| SATA III 6.0Gbps Controller 2 | 4 port - Intel X99 |
| SATA III 6.0Gbps Controller 3 | 2 SATA Express/eSATA port - ASMedia |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 3.0 x8 in a x16 size |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI Express 3.0 x8 in a x16 size |
| Slot 7 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 (Only on SATA6G_12 and SATA6G_34 ports) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 267 mm (10.5 in) |
-With a 28 or 40-lane CPU, the PCI-E slots operate at single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x16/x8/x8 (through the use of dual PLX chips)
-Supports Asus Thunderbolt add-on card
-Motherboard is slightly wider than standard ATX motherboards
