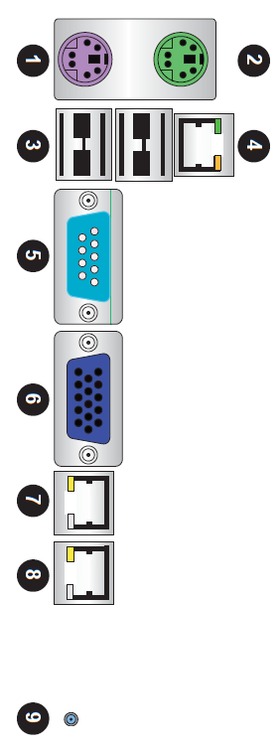

Supermicro H8QGi-F Ports
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
PS/2 Mouse Port: Connection for a PS/2 mouse.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.

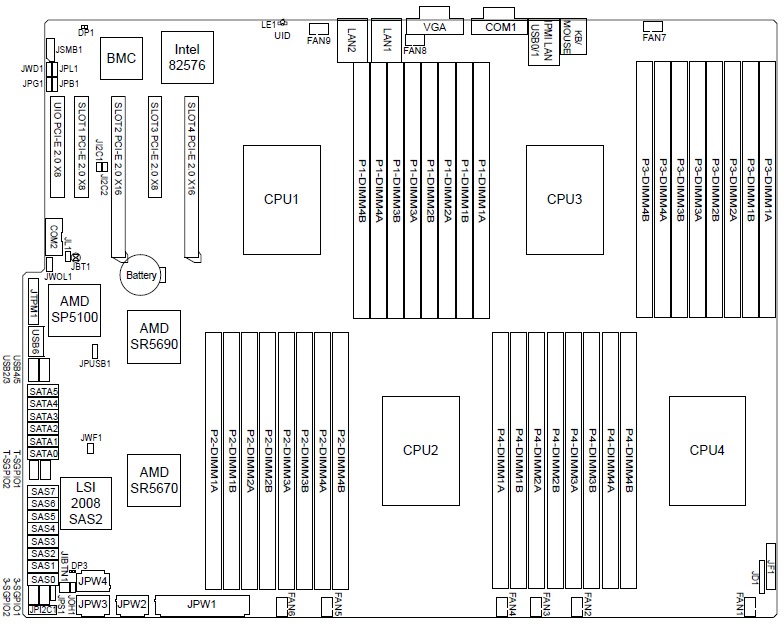

Supermicro H8QGi-F Schematic
Note: This motherboard does not have an onboard sound controller. If you'd like to add a sound card, please contact your sales representative.
Windows 7 and 8 only support two physical CPUs. We recommend Windows Server or Linux for use with this platform.
Model: Supermicro MBD-H8QGi-F
Specifications
| Socket | Quad G34 |
| CPU Compatibility | 16/12/8/4-Core ready AMD Opteron 6000 Series processors |
| Form Factor | Other |
| Chipset Manufacturer | AMD |
| Chipset | AMD SR5690/SR5670/SP5100 |
| Front Side Bus | HyperTransport |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel 82576 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 2 |
| Color | Green |
Memory Support | |
| Type | DDR3 ECC Registered |
| Maximum Speed | 1600 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| Chipset Manufacturer | Matrox |
| Processor Type | G200 |
| Onboard Memory | 16 MB |
| VGA | 1 |
External Connections | |
| USB 2.0 | 2 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| LAN (RJ45) | 3 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 2.0 | 4 (providing 8 ports) |
| SATA II 3.0Gbps | 6 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port - AMD SP5100 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x8 |
| Slot 3 | PCI Express 2.0 x16 |
| Slot 4 | PCI Express 2.0 x8 |
Additional Information | |
| RAID Support | 0,1,10 |
Dimensions | |
| Height | 419 mm (16.5 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 1 kg (2.2 lbs) |
