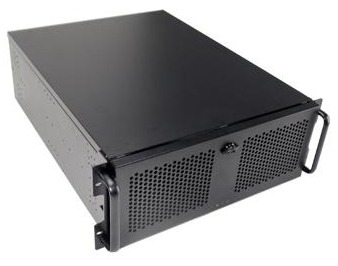

Antec 4U22EPS650 4U Rackmount Case Ports
Power Switch: On/off button for the device.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN LED: Light that turns on when there is any wired network activity.
Auxilary LED: Light that can be used by certain motherboards to show system-specific information. May be inactive.
HDD LED: Light that turns on when there is drive activity.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Model: Antec 761345-94554-7
Specifications
| Color | Black |
| Material | Plastic front panel, steel frame |
| Type/Size | 4U Rackmount |
| Maximum Motherboard Size | EATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 178 mm (7.0 in) |
| Width | 432 mm (17.0 in) |
| Depth | 560 mm (22.0 in) |
| Net Weight | 17.3 kg (38.1 lbs) |
Drive Bays | |
| External 5.25 inch | 3 |
| External 3.5 inch | 3 |
| Internal 3.5 inch | 7 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 0 |
| Audio Out | 0 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 1 x 120mm, 2 x 80mm |
Features
- Alternate Drive Bay Configuration: 6x5.25" + 3x3.5" (External), 3x3.5"(Internal) drive bays w/out 120mm intake Fan
Rack Mount Enclosures Rackmount enclosures have been an important and growing niche market for years. The explosive growth of networking, ISP and telecom applications have taken rackmount enclosures into mainstream. Now, Antec proudly brings its reputation for quality and value to this market. Our design and production skills are combined to produce our line of solid, superior rackmount cases.
Included 650W PSU connectors:
24 Pin ATX: 1
4 Pin ATX: 1
6 Pin PCI-E: 1
SATA: 4
Molex: 5
Floppy: 1
