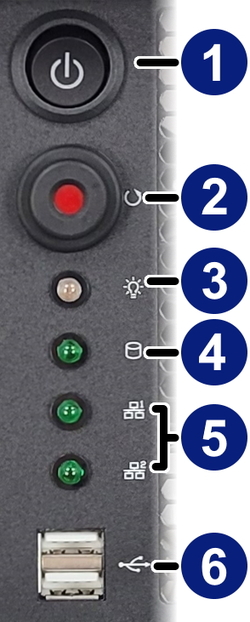

Chenbro RM41300-FS81 4U Rackmount Case Ports
Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
HDD LED: Light that turns on when there is drive activity.
LAN LED: Light that turns on when there is any wired network activity.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).

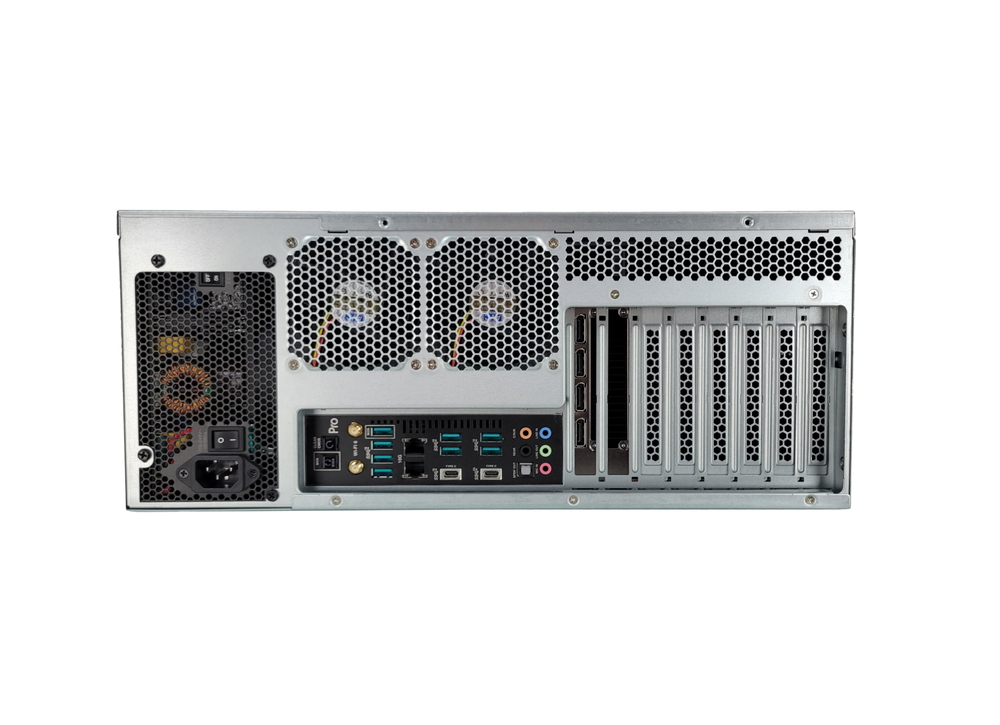

This 4U rackmount chassis from Chenbro can house up to SSI EEB size motherboards, accommodating quite a diverse range of hardware configurations. For cooling, one 120mm intake and two 80mm exhaust fan mounts are available.
Model: Chenbro RM41300-FS81
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 4U Rackmount |
| Maximum Motherboard Size | SSI EEB |
| Power Supply | None |
Dimensions | |
| Height | 176 mm (6.9 in) |
| Width | 430 mm (16.9 in) |
| Depth | 564 mm (22.2 in) |
| Net Weight | 12.5 kg (27.6 lbs) |
| Maximum CPU Cooler Height | 4U |
| Maximum GPU Length | Full Length |
Drive Bays | |
| External 5.25 inch | 3 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 4 |
| Slim 5.25 inch | 1 |
Front Panel Connectors | |
| USB 2.0 | 2 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 1x 120mm, 2x 80mm |
| Total Fan Mounts | 3x 120mm, 3x 80mm |
Compatible with Chenbro 84H323610-034 27.5-inch Rail Set.
