Cooler Master's NR200P V2 is a small-form-factor chassis that still has room for surprisingly high-performance components. While not as compact as some other cases, it is optimized to make the most of its size - fitting a mini ITX motherboard, three-slot video card, and an AIO liquid cooler with up to 280mm radiator. Plenty of ventilation is provided - with dust filters on the top, bottom, and both sides - and four fan mounts are available to help keep all of the components cool.

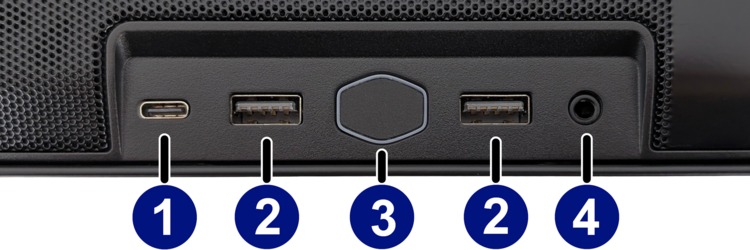

Front I/O connections and the power button are located along the top of the front bezel, and include one USB Type C, two USB Type A, and a 3.5mm headset jack. The chassis can mount an SFX or SFX-L power supply, and one 2.5" drive bay is available internally for storage (along with any M.2 slots on the motherboard).
Front I/O connections and the power button are located along the top of the front bezel, and include one USB Type C, two USB Type A, and a 3.5mm headset jack. The chassis can mount an SFX or SFX-L power supply, and one 2.5" drive bay is available internally for storage (along with any M.2 slots on the motherboard).
Model: Cooler Master MasterBox NR200P V2: NR200PV2-KCNN-S00
Specifications
Color | Black |
Material | Steel |
Type/Size | Small Form Factor |
Maximum Motherboard Size | ITX |
Case Window | Yes |
Dimensions | |
Height | 292 mm (11.5 in) |
Width | 185 mm (7.3 in) |
Depth | 372 mm (14.6 in) |
Net Weight | 4.425 kg (9.8 lbs) |
Maximum CPU Cooler Height | 67mm |
Maximum GPU Length | 334mm |
Maximum PSU Length | 130 |
Drive Bays | |
Internal 3.5 inch | 1 |
Internal 2.5 inch | 1 |
Front Panel Connectors | |
USB 3.0 | 2 |
Audio Out | 1 |
USB-C | 1 |
Cooling System | |
Included Fans | 1x 120mm |
Total Fan Mounts | 2x top 120mm, 2x bottom 120mm |
