Fractal Design Define 7 (Dark Windowed Side Panel)

Case

Fractal Design Define 7 (Dark Windowed Side Panel) Main Picture


Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80395Fractal Design Define 7 (Dark Windowed Side Panel) Picture 82209Fractal Design Define 7 (Dark Windowed Side Panel) Picture 82210Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80398Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80399Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80397Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80403Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80400Fractal Design Define 7 (Dark Windowed Side Panel) Picture 80401Fractal Design Define 7 (Dark Windowed Side Panel) Picture 82211

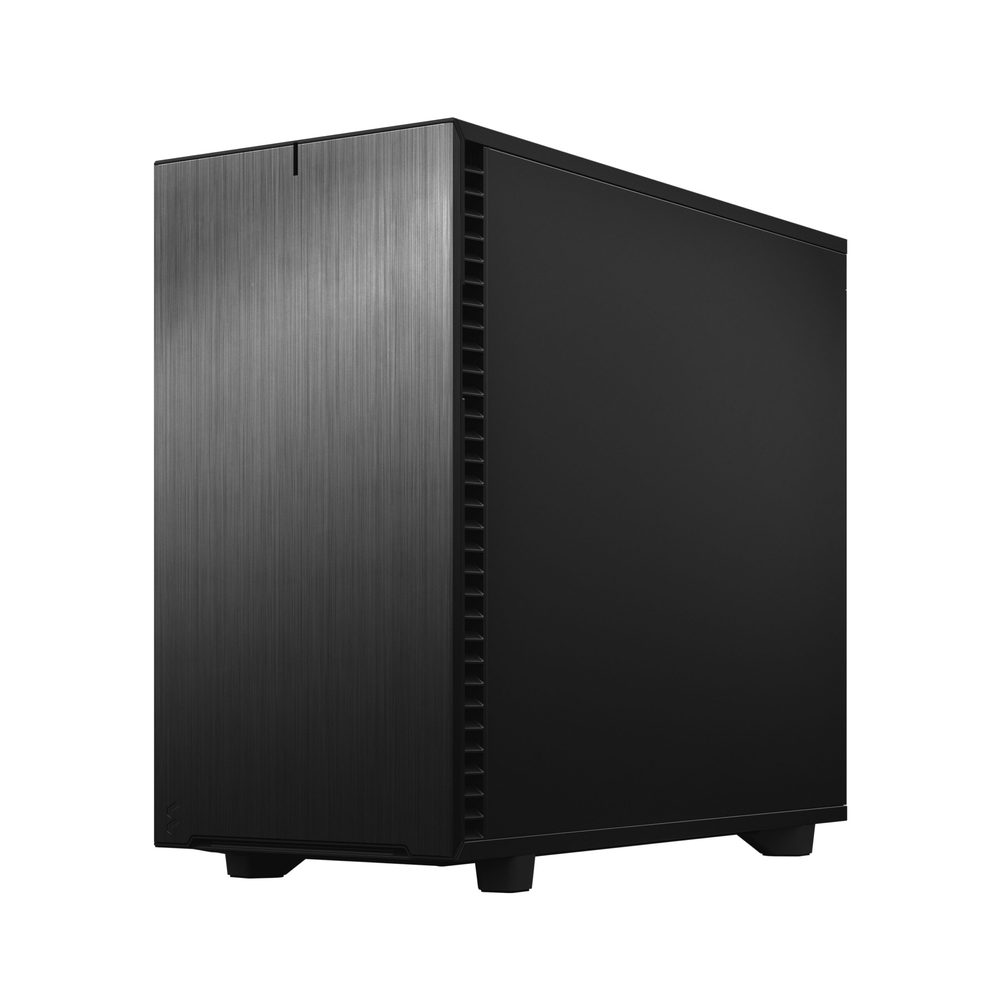

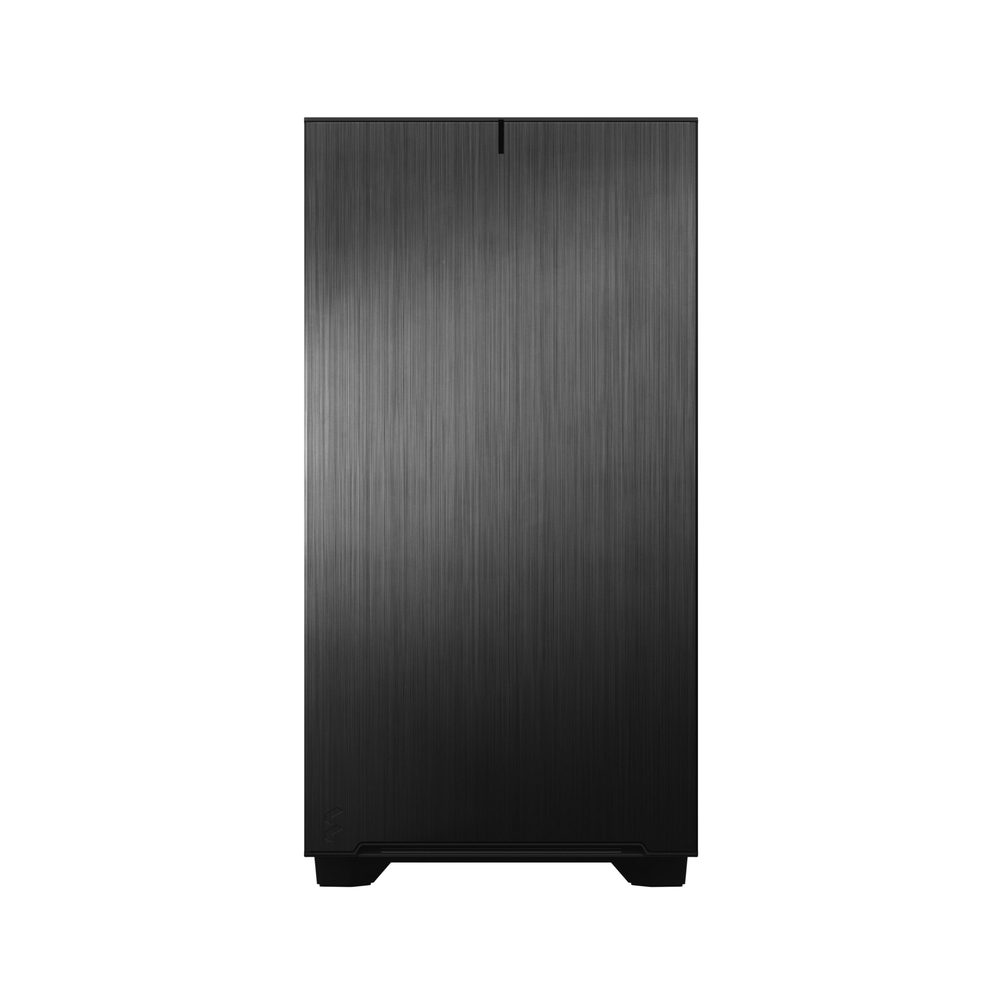

The Define 7 chassis is a generational upgrade to Fractal Design's quiet case series. It is classified as an ATX mid-tower and includes a reversible front door, noise dampening padding on the front and side panels, and filters over the front and bottom air intakes.

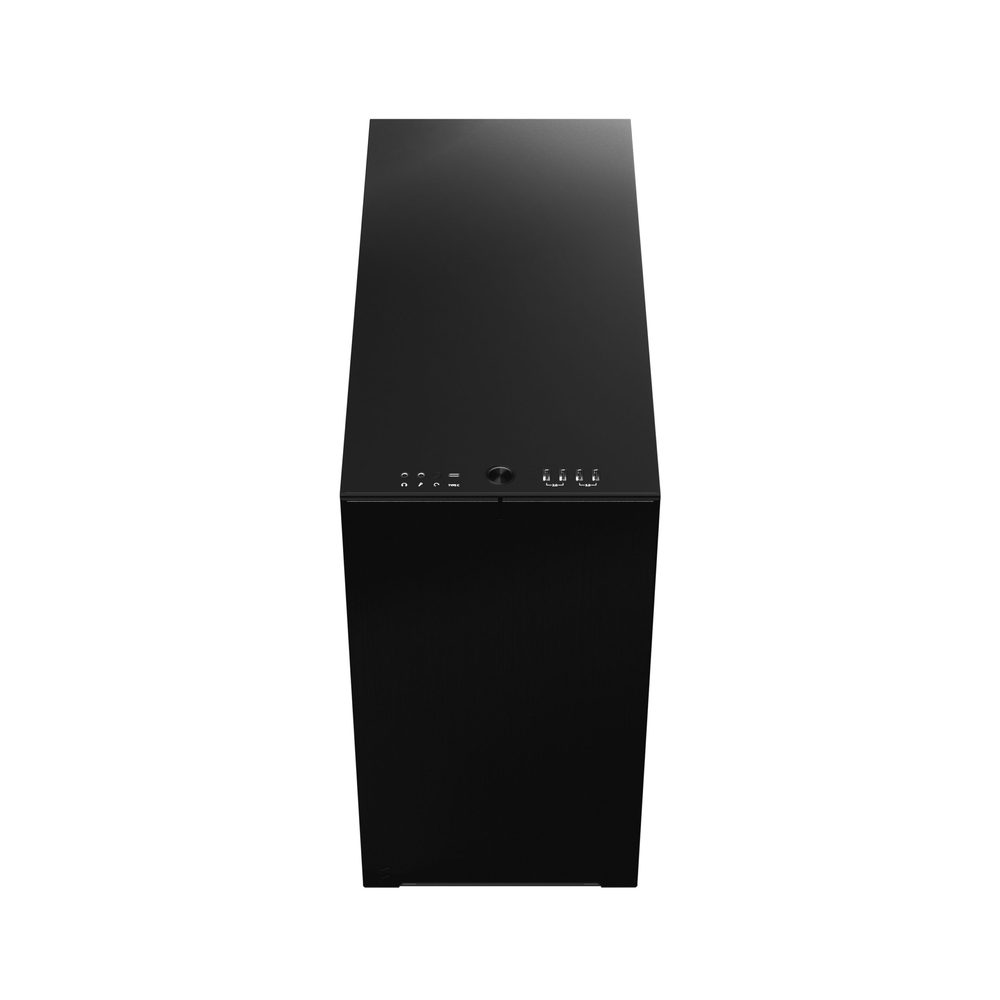

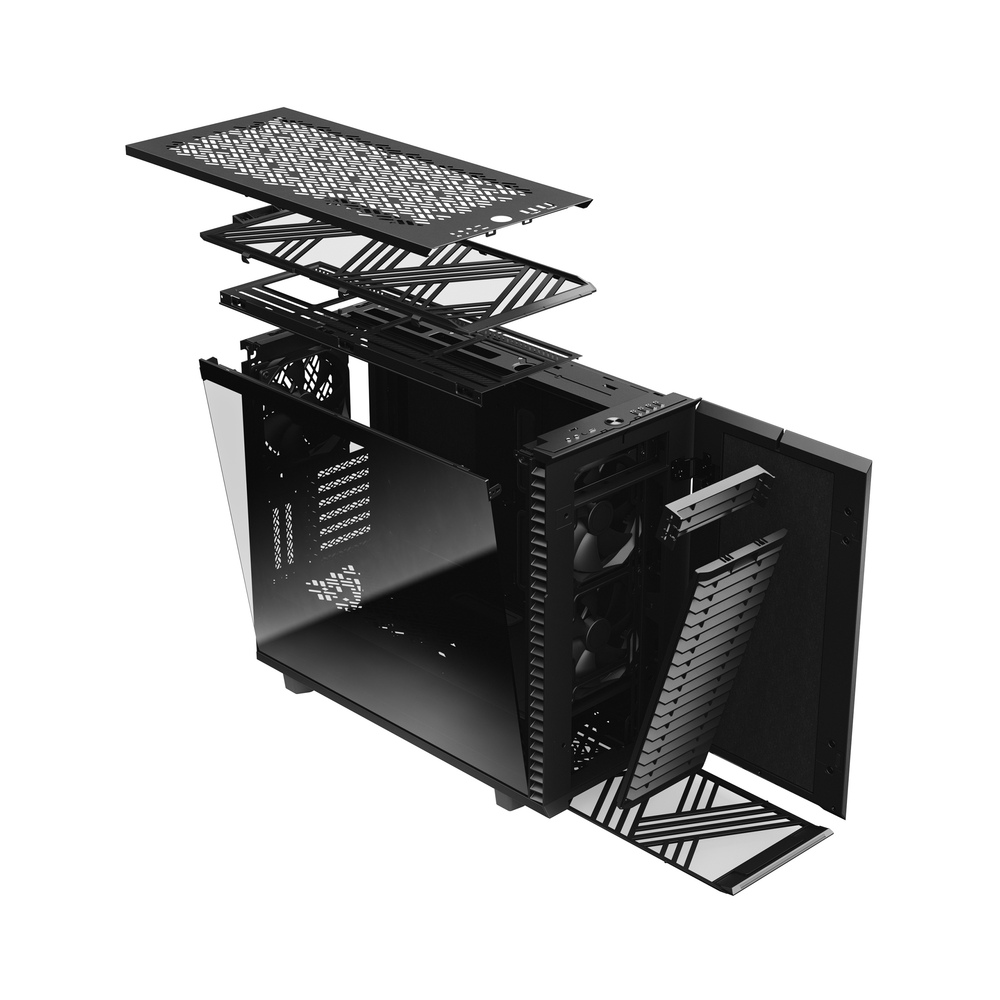

Similar to its predecessors, the Define 7 has a flexible internal layout. However, the "floating" drive mounts are not secure enough for shipping - so the number of drives that can be installed is rather limited. We can support one 5.25-inch front drive, three 3.5-inch hard drives, and two more 2.5-inch SSDs; the 3.5-inch locations can also mount smaller SSDs if needed. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include one USB-C, two each of USB 2.0 & 3.0 ports, and both headphone and mic plugs.

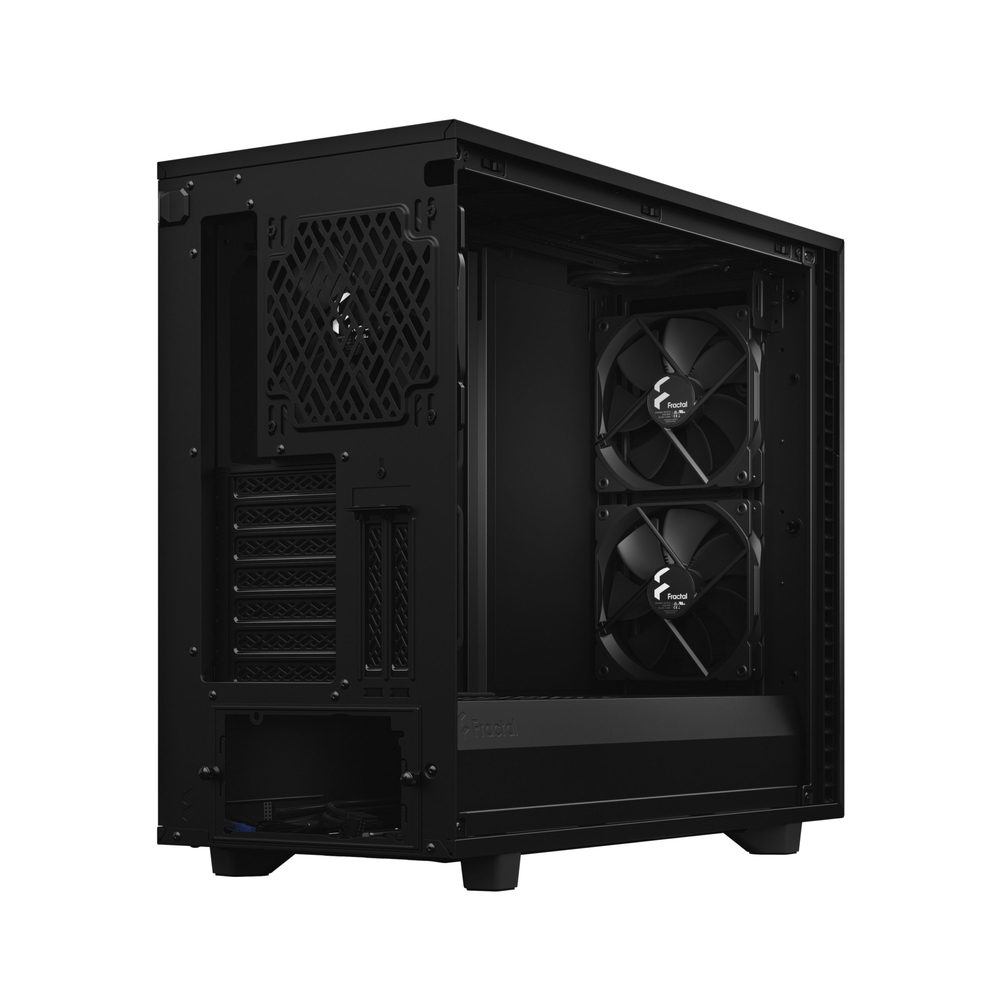

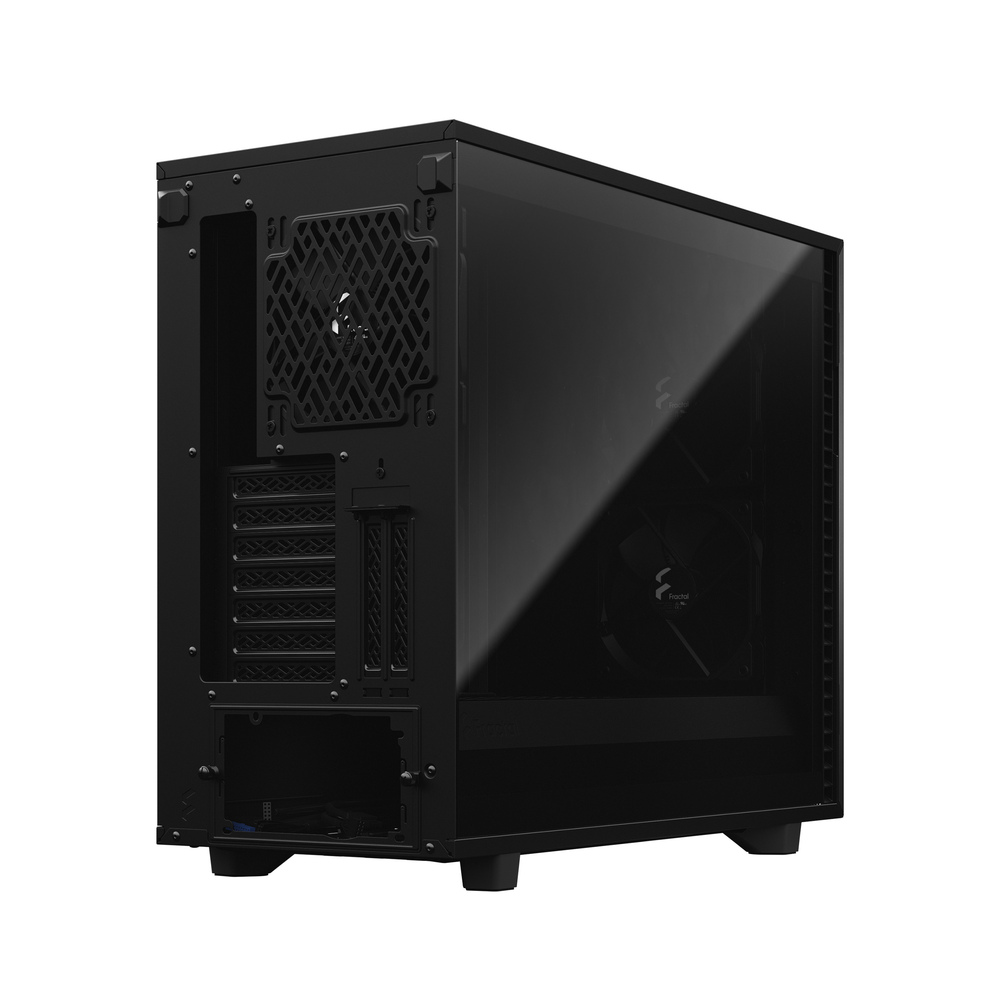

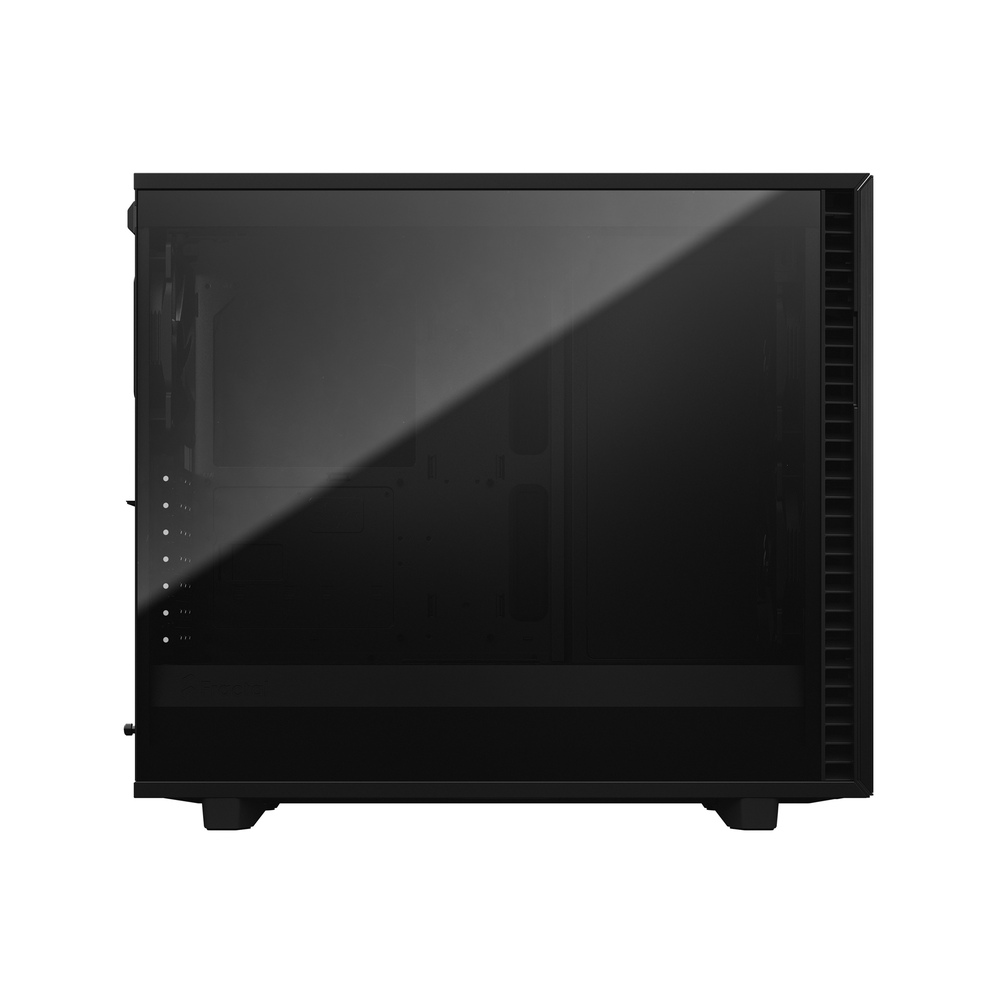

This variant of the Define 7 comes with a tempered glass side panel in place of the standard panel on the left side. It has a dark tint and covers the full side of the case, not just a partial window like some older models.

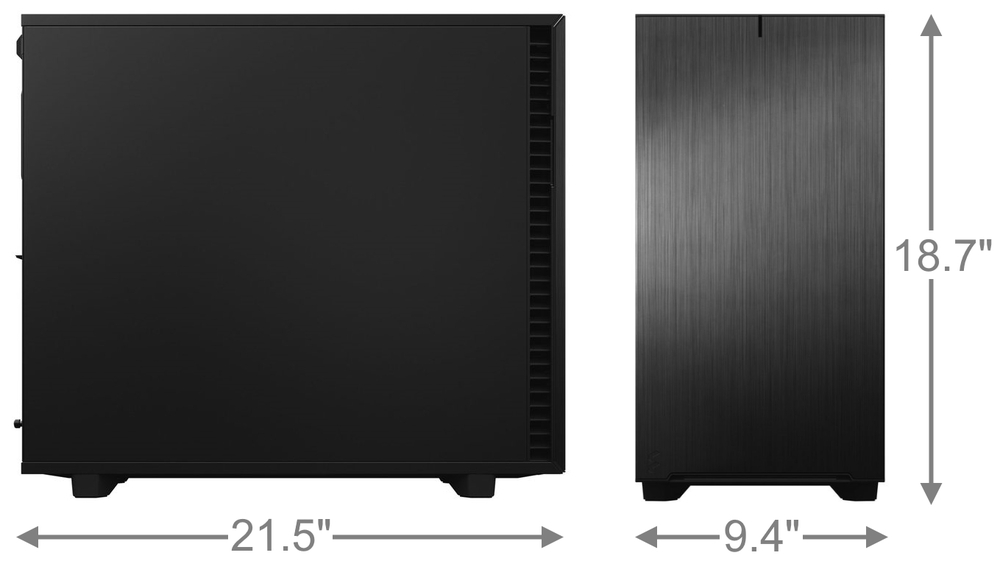

Note: Dimensions: 18.7" H x 9.4" W x 21.5" D

Model: Fractal Design FD-C-DEF7A-03

Specifications

Color Black
Material Aluminum and plastic front panel, steel frame
Type/Size Mid Tower
Maximum Motherboard Size ATX
Case Window Yes
Dimensions
Height 475 mm (18.7 in)
Width 240 mm (9.4 in)
Depth 547 mm (21.5 in)
Net Weight 13.45 kg (29.7 lbs)
Maximum CPU Cooler Height 185mm
Maximum GPU Length 445mm
Maximum PSU Length 250mm
Drive Bays
External 5.25 inch 1
Internal 2.5 inch 2
Internal 2.5/3.5 inch 2
Front Panel Connectors
USB 2.0 2
USB 3.0 2
Audio In 1
Audio Out 1
USB-C 1
Cooling System
Cooling Method Air
Included Fans 3 140mm Fractal GP-14
Total Fan Mounts 9
