Fractal Design Define 7 Mini

Case

Fractal Design Define 7 Mini Main Picture


Fractal Design Define 7 Mini Picture 75957Fractal Design Define 7 Mini Picture 75958Fractal Design Define 7 Mini Picture 75959Fractal Design Define 7 Mini Picture 75960Fractal Design Define 7 Mini Picture 75961Fractal Design Define 7 Mini Picture 75962Fractal Design Define 7 Mini Picture 75963Fractal Design Define 7 Mini Picture 75964Fractal Design Define 7 Mini Picture 75968
Fractal Design's Define 7 Mini chassis is a smaller take on the popular Define 7 series of cases. It provides a flexible design with options to house a quiet computer or a powerhouse workstation equally well, without taking up as much space as other cases. This is accomplished by using a MicroATX size motherboard and 120mm fans. It comes with two such fans, but can fit up to five in total. The front connections are located at the top of the case, directly above the front door, and include two USB 3.0, one USB-C, as well as headphone and mic plugs.

This "Mini" variant also does away with the front door and 5.25-inch drive bays, in order to provide more space for internal components and unobstructed airflow. That leaves fewer mount locations for hard drives and SSDs internally than older versions, but there are still enough for a variety of configurations.

Model: Fractal Design FD-C-DEF7M-01

Specifications

Color Black
Material Steel
Type/Size Micro Tower
Maximum Motherboard Size MicroATX
Case Window No
Dimensions
Height 406 mm (16.0 in)
Width 205 mm (8.1 in)
Depth 399 mm (15.7 in)
Net Weight 6.84 kg (15.1 lbs)
Maximum CPU Cooler Height 167mm
Maximum GPU Length 331mm
Maximum PSU Length 175mm
Drive Bays
External 5.25 inch 0
Internal 2.5 inch 2

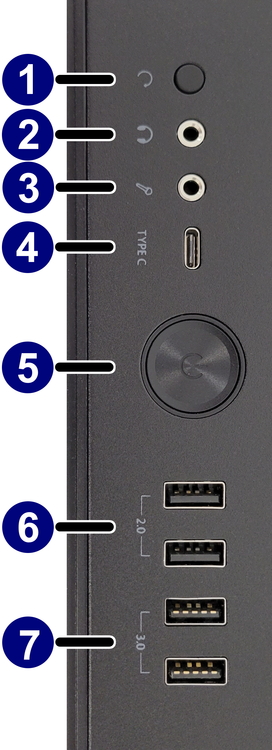

Front Panel Connectors
USB 3.0 2
Audio In 1
Audio Out 1
USB-C 1
Cooling System
Cooling Method Air
Included Fans 2x 120mm
Total Fan Mounts 7x 120mm or 4x 140mm
