Fractal Design Define Mini C

Case

[ Front Panel ]

Fractal Design Define Mini C Picture 62222Fractal Design Define Mini C Picture 62223Fractal Design Define Mini C Picture 62224Fractal Design Define Mini C Picture 62226Fractal Design Define Mini C Picture 62228Fractal Design Define Mini C Picture 62229Fractal Design Define Mini C Picture 62225Fractal Design Define Mini C Picture 62292

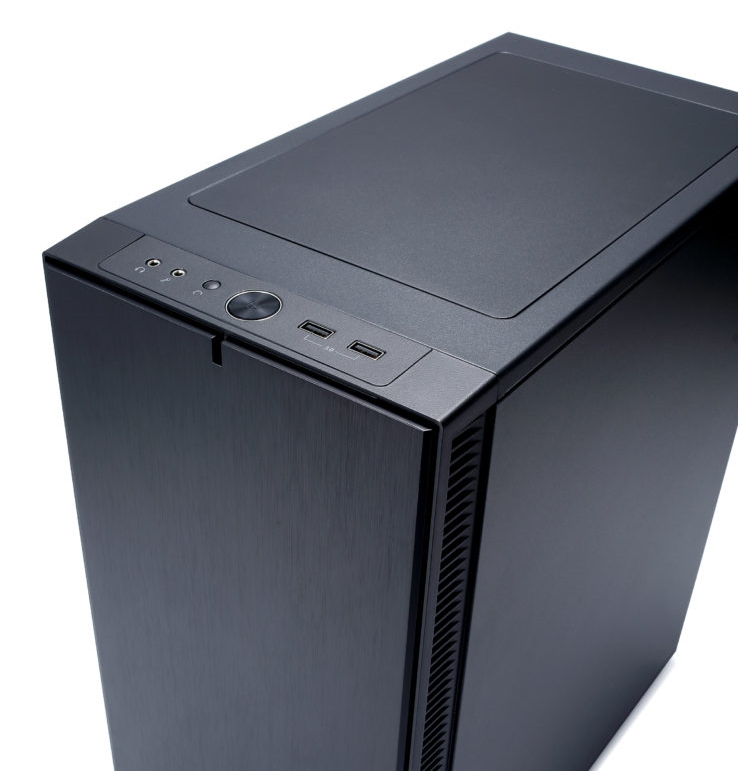

Fractal Design's Define Mini C chassis is a smaller take on the popular Define series of cases. It provides a flexible design with options to house a quiet computer or a powerhouse workstation equally well, without taking up as much space as other cases. This is accomplished by using a MicroATX size motherboard and 120mm fans. It comes with two such fans, but can fit up to six in total. The front connections are located at the top of the case, directly above the front door, and include two USB 3.0 ports alongside headphone and mic plugs.

This "C" variant does away with the front door and 5.25-inch drive bays, in order to provide more space for internal components and unobstructed airflow. That leaves fewer mount locations for hard drives and SSDs internally than older versions, but there are still enough for a variety of configurations.

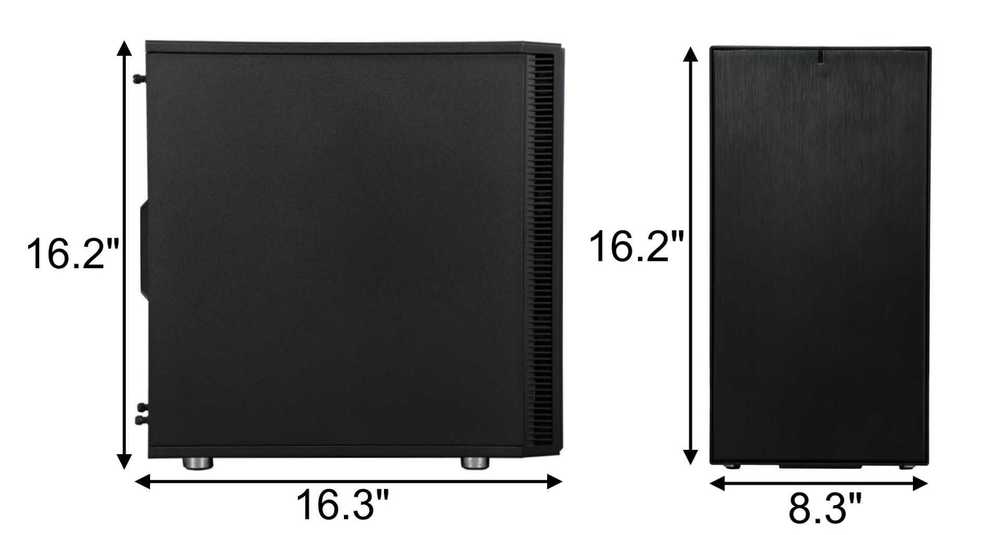

Note: Dimensions: 16.2" H x 8.3" W x 16.3" D

Model: Fractal Design FD-CA-DEF-MINI-C-BK

Specifications:
spacer
Color  Black
Material  Plastic front panel, steel frame
Type/Size  Micro Tower
Maximum Motherboard Size  MicroATX
Case Window  No
Dimensions
Height  412 mm (16.2 in)
Width  210 mm (8.3 in)
Depth  413 mm (16.3 in)
Net Weight  6.9 kg (15.2 lbs)
Maximum CPU Cooler Height  170
Maximum GPU Length  315
Maximum PSU Length  175
Drive Bays
External 5.25 inch  0
External 3.5 inch  0
Internal 2.5 inch  3
Internal 2.5/3.5 inch  2

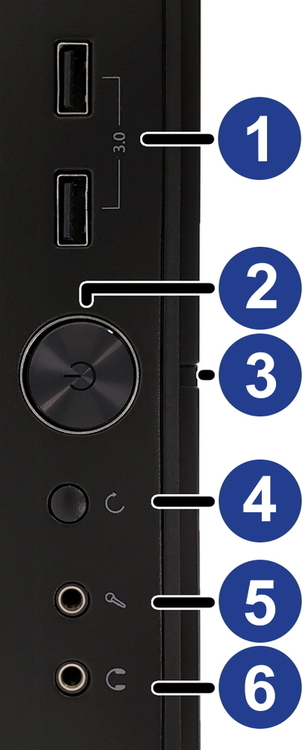

Front Panel Connectors
USB 2.0  0
USB 3.0  2
Audio In  1
Audio Out  1
USB-C  0
Cooling System
Cooling Method  Air
Included Fans  2 120mm Fractal GP12 (3-pin)
Total Fan Mounts  5


Configure a quiet custom PC with the Fractal Design Define Mini C.
