Fractal Design Define R6 USB-C Black w/ Window

Case

[ Front Panel ]

Fractal Design Define R6 USB-C Black w/ Window Picture 50045Fractal Design Define R6 USB-C Black w/ Window Picture 50033Fractal Design Define R6 USB-C Black w/ Window Picture 50040Fractal Design Define R6 USB-C Black w/ Window Picture 50046Fractal Design Define R6 USB-C Black w/ Window Picture 50047Fractal Design Define R6 USB-C Black w/ Window Picture 50041Fractal Design Define R6 USB-C Black w/ Window Picture 50036Fractal Design Define R6 USB-C Black w/ Window Picture 50037Fractal Design Define R6 USB-C Black w/ Window Picture 50038Fractal Design Define R6 USB-C Black w/ Window Picture 50044Fractal Design Define R6 USB-C Black w/ Window Picture 50039Fractal Design Define R6 USB-C Black w/ Window Picture 50043Fractal Design Define R6 USB-C Black w/ Window Picture 51280Fractal Design Define R6 USB-C Black w/ Window Picture 53520

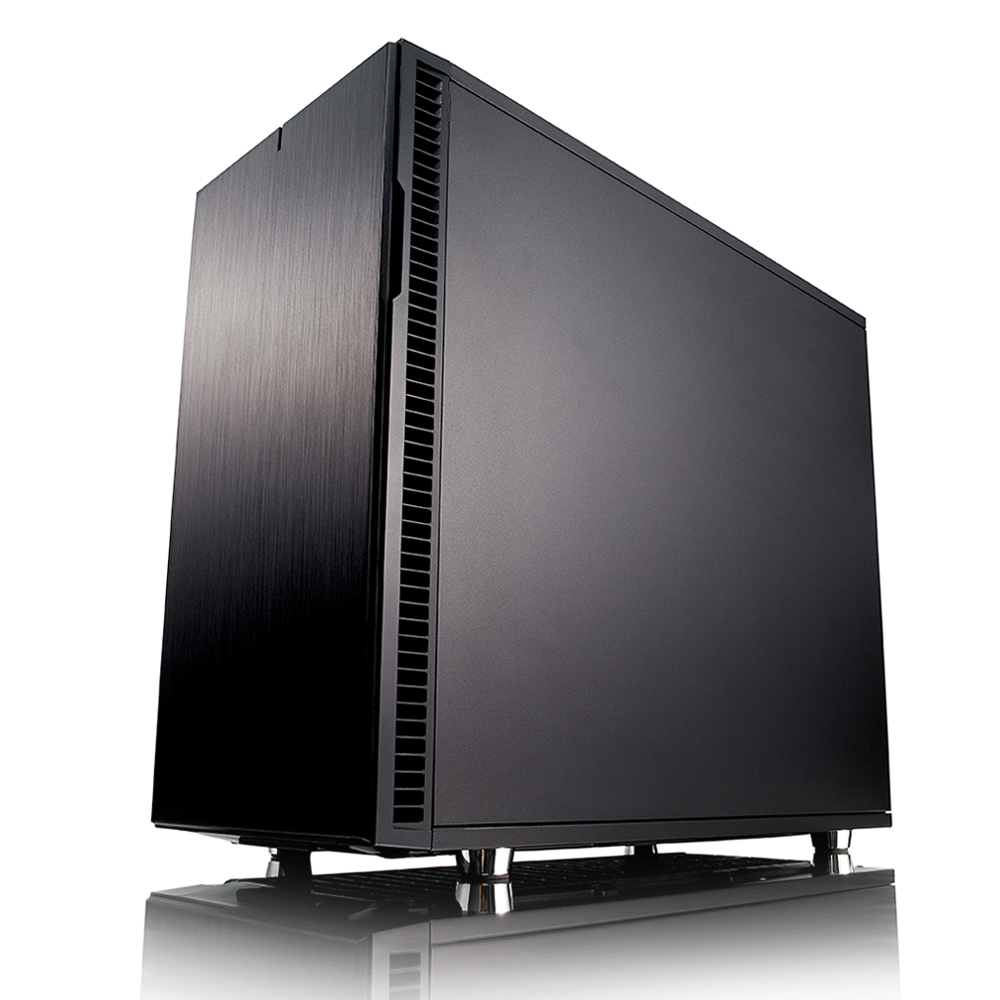

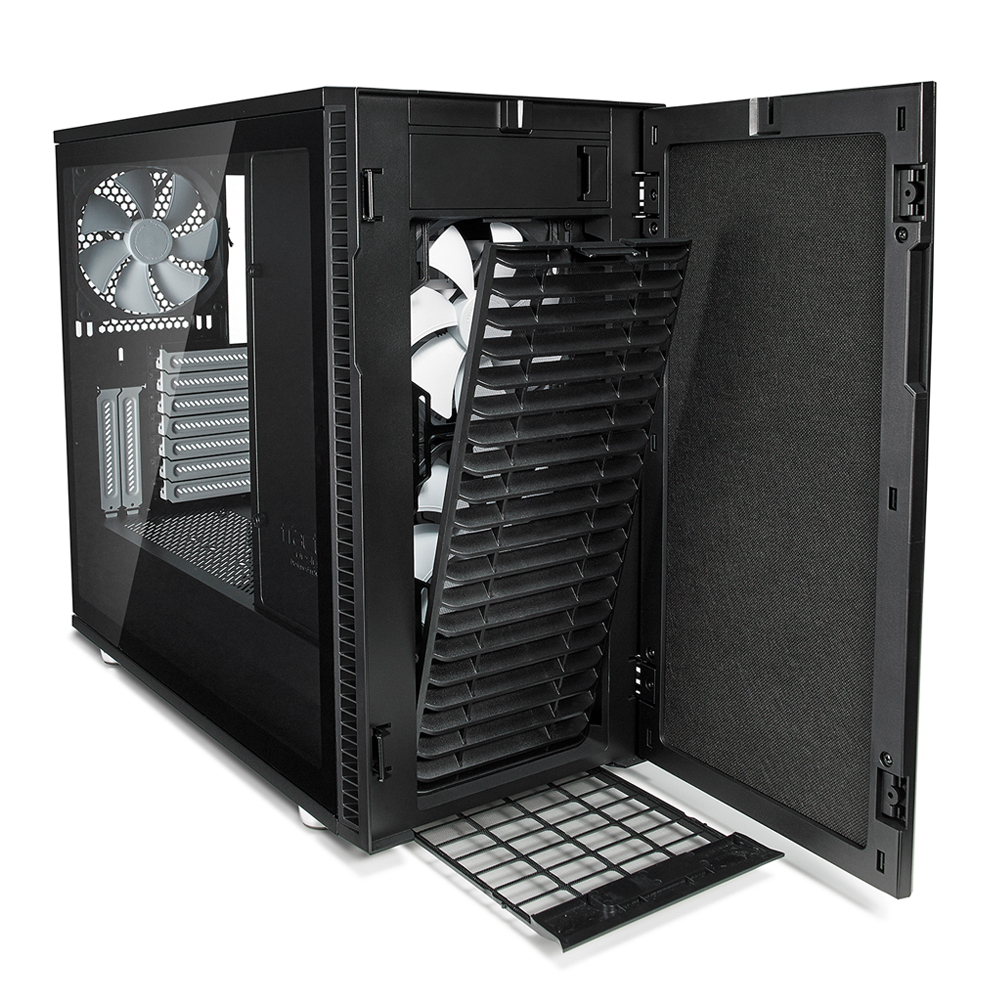

Fractal Design's Define R6 chassis is a generational upgrade to their quiet case series. It is classified as an ATX mid-tower and includes a reversible front door, noise dampening padding on the front and side panels, and filters over the front and bottom air intakes.

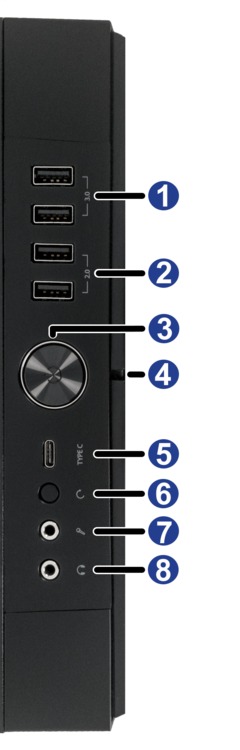

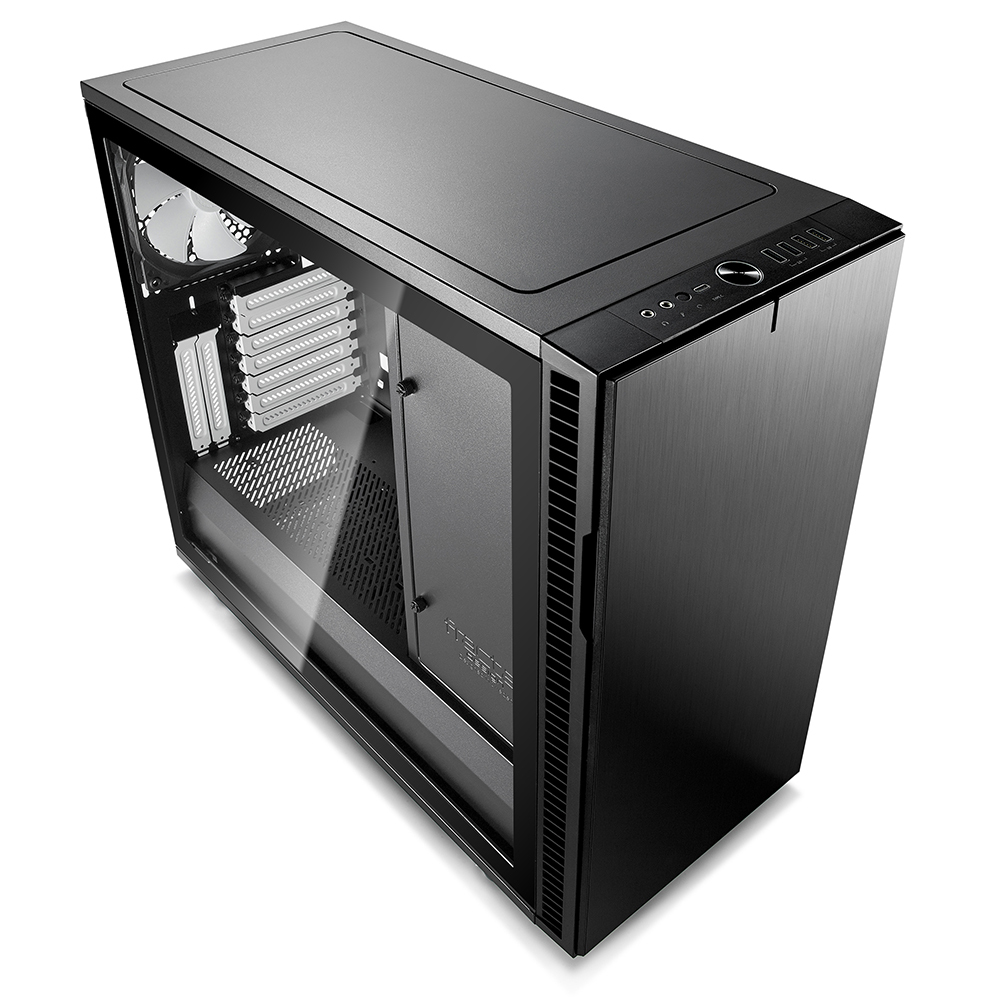

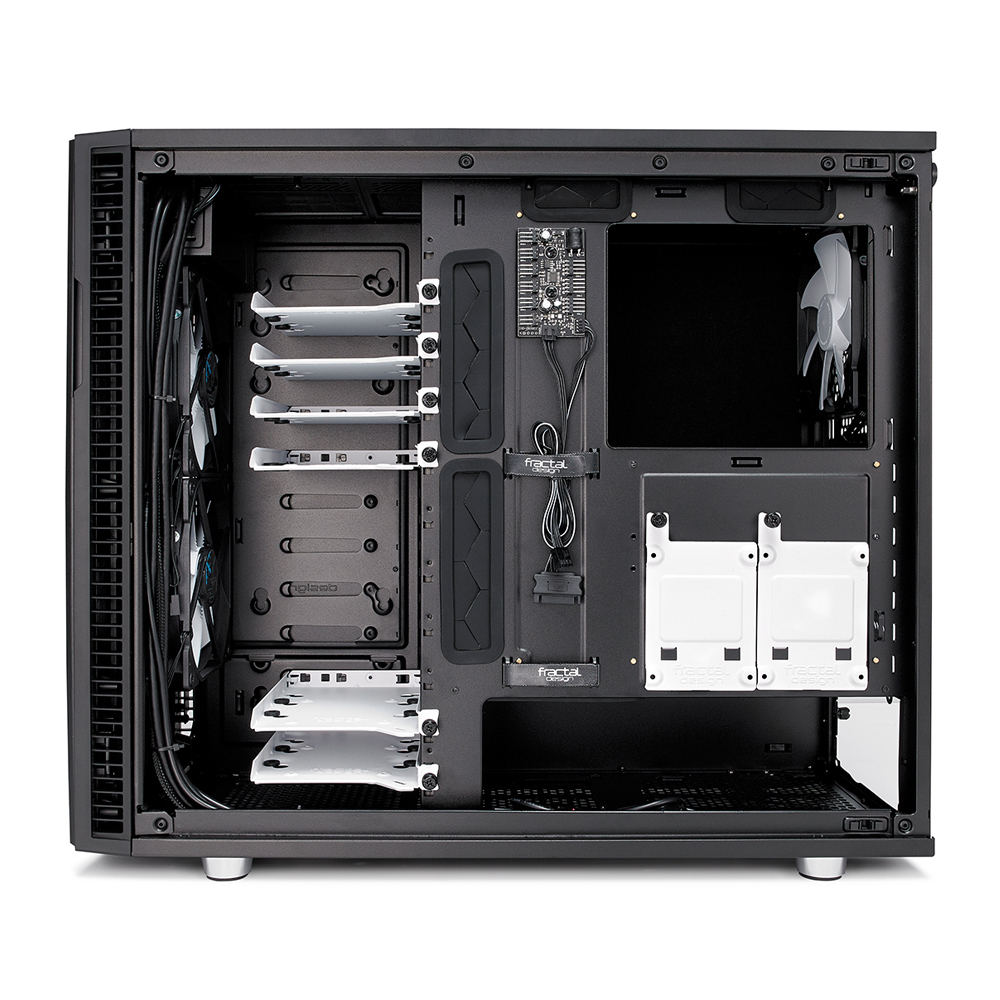

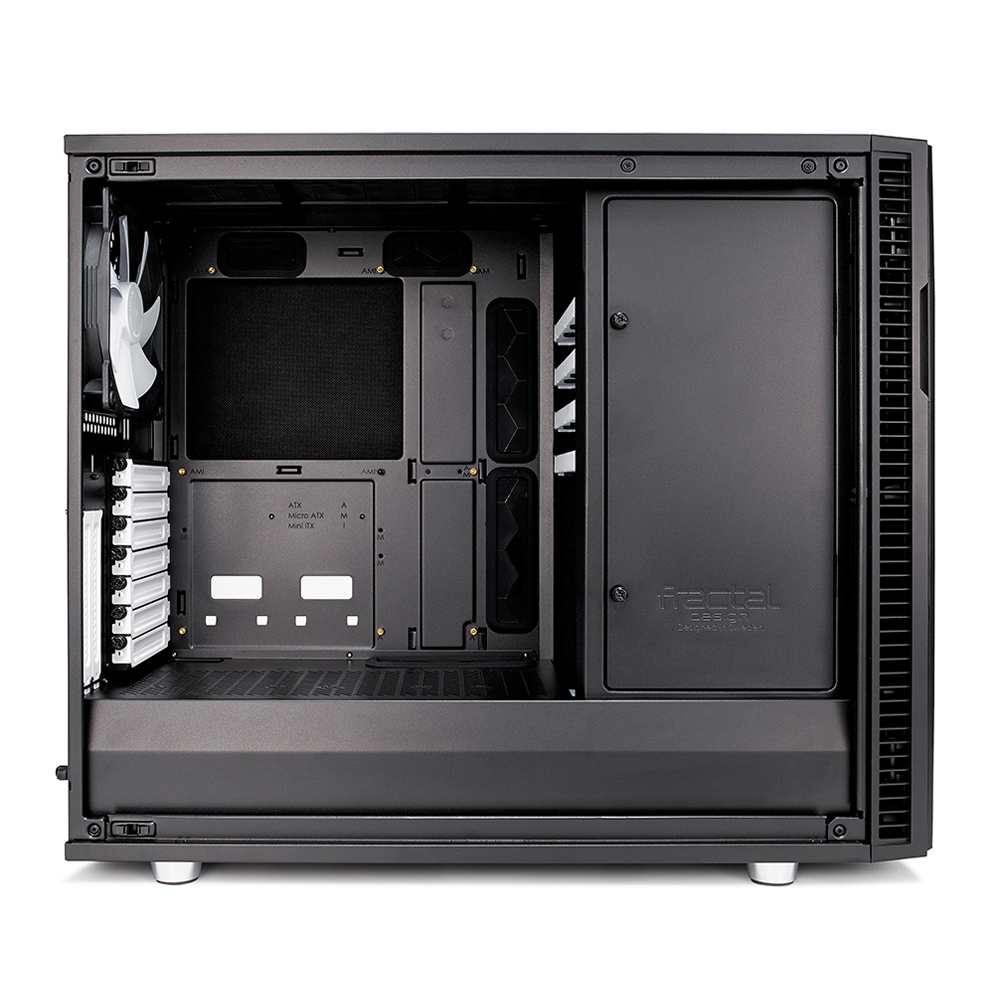

Like its predecessors, the Define R6 has a flexible design layout. There is support for one 5.25-inch front drive, six 2.5- or 3.5-inch internal drives, and two additional 2.5-inch drives. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include one USB-C, two each of USB 2.0 & 3.0 ports, and both headphone and mic plugs.

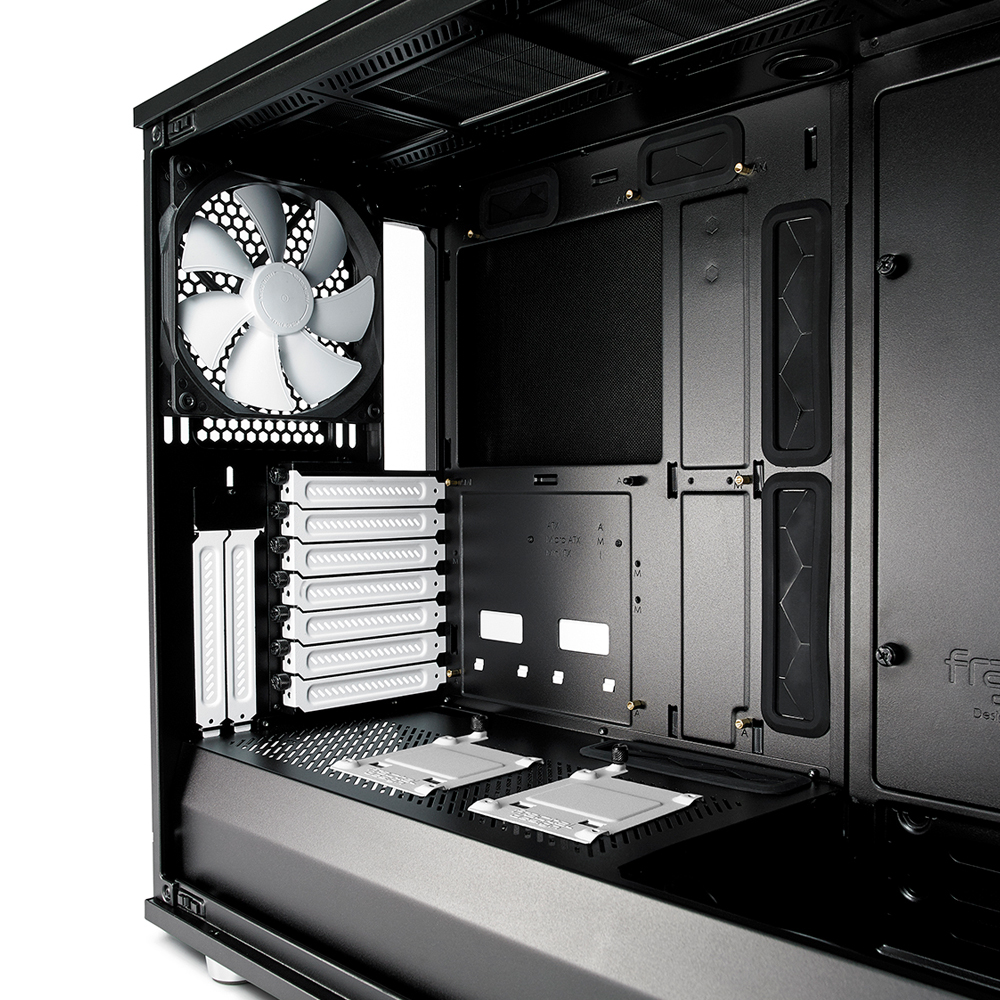

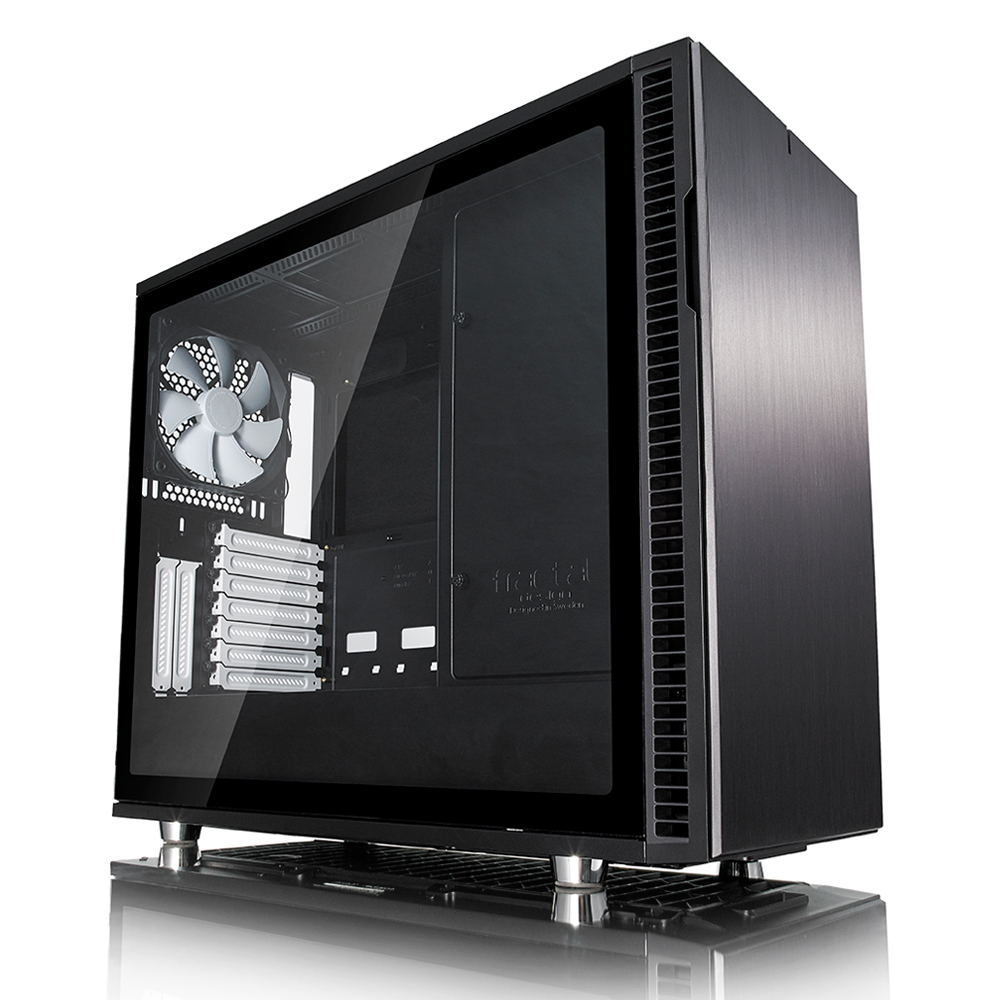

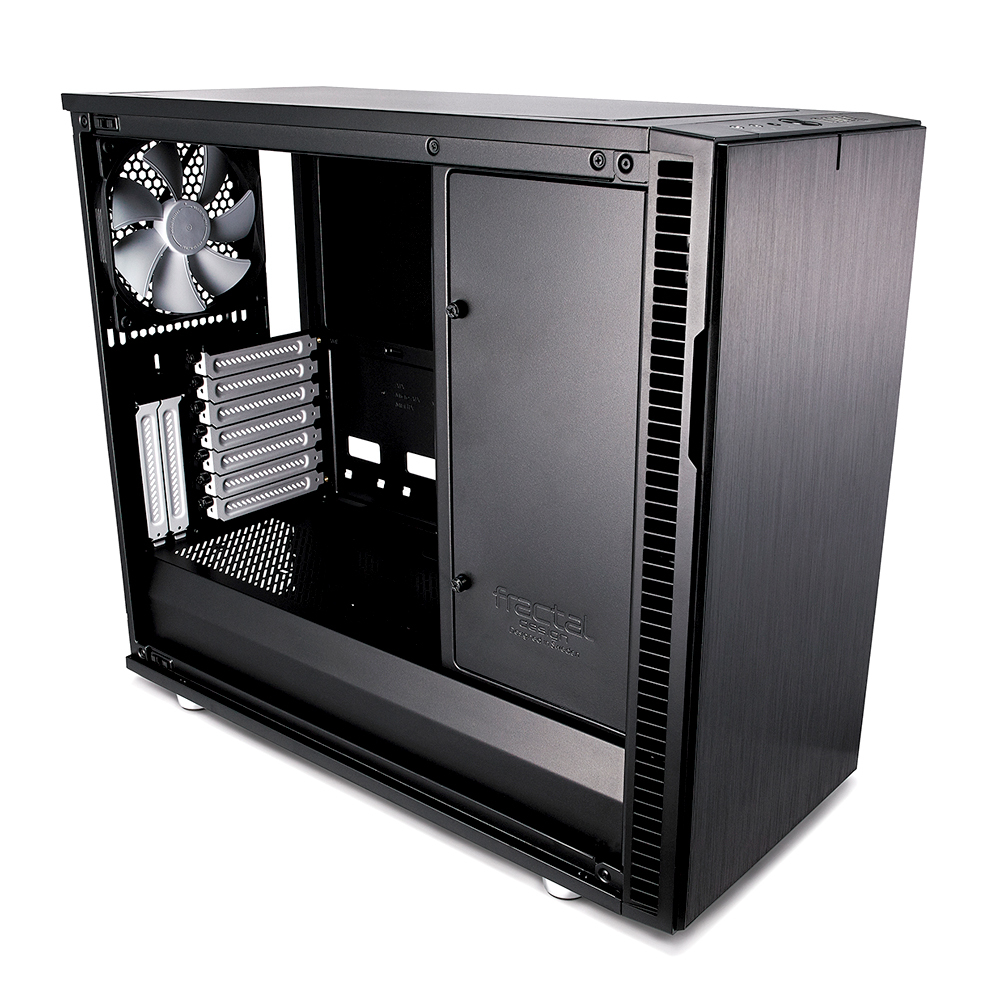

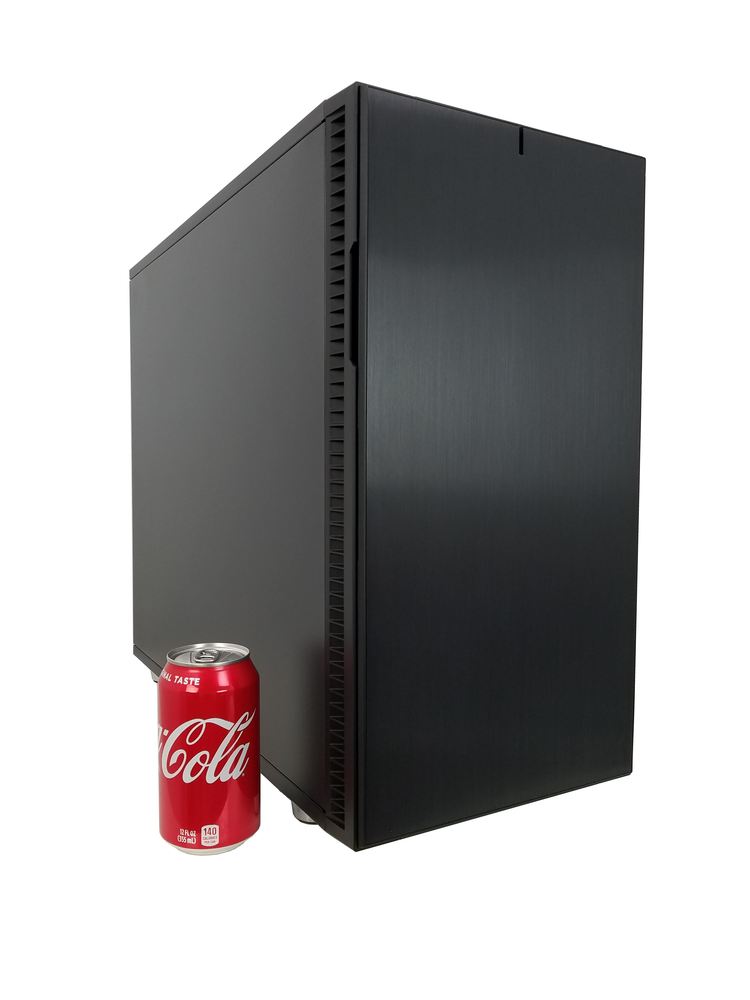

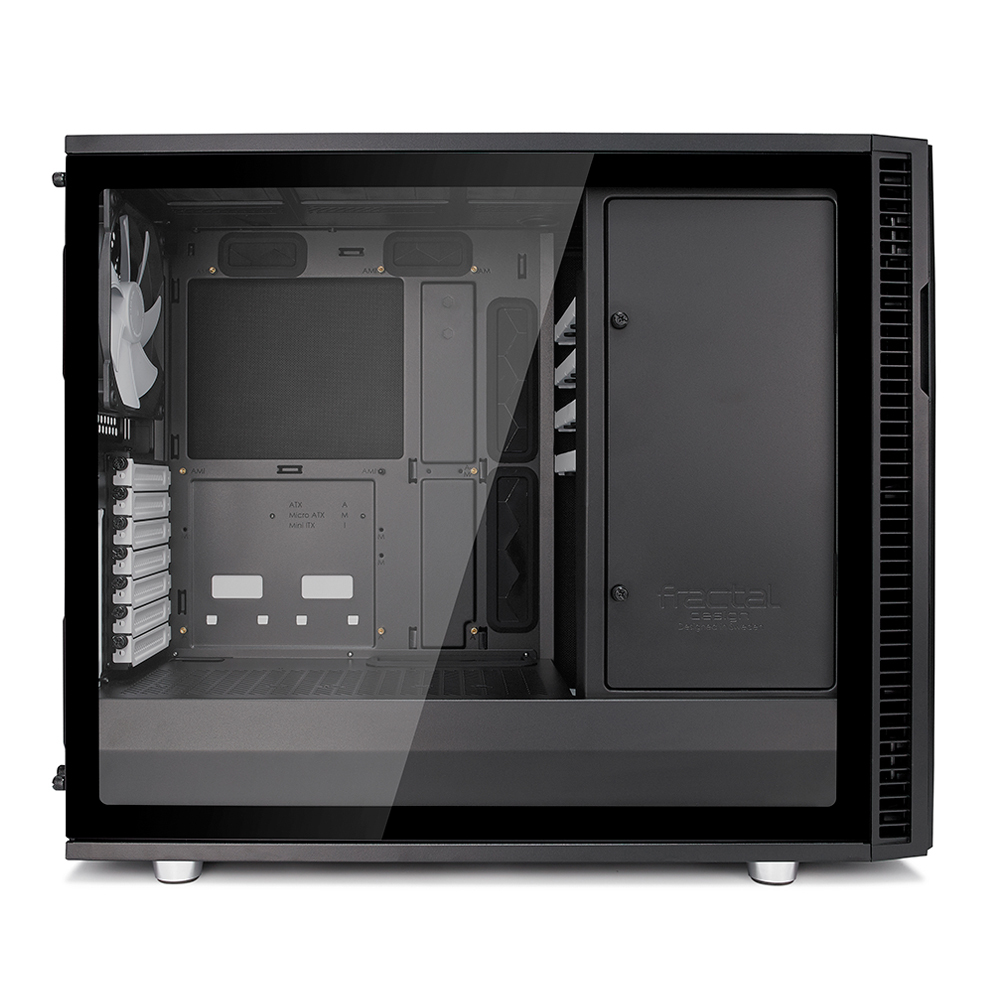

This particular version is 'Black' in color. The entire exterior is black, with some white accents internally (drive bays, expansion slot covers, and fan blades). You can see a lot of the accent pieces through the side window.

Note: Dimensions: 18.3" H x 9.2" W x 21.4" D

Model: Fractal Design FD-CA-DEF-R6C-BK-TGL

Specifications:
spacer
Color  Black
Material  Aluminum and plastic front panel, steel frame
Type/Size  Mid Tower
Maximum Motherboard Size  ATX
Case Window  Yes
Dimensions
Height  465 mm (18.3 in)
Width  233 mm (9.2 in)
Depth  543 mm (21.4 in)
Net Weight  12.4 kg (27.3 lbs)
Maximum CPU Cooler Height  185 mm
Maximum GPU Length  440 mm
Maximum PSU Length  300 mm
Drive Bays
External 5.25 inch  1
External 3.5 inch  0
Internal 2.5 inch  2
Internal 2.5/3.5 inch  6
Front Panel Connectors
USB 2.0  2
USB 3.0  2
Audio In  1
Audio Out  1
USB-C  1
Cooling System
Cooling Method  Air
Included Fans  3 Fractal GP-14 140mm 3-pin fans
Additional Fans Possible  6

Warranty:

2 Years
